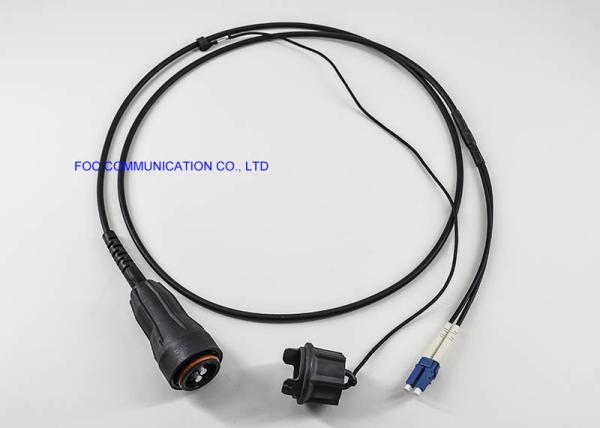

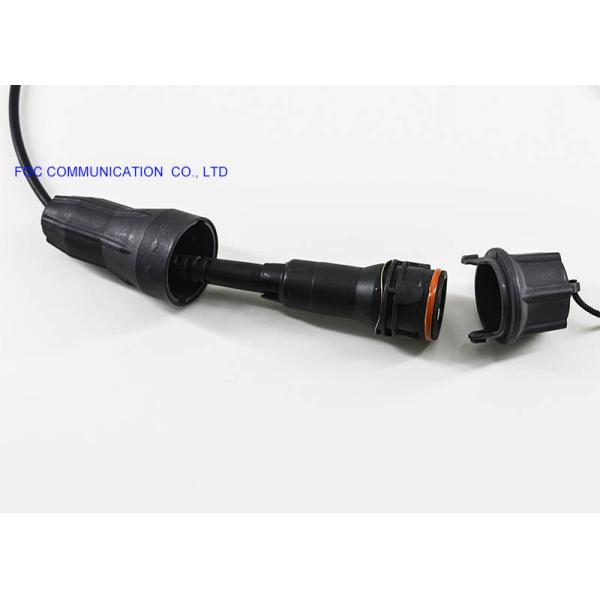

Water Proof Multimode Fiber Optic Cable Fullaxs To LC Duplex Jumper For FTTH
Water Proof Multimode Fiber Optic Cable Fullaxs To LC Duplex Jumper For FTTH
Water Proof Multimode Fiber Optic Cable Fullaxs To LC Duplex Jumper For FTTH
Water Proof Multimode Fiber Optic Cable Fullaxs To LC Duplex Jumper For FTTH
Specifications
Brand Name :
FOCABLE
Model Number :
FULLAXS/LC-FULLAXS/LC Patch Cord 2 core
Certification :
RoHS Compliant, SGS Certificate, ISO Certificate
Place of Origin :
China
MOQ :
10PCS
Delivery Time :
3-5days
Packaging Details :
1PCS/PE Bag
Fiber Type :
G.652D, G.657A, G.655, SM or MM
Cable Material :
PVC, LSZH, OFNP, OFNR, TPU
Cable Diameter :
0.9mm
Connector :
SC/APC, SC/UPC, LC/APC, LC/UPC, MPO
Cores :
12 core
Length :
1M, 2M, 3M, 5M or as per customer request
Armored :
Non-armored, armored
Quality Control :
100% test before shipping
Description

FullAXS Connectors & Patch Cords Fullaxs to LC duplex Jumper For FTTH Use

FTTA (Fiber To The Antenna) Optical Patch Cord, FullAXS-LC/UPC, 2 Cores, 9/125 OS2, TPU Jacket, 3M

FTTA (Fiber To The Antenna) FullAXS patch cord is designed to accommodate for a large tolerance in Z-direction and offer the benefit of one-hand installation of the connector shell. With this new product offering, users can also conveniently remove and replace transceivers through a cutout in the bulkhead that completely eliminates the need to open the entire remote radio box and expose its contents to hazardous weather conditions. For the optical connection, the connector system includes an industry-standard duplex LC interface for fast mating with all LC duplex SFP transceivers.

Parameters:

  • Insertion loss: ≤0.3dB
  • Repeatable: ≤0.2dB
  • Mechanical life: 500 cycles
  • Core number: 2 cores
  • Working temperature: -40 ~ +70℃
  • Storage temperature: -40 ~ +70℃
  • Operating temperature: -10 ~ +50℃
  • Protection level: IP67
  • Tensile data: Between junction and fiber cable ≥ 180N
  • Outer shell inflaming retarding: UL 94V-0
  • RoHS compliant

Features:

  • Fiber Cable: OS2 Single Mode GYFJH, 5.0mm, 2 Cores, TPU Jacket, Black
  • Open bulkhead for easier access to SFP
  • Positive mechanical feedback to operator when fully mated
  • Robust bayonet locking for easy, fast and secure mating
  • Available for singlemode and multimode
  • Water proof, dust proof and corrosion resistant

Applications:

  • WiMAX and LTE Base Stations
  • Remote radio heads (RRH)
  • Industrial outdoor applications
  • Aerospace & defense

Technical Data

Connector

 End A Fullaxs (duplex LC)
End B Fullaxs (duplex LC), or SC, MPO, MTP
Fiber Core 2
Mode Singlemode Multimode
Operating Wavelength(nm) 1310/1550 850/1310
Polishment UPC APC UPC
Insertion Loss(Max.dB) 0.2 0.3
Return Loss(Min.dB) 55 60 35
Mating times 500 Min
Durability(Max.dB) 0.2
Reaptability(Max.dB) 0.5
Operating Temperature(℃) -40~+85
Storage Temperature(℃) -40~+85

Water Proof Multimode Fiber Optic Cable Fullaxs To LC Duplex Jumper For FTTH


Fiber Optic Patch Cord, Optical Fiber Patch Cord, Fiber Optic Assemblies, Fiber Jumpers
