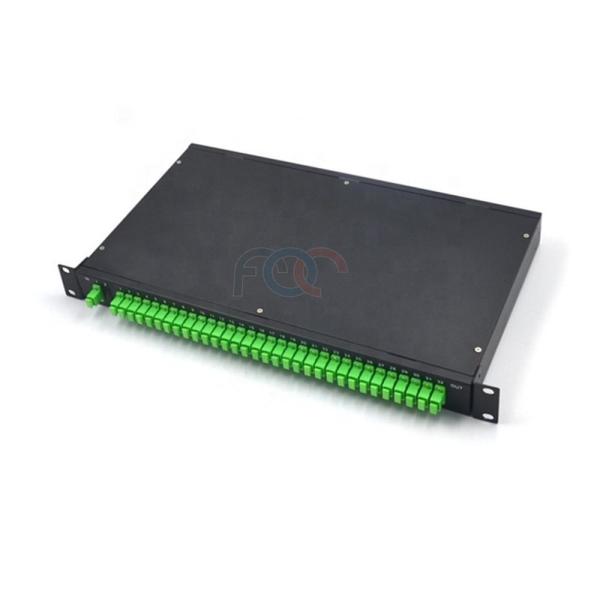

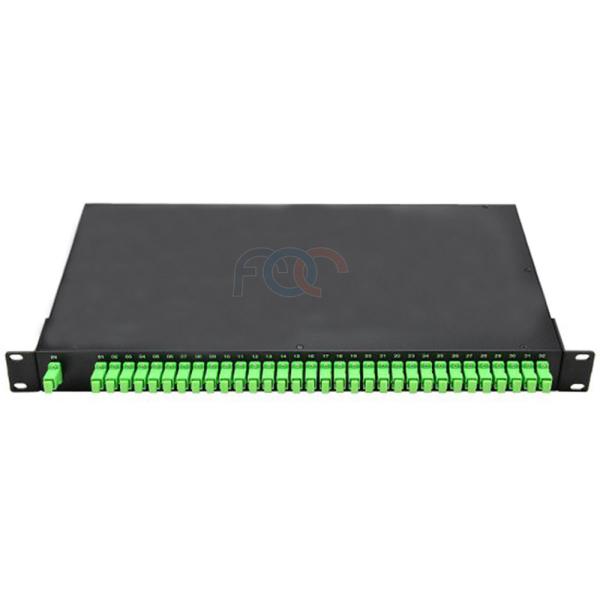

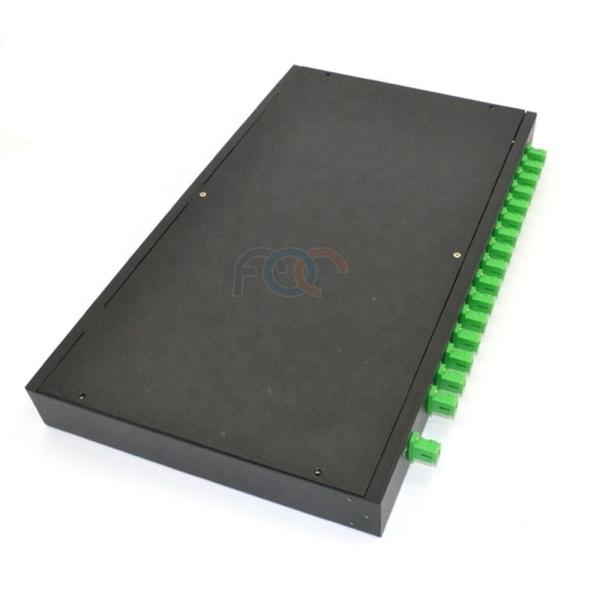

CATV LAN LSZH Fiber PLC Splitter Patch Panel SC APC Rack Mount
CATV LAN LSZH Fiber PLC Splitter Patch Panel SC APC Rack Mount
CATV LAN LSZH Fiber PLC Splitter Patch Panel SC APC Rack Mount
CATV LAN LSZH Fiber PLC Splitter Patch Panel SC APC Rack Mount
CATV LAN LSZH Fiber PLC Splitter Patch Panel SC APC Rack Mount
CATV LAN LSZH Fiber PLC Splitter Patch Panel SC APC Rack Mount
Specifications
Brand Name :
FOCABLE
Model Number :
Rack Mount 1*32 PLC Splitter Patch Panel
Certification :
ISO Certification and RoHS Compliant
Place of Origin :
China
MOQ :
10PCS
Payment Terms :
Western Union, T/T
Supply Ability :
90000PCS/MONTH
Packaging Details :
1pcs/carton box
Fiber Type :
G.657A
Cable Material :
LSZH
Tube :
bare fiber, 0.9mm, 2.0mm, 3.0mm
Connector Type :
SC/UPC, SC/APC, FC/UPC, FC/APC, LC/UPC, LC/APC
Port :
1*2, 2*2, 1*4, 2*4, 1*8, 2*8, 1*16, 2*16, 1*32, 2*32, 1*64, 2*64
Pigtail Length :
0.5M, 1.0M, 1.5M
Description

Rack Mount Fiber PLC Splitter Patch Panel SC / APC With 1pcs of 1 * 32 Splitter

PLC (Planar Lightwave Circuit) splitters are used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.

Rack Mount PLC Splitter is the splitter which is packed in the rack mount fiber optic patch panel. It storages the additional cable, dustproof and it is easy to mount and mainteinance.


1xN PLC splitters are precision aligning process to divide a single optical input(s) into multiple optical outputs uniformly,while 2xN PLC splitters divide a dual optical input(s) into multiple optical outputs. Our PLC splitters offer superior optical performance, high stability and high reliability to meet various application requirements.

This PLC type allows to be equipped in 19'' standard integrated distribution cabinet or network cabinet with opening rack. PLC (Planar Lightwave Circuit) splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.

Features

Low Insertion loss
Low PDL
High Return Loss
Uniform Power Splitting
Compact Design
Wide Operating Wavelength
Wide Operating Temperature
Excellent Environmental & Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209

Applications

Central office/headend
Network monitoring and testing
Passive Optical Networks
CATV, LAN, WAN
Test Instrument


Optical Specifications

Parameter

Unit

Specification (P Grade)

Channel Number

1X2

1X4

1X8

1X16

1X32

1X64

Operation Wavelength

nm

1260～1650

Insertion Loss (Max.)

dB

4.3

7.4

10.7

13.9

17.2

21.5

Uniformity (Max.)

dB

0.5

0.8

1.0

1.4

1.6

2.0

Polarization Dependent Loss

dB

0.2

0.3

0.3

0.3

0.3

0.5

Return Loss

dB

≥50

Directivity

dB

≥50

Operating Temperature

℃

-40～+85

Storage Temperature

℃

-40～+85

Parameter

Unit

Specification (P Grade)

Channel Number

2X2

2X4

2X8

2X16

2X32

2X64

Operation Wavelength

nm

1260～1650

Insertion Loss (Max.)

dB

4.3

7.6

11.0

14.8

17.9

21.5

Uniformity (Max.)

dB

0.8

1.0

1.2

1.5

1.8

2.0

Polarization Dependent Loss

dB

0.2

0.3

0.3

0.3

0.3

0.5

Return Loss

dB

≥50

Directivity

dB

≥50

Operating Temperature

℃

-40～+85

Storage Temperature

℃

-40～+85

Note: All the data above does not include connectors.

Ordering Information

PLC

Port

Fiber Type

Input

Output

Pigtail Length

Connector





PLC

0102=1x2
0104=1x4
0108=1x8
0116=1x16
0132=1x32
0164=1x64
0204=2x4
0208=2x8
0216=2x16
0232=2x32
0264=2x64

1=G652D, 2=G657A

L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter

L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter

05-20=0.5--2.0m, 0=Adapter, X=Others

FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others


CATV LAN LSZH Fiber PLC Splitter Patch Panel SC APC Rack Mount

We can produce many serials of PLC splitters including:
1X2, 1X4, 1X8, 1X16, 1X32, 1X64, 2X4, 2X8, 2X16, 2X32, 2X64 with following package
Bare fiber series
Mini loose tube package
ABS Module type
LGX box type
Rack Mount patch panel for PON application.
Wall Mount patch panel for PON application
Inline fiber optic splice closure type
Erect fiber optic splice closure type
