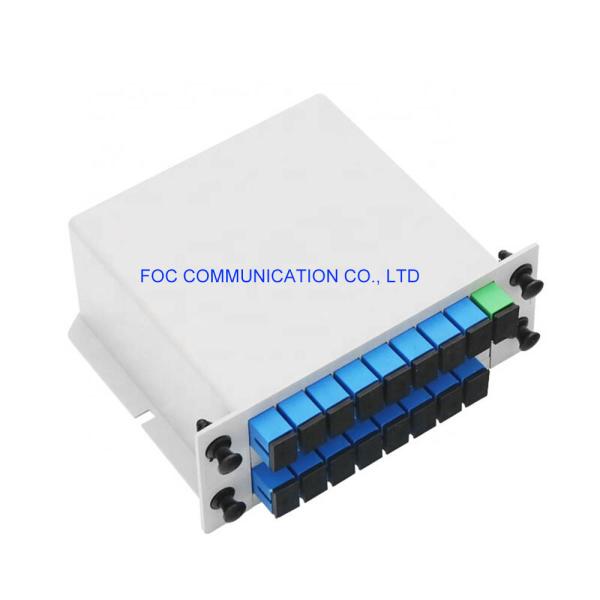

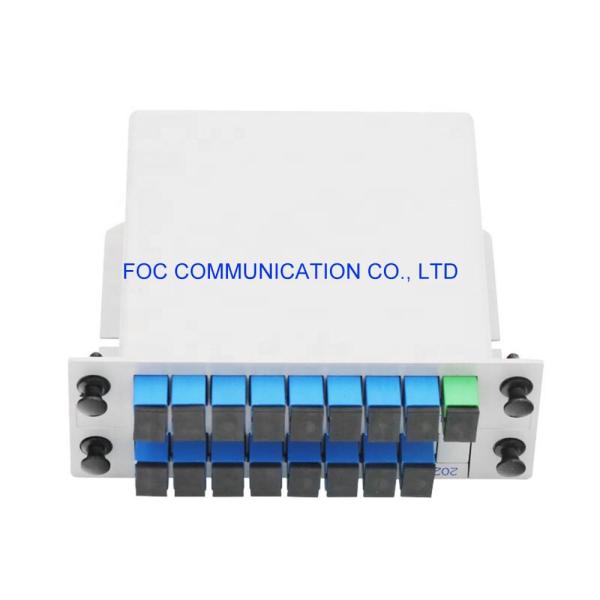

SC UPC 1650nm Optical Fiber PLC Splitter 1×16 1.5dB Uniformity
SC UPC 1650nm Optical Fiber PLC Splitter 1×16 1.5dB Uniformity
SC UPC 1650nm Optical Fiber PLC Splitter 1×16 1.5dB Uniformity
SC UPC 1650nm Optical Fiber PLC Splitter 1×16 1.5dB Uniformity
SC UPC 1650nm Optical Fiber PLC Splitter 1×16 1.5dB Uniformity
SC UPC 1650nm Optical Fiber PLC Splitter 1×16 1.5dB Uniformity
Specifications
Brand Name :
FOCABLE
Model Number :
1×16 PLC Splitter Cassette Type
Certification :
ISO Certification and RoHS Compliant
Place of Origin :
China
MOQ :
10PCS
Payment Terms :
Western Union, T/T
Supply Ability :
90000PCS/MONTH
Packaging Details :
1pcs/carton box
Port :
1*16 PLC Splitter
Package :
Cassette type PLC Splitter
Connector :
SC/UPC
Wavelength :
1260-1650nm
Fiber type :
Single Mode
Type :
splitter,rackmount type
Description

Optical Fiber PLC Splitter Cassette Box SC / UPC , 1×16 High Reliability

Planar Light wave Circuit (PLC) Splitter features guaranteed performance specifications and high reliability that surpass Telcordia requirements and is tailored for different applications and markets.
Cassette type: installed in 19 inch standard rack; in fiber branch home, installation device is provided in the optical fiber cable transfer box; branch home, installed customer specified equipment.

Features

1x4, 1x8, 1x16, 1x32 and 1x64 configurations available

2x4, 2x8, 2x16, 2x32 configurations available

Telcordia GR-1209 & GR-1221 qualified

Low insertion loss, PDL, Back Reflection

High uniformity

Compact package

Applications

PON- FTTX Networks

CATV

Outside Plant Equipments

DWDM and CWDM systems

Optical Specifications

Parameter Unit Specification (P Grade)
Channel Number 1X2 1X4 1X8 1X16 1X32 1X64
Operation Wavelength nm 1260～1650
Insertion Loss (Max.) dB 4.3 7.4 10.7 13.9 17.2 21.5
Uniformity (Max.) dB 0.5 0.8 1.0 1.4 1.6 2.0
Polarization Dependent Loss dB 0.2 0.3 0.3 0.3 0.3 0.5
Return Loss dB ≥50
Directivity dB ≥50
Operating Temperature ℃ -40～+85
Storage Temperature ℃ -40～+85

Parameter Unit Specification (P Grade)
Channel Number 2X2 2X4 2X8 2X16 2X32 2X64
Operation Wavelength nm 1260～1650
Insertion Loss (Max.) dB 4.3 7.6 11.0 14.8 17.9 21.5
Uniformity (Max.) dB 0.8 1.0 1.2 1.5 1.8 2.0
Polarization Dependent Loss dB 0.2 0.3 0.3 0.3 0.3 0.5
Return Loss dB ≥50
Directivity dB ≥50
Operating Temperature ℃ -40～+85
Storage Temperature ℃ -40～+85

Note: All the data above does not include connectors.
SC UPC 1650nm Optical Fiber PLC Splitter 1×16 1.5dB Uniformity
Ordering Information

PLC

Port

Fiber Type

Input

Output

Pigtail Length

Connector





PLC

0102=1x2
0104=1x4
0108=1x8
0116=1x16
0132=1x32
0164=1x64
0204=2x4
0208=2x8
0216=2x16
0232=2x32
0264=2x64

1=G652D, 2=G657A

L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter

L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter

05-20=0.5-2.0m, 0=Adapter, X=Others

FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others
