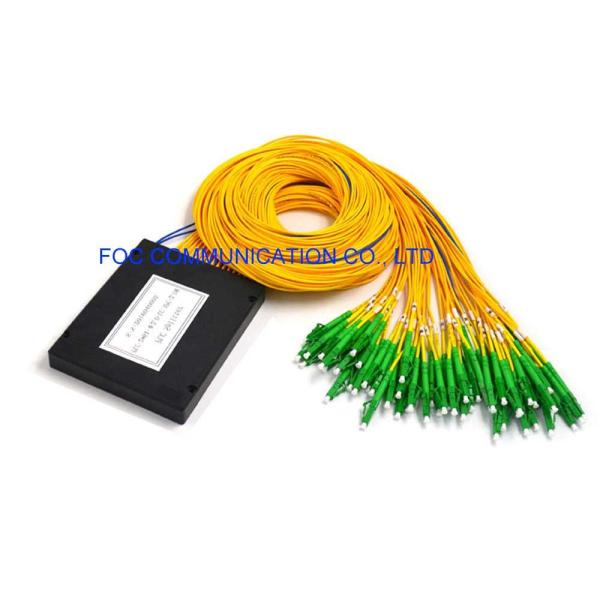

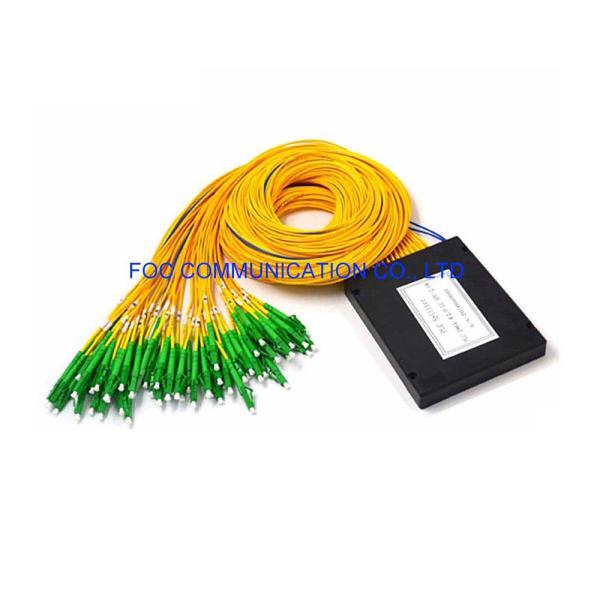

2×64 ABS Fiber PLC Splitter LC APC 1650nm FTTC For Passive Optical Networks
2×64 ABS Fiber PLC Splitter LC APC 1650nm FTTC For Passive Optical Networks
2×64 ABS Fiber PLC Splitter LC APC 1650nm FTTC For Passive Optical Networks
2×64 ABS Fiber PLC Splitter LC APC 1650nm FTTC For Passive Optical Networks
Specifications
Brand Name :
FOCABLE
Model Number :
2 × 64 PLC Splitter Module with LC Connectors
Certification :
ISO Certification and RoHS Compliant
Place of Origin :
China
MOQ :
10PCS
Payment Terms :
Western Union, T/T
Supply Ability :
90000PCS/MONTH
Packaging Details :
1pcs/blister box
Fiber Type :
G.657A
Cable Type :
LSZH jacket
Fiber Tube :
0.9mm tube
Connector Type :
LC/APC
Port :
2*64
Operating Wavelength :
1260-1650nm
Description

Fiber PLC Splitter 2 × 64 ABS Module LC/APC Compact Design for Passive Optical Networks
Planar lightwave circuit splitter (PLC Splitter) is a kind of integrated waveguide optical power distribution device based on quartz substrate. It has the advantages of small volume, wide bandwidth, high reliability, excellent uniformity. Optical fiber splitter is especially suitable for passive optical networks (EPON, BPON, GPON) which is connected with the terminal equipment and realize the optical power distribution.

FOC COMMUNICATION CO., LTD provides 1*N and 2*N fiber optic splitters. And these PLC splitters can be made as per customer request.

Features

Low Insertion loss
Low PDL
High Return Loss
Uniform Power Splitting
Compact Design
Wide Operating Wavelength
Wide Operating Temperature
Excellent Environmental and Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209

Applications

FTTX (FTTP, FTTH, FTTN, FTTC)
Passive Optical Networks (PON)
Local Area Networks (LAN)
CATV Systems
Optical Signal Distribution
Test Equipments


Optical Specifications

Parameter

Unit

Specification (P Grade)

Channel Number

2X2

2X4

2X8

2X16

2X32

2X64

Operation Wavelength

nm

1260～1650

Insertion Loss (Max.)

dB

4.3

7.6

11.0

14.8

17.9

21.5

Uniformity (Max.)

dB

0.8

1.0

1.2

1.5

1.8

2.0

Polarization Dependent Loss

dB

0.2

0.3

0.3

0.3

0.3

0.5

Return Loss

dB

≥50

Directivity

dB

≥50

Operating Temperature

℃

-40～+85

Storage Temperature

℃

-40～+85

Note: All the data above does not include connectors.

Ordering Information

PLC

Port

Fiber Type

Input

Output

Pigtail Length

Connector





PLC

0102=1x2
0104=1x4
0108=1x8
0116=1x16
0132=1x32
0164=1x64
0204=2x4
0208=2x8
0216=2x16
0232=2x32
0264=2x64

1=G652D, 2=G657A

L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter

L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter

05-20=0.5--2.0m, 0=Adapter, X=Others

FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others

We can produce many serials of PLC splitters including
1X2, 1X4, 1X8, 1X16, 1X32, 1X64, 2X4, 2X8, 2X16, 2X32, 2X64 with following package
Bare Fiber PLC Splitter
Blockless Fiber Optic PLC Splitter
ABS Module Fiber Optical PLC Splitter
LGX Box Optical PLC Splitter

Cassette Box PLC Splitter

Pallet Type PLC Splitter
Rack Mount Optical Fiber PLC Splitter for PON application
Wall Mount PLC Splitters

2×64 ABS Fiber PLC Splitter LC APC 1650nm FTTC For Passive Optical Networks 2×64 ABS Fiber PLC Splitter LC APC 1650nm FTTC For Passive Optical Networks

Advantages

1. Guaranteed high quality products

2. Fast delivery speed

3. Safety Shipping

4. Quick Response within 24hours

We deliver products and we deliver efficient service for you!
