10/100M 5 Port PoE Fiber Switch With 4x10/100M RJ45 And 1x155M Uplink SC Port
10/100M 5 Port PoE Fiber Switch With 4x10/100M RJ45 And 1x155M Uplink SC Port
Specifications
Brand Name :
AEO
Certification :
CE, FCC
Place of Origin :
China
MOQ :
1 piece
Price :
negotiation
Payment Terms :
T/T, L/C
Supply Ability :
10000 pcs/month
Delivery Time :
3-4 working days
Packaging Details :
package and carton
Switching Capacity :
1.6Gbps (Non-blocking)
Forwarding Rate@64byte :
0.74Mpps
MAC :
1K
Buffer Memory :
768K
Jumbo Frame :
1632bytes
Power Consumption :
<6W
Description

10/100M 5-port PoE Fiber Switch with 4*10/100M RJ45 and 1*155M Uplink SC Port

Technical Parameter

Interface Characteristics
Fixed Port

4*10/100Base-TX bt PoE ports (Data /Power)

1*155M uplink SC port (Data)
Ethernet Port Port 1-4 can support 10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP(≤100 meters)

100BASE-TX: Cat5 or later UTP(≤100 meters)
Fiber Port Feature The default optical module is single-mode dual fiber 20km, SC port
Optical Cable / Distance

Multi-mode: 850nm/ 0-500M, 1310nm/ 0-2KM,

Single-mode: 1310nm/ 0-40KM, 1550nm/ 0-120KM.
Chip Parameter
Network Protocol

IEEE802.3 10BASE-T, IEEE802.3i 10Base-T

IEEE802.3u 100Base-TX, IEEE802.3u 100Base-FX, IEEE802.3x
Forwarding Mode Store and Forward(Full Wire Speed)
Switching Capacity 1.6Gbps (Non-blocking)

Forwarding

Rate@64byte

 0.74Mpps
MAC 1K
Buffer Memory 768K
Jumbo Frame 1632bytes
LED Indicator Power: PWR (Green), Network: Link (Yellow), PoE: PoE (Green), Fiber port: 5 (Green)
PoE & Power Supply
PoE Port Port 1 to 4 IEEE802.3af/at/bt PoE standard
Power Supply Pin 1/2 (+)3/6 (-), 4/5 (+)7/8 (-)
Max Power Per Port 90W, IEEE802.3af/at/bt
Total PWR / Input Voltage 250W / (DC48-57V)
Power Consumption Standby<6W, Full Load<240W
Input Voltage / Interface DC48-57V/ DC5521 power supply terminal connected
Power Supply External power adapter, AC100~240V 50-60Hz 4.1A
Physical Parameter
Operation TEMP / Humidity -20~+55°C, 5%~90% RH Non condensing
Storage TEMP / Humidity -40~+75°C, 5%~95% RH Non condensing
Dimension (L*W*H) 118*95*28mm
Net /Gross Weight <0.4kg /<1.2kg
Installation Desktop, Wall-mounted

Product Introduction

10/100M unmanaged bt PoE fiber switch has 4*10/100Base-TX RJ45 ports and 1*155M uplink SC port. Port 1-4 can support 71W PoE super high power output and backward compatible with the IEEE802.3af/at/bt PoE standard. Single-port PoE power output is 90W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable.


Product Features

10/100Mbps fast Ethernet access, SC fiber port uplink

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.

◇ 4*10/100Base-TX RJ45 ports and uplink SC fiber port for easy long distance transmission, which facilitates flexible networking and meets network requirements for various scenarios.

Smart PoE power supply function

◇ 4*10/100Base-TX RJ45 ports can support bt PoE power supply, meeting the demand for super high power PoE power supply in various scenarios.

◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.

◇ The maximum output power of single-port POE is 90W, and the backwards compatibility IEEE802.3af/at PoE power supply standard automatically identifies PoE devices for power supply without damaging non-PoE devices.

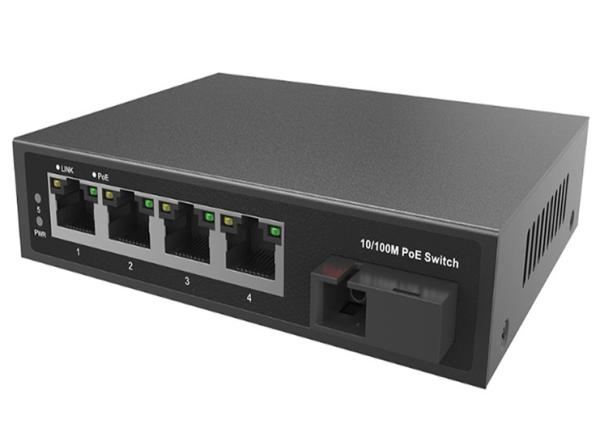

Product picture

10/100M 5 Port PoE Fiber Switch With 4x10/100M RJ45 And 1x155M Uplink SC Port
Packaging & Shipping

● All of our package are international standard package

● We will deliver our products as soon as the order confirmed

10/100M 5 Port PoE Fiber Switch With 4x10/100M RJ45 And 1x155M Uplink SC Port
