14.89Mpps L2 Ethernet Fiber Switch With 2 1000 SFP Ports 8 1000 Ethernet Ports
14.89Mpps L2 Ethernet Fiber Switch With 2 1000 SFP Ports 8 1000 Ethernet Ports
Specifications
Brand Name :
AEO
Certification :
CE, FCC
Place of Origin :
China
MOQ :
1 piece
Price :
negotiation
Payment Terms :
T/T, L/C
Supply Ability :
10000 pcs/month
Delivery Time :
3-4 working days
Packaging Details :
package and carton
Power Input :
DC12V
Switching capacity :
20Gbps
Jumbo Frame :
9kb
Pack forward rate :
14.89Mpps
MTBF :
100 000 HOURS
Operating Temperature :
-20~70℃
Description

8-port L2 Managed Fiber Switch with 2 1000 SFP Ports and 8 1000 Ethernet Ports
Technical Parameter

Service Ports

8 * 10/100/1000MBase-T ports;
2 * 1000Base-X SFP ports;
Management Port 1 Console
Cooling system Fanless
Switching Capacity 20 Gbps
Packet Forwarding Capacity 14.89Mpps
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9 KB
Operation Temperature -20~70°C
Storage Temperature -40~70°C
Operation Humidity 10%～90%(non-condensing)
Storage Humidity 5%～95%(non-condensing)
Dimensions 230(L)*154(W)*44(H)mm
Weight <1.5Kg
Input Voltage(AC) AC:110～240V/50～60Hz
Power Consumption <10W
Protocol and Standards IEEE 802.3, 10 Base-T Ethernet;
IEEE 802.3u,100 BASE-TX;
IEEE 802.3ab,1000 BASE-T;
IEEE 802.3z,1000 BASE-X;
IEEE 802.3az,EEE(Energy Efficient Ethernet);
MAC Address 8K MAC address
Support auto-update, two-way learning
VLAN Based Port VLAN
Up to 4096 VLAN
VLANs based on IEEE 802.1q
Spanning Tree STP Spanning Tree Protocol
RSTP Rapid Spanning Tree Protocol
Port Aggregation 8 aggregation groups,each containing up to 8 ports;
Port Mirroring Send and receive two-way port mirroring
Ring network protocol support
Support ring protection
Support for Downward Multiring
Port Isolation Downlink ports are isolated from each other and can communicate with uplink
Port stream control Half duplex based on backpressure control
Full duplex based on PAUSE frames
Port speed limit Port Based Input / Output Bandwidth Management
Multicast control IGMPv1/2/3 and MLDv1/2 Snooping
DHCP DHCP Snooping
Storm suppression Storm suppression for unknown Unicast, multicast, multicast, broadcast type
Storm suppression based on bandwidth regulation and storm filtering
Security features Based on Vlan, MAC binding
ACL Based on IP and MAC
Security limit on the number of MAC addresses based on ports
QOS 802.1 P Port Queue Priority Algorithm
Cos/Tos,QOS tags
WRR (Weighted Round Robin)
Ping Detection IPv4/IPv6 Ping Detection
Modalities for consultation Port automatic negotiation
System maintenance Detection of connectivity
Upgrade package upload
See System log
WEB factory configuration restored
Management WEB-based interface management
Telnet
CLI Management (Command Line Interface)
SNMP


Product Overview

8-port L2 Managed Fiber Switch is a full Gigabit management switch, which uses the unique optical port design of the industry, breaking through the limitations of traditional multiplexing ports; reliable switching engine, broadband telecommunication power supply design, fast and efficient loop protection function, escorting the stable operation of your network; international "EEE" environmental protection and energy saving Standard design, effectively saving electricity and money for users. This series of products provide users with brand-new technical characteristics and solutions in the aspects of security, reliability, multi-service integration, easy management and maintenance. It is the ideal convergence of office network, service network and resident network, access switch and the core switch of small and medium-sized enterprises and branches.

Features
*8x 10/100/1000 Base-T ports
*2x 1000 Base-X SFP ports
*8K MAC address, 4.1Mbit packet buffer
*VLAN, QoS, ACL, Spanning tree, DHCP/IGMP snooping
*CLI ,SNMP, WEB management
*supports loop detection, anti loop design

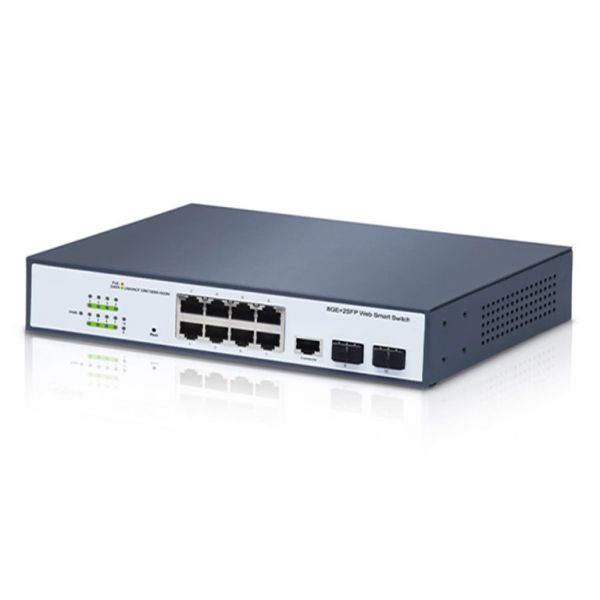

Product picture

14.89Mpps L2 Ethernet Fiber Switch With 2 1000 SFP Ports 8 1000 Ethernet Ports

Packaging & Shipping

● All of our package are international standard package
● We will deliver our products as soon as the order confirmed

14.89Mpps L2 Ethernet Fiber Switch With 2 1000 SFP Ports 8 1000 Ethernet Ports
