4 Port 1000M 802.3at PoE 1 Port 100M or 1000M SFP Ethernet Switch 12V to 48V
4 Port 1000M 802.3at PoE 1 Port 100M or 1000M SFP Ethernet Switch 12V to 48V
Specifications
Brand Name :
AEO
Certification :
CE, FCC, ROHS
Place of Origin :
China
MOQ :
1 piece
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
10000 pcs/month
Delivery Time :
5-8 working days
Packaging Details :
package and carton
Packet Buffer: :
1Mbits
Packet Length :
10Kbytes
MAC Address Table :
8K
Working temperature :
-40°～ 80°C
Working humidity :
10%～90%，non-condensing
MTBF :
100000 hours
Description

Industrial 4 Port 1000M 802.3at PoE + 1 Port 100M or 1000M SFP Ethernet Switch with 12V to 48V DC Input

Technical Parameters

Ethernet
Standards: IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3at Power over Ethernet Plus PSE
IEEE 802.3af Power over Ethernet Plus
Forward & Filtering Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer: 1Mbits
Packet Length: 10Kbytes
MAC Address Table: 8K
Switch Fabric: 10Gbps/non-blocking
Exchange Property

Backplane bandwidth: 20Gbps;

Packet forwarding rate: 14.88Mpps
Connector: 4 ports with 802.3at PoE+ injector function (Ports 1 to 4)
Interface
Connector: 4 x RJ45
Optical Port: 1 x SFP 1000Base-X or 100Base-FX (auto detection)
PoE (Power over Ethernet)
Standard: IEEE802.3af/at
Port: RJ45
Power Pin Assignment 4/5(+), 7/8(-)
PoE Budget:

Up to 120-watt PoE budget (48VDC),

90-watt PoE budget (24VDC),

60-watt PoE budget (12VDC)
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 100,000 hrs
Electrical and Mechanical
Input Power: 12~48VDC (Terminal Block)
Power Consumption: <125W (Non-PoE<6W)
Power Input Overload: Automatic Resettable
Reverse Polarity: Present
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount

System Overview

Mini Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster. This unmanaged industrial solar power PoE switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications.

Product Features

l 100/1000BASE-X SFP slots for SFP type auto detection

l 4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4)

l 12~48VDC wide range power input with power booster function

l Supports 802.3x Flow control

l Supports DIN-Rail and Wall-mount installation

l Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

l Industry standard design, dustproof and close design IP40, rugged high-strength metal case

l -40°C to 80°C (-40°F to 176°F) operating temperature

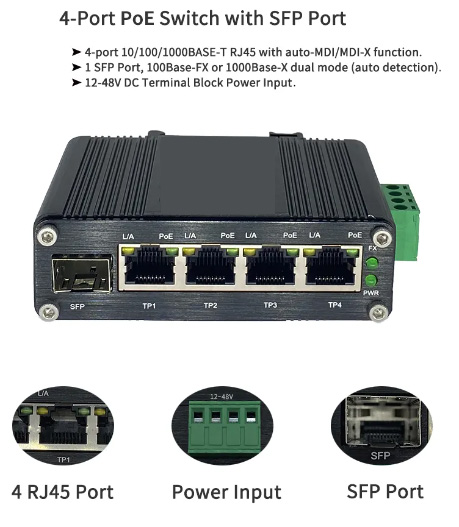

Product Pictures

4 Port 1000M 802.3at PoE 1 Port 100M or 1000M SFP Ethernet Switch 12V to 48V

Packaging & Shipping

● All of our package are international standard package

● We will deliver our products as soon as the order confirmed

4 Port 1000M 802.3at PoE 1 Port 100M or 1000M SFP Ethernet Switch 12V to 48V
