1310/1550nm Ethernet Fiber Switch , Four Port Ethernet Switch
1310/1550nm Ethernet Fiber Switch , Four Port Ethernet Switch
Specifications
Brand Name :
AEO
Certification :
CE, FCC, ROHS
Place of Origin :
China
MOQ :
1 piece
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
10000 pcs/month
Delivery Time :
5-8 working days
Packaging Details :
package and carton
Backplane Bandwidth :
12G
Cache :
1M
MAC address table :
1K
MAX Frame Length :
1632bytes
Fiber Ports Propertie :
1310/1550nm
Transmission Distance :
20-100KM
Input voltage :
+44~+57VDC
Transmission power :
-8~-2 dBm
Received sensitivity :
≤-35 dBm
Network Ports Properties :
IEEE802.3、IEEE802.3U、IEEE802.3X protocol
Network Port Delay :
﹤9.6μS
Network Port Bit Error Rate :
﹤1/1000000000
Power consumption :
≤4W
Operating Temperature :
-40 ~ 85℃
IPC Extender :
250m
VLAN :
support
CBIT :
support
gigabit ethernet ports :
2
gigabit optical ports :
2
Description

Cascading Optical Fiber Switch Full Gigabit 2 Ethernet and 2 Optical Ports

Technical Parameters

Network Ports 2 10/100/1000Base-T(X) adaptive Ethernet port
Network Ports Properties RJ45
Network Ports protocol IEEE802.3,IEEE802.3U,IEEE802.3X protocol
Ports Features Support half-duplex, full-duplex, auto-negotiation mode
Ports Features Support MDI/MDI-X adaptation
Delay ﹤9.6μS
Bit Error Rate ﹤1/1000000000
Backplane Bandwidth 12G
Cache 1M
MAC address table 1K
Power consumption ≤4W
Transmission Rate 10/100/1000Mbps
Optical Fiber Ports 2 10/100/1000Mbps Single Mode FC Optical Fiber Ports
Optical Fiber Ports Properties Wave Length:1310/1550nm
Transmission Distance 20-100KM
POE protocol IEEE802.3af/at
Pin Definition V+,V+,V-,V- Corresponding to 1,2,3,6
Output Power 15.4W
Rated Input voltage +44~+57VDC
Operating Temperature -40 ~ 85℃

System Overview

The Cascading Optical Fiber Switch is 2 giagbit optical ports and 2 gigabit ethernet ports, it is a high performance and cost-effective un-managed Ethernetswitch that meets the high reliability requirements of network operations. It designed to extend the distance of network by converting Gigabit Ethernet data between twisted pair cabling and multi-mode or single-mode fiber-optic cabling. It features 2 x 1000Base-X optical ports and 2 x 10/100/1000Base-T twisted-pair port. The SFP slot port for any kind of MSA-compliant pluggable 1.25G optical transceivers. The twisted-pair port has 2 x RJ-45 connector with a maximum operating distance of 250m.

Product Features

 Provide 2 x 10/100/1000Base-T
 2 x 1000Base-X optical for Daisy-Chain
 RJ45 support auto MDI/MDI-X function
 Auto-negotiation speed, half/full-duplex

 Provide EFT protection for Power line
 Support Ethernet ESD protection
 Desk-top Installation
 Low power consumption
 Store-and-forward
 Max packet size: 10K bytes
 Wide-range power design (12~56VDC)

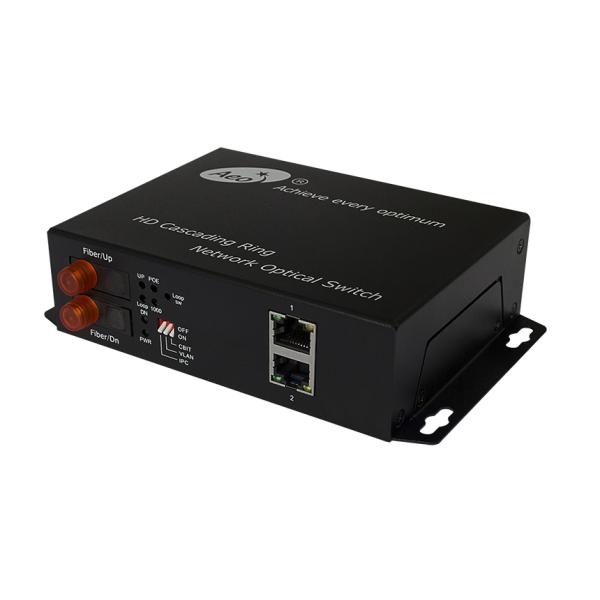

Product picture

1310/1550nm Ethernet Fiber Switch , Four Port Ethernet Switch

Application Diagram

1310/1550nm Ethernet Fiber Switch , Four Port Ethernet Switch

Packaging & Shipping

● All of our package are international standard package

● We will deliver our products as soon as the order confirmed

1310/1550nm Ethernet Fiber Switch , Four Port Ethernet Switch
