Specifications
Brand Name :
AEO
Certification :
CE, FCC
Place of Origin :
China
MOQ :
1 piece
Price :
negotiation
Payment Terms :
T/T, L/C
Supply Ability :
10000 pcs/month
Delivery Time :
3-4 working days
Packaging Details :
package and carton
Backplane capacity :
12G
Cache :
1M
VLAN :
yes
IPC Extender :
250m
Input Voltage :
+44~+57VDC
Working temperature :
-10~60°C
Relative humidity :
5% ~ 90%
Power consumption :
≤4W
Level of protection :
IP30
POE ports :
4 gigabit POE ports
Description

Gigabit POE Ethernet Switch IPC Extender 250m and VLAN 1 Uplink and 4 POE Ports

Technical Parameter

Network port 1 uplink 4 POE 10/100/1000Base-T(X) adaptive RJ45 Ethernet ports
Backplane processing capacity 12G
MAC address table 8K
Cache 1M
IPC/VLAN DIP switch support
Power Consumption ≤3W
Power input +44~+57VDC
relative humidity 5~90%
Working temperature -20~70°C
Heat-dissipating method The built-in passive cooling heat sink, no fan mute design
MTTF 100000 hours
POE Standard protocol IEEE802.3af/at
Pin V+ V+ V- V-is to 4,5,7,8
Input voltage +44~+57VDC
output power IEEE802.3af:15.5W IEEE802.3at:25.5W
Shell material iron

Product Introduction

Gigabit POE Ethernet Switch IPC Extender 250m and VLAN 1 Uplink and 4 POE Ports switch to meet the user video data transmission needs. It extends the limit of the network transmission distance from the 100m of the twisted pair to 250m through the IPC extension function to meet the needs of the remote and high-speed Ethernet users.


Product Features
● Automatically compatible with IEEE802.3 IEEE802.3U and IEEE802.3X and other network protocols

● Supports for full duplex and half duplex transfer modes, and with auto-negotiation skills.

● Supports for Adaptive MDI/MDI-X, store-and-forward mechanism.
● Supports for up to 9216byte long data packet transmission.
● Built-in efficient exchange core, suppression of broadcast storm, flow control, CRC error check
● Supplies ultra low latency data transmission.

● Ethernet ports support POE function, POE standard protocol IEEE802.3af / at, port maximum output

power 25.5W

● Supports DIP switch set monitoring mode, extend the IPC access distance; up to 250 meters

● Supports DIP switch set VLAN function: blocking the next port between the communication, improve

d ata forwarding efficiency, security system security.

● Suppress network storm function, automatically identify and filter broadcast packets

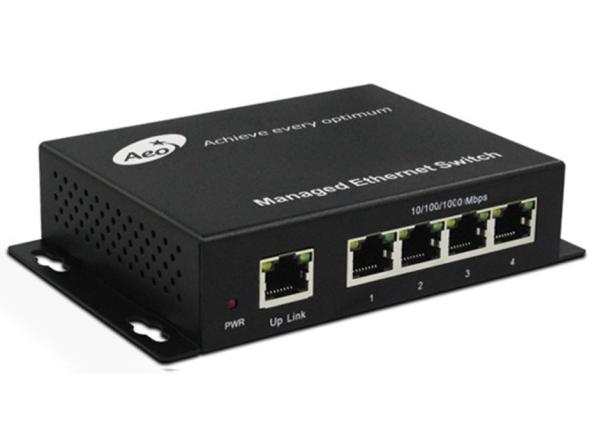

Product picture

4 Port POE Switch with IPC Extender 250M VLAN CBIT Functions

Application Diagram

4 Port POE Switch with IPC Extender 250M VLAN CBIT Functions
Packaging & Shipping

● All of our package are international standard package

● We will deliver our products as soon as the order confirmed

4 Port POE Switch with IPC Extender 250M VLAN CBIT Functions
