HD 20KM Transmission KVM HDMI Fiber Extender 4K 60HZ RS232 Loop Out
HD 20KM Transmission KVM HDMI Fiber Extender 4K 60HZ RS232 Loop Out
Specifications
Brand Name :
AEO
Certification :
CE, FCC
Place of Origin :
China
MOQ :
1 pair
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
10000 pairs/month
Delivery Time :
5-8 working days
Packaging Details :
package and carton
HDMI Version :
4K@60Hz / HDCP2.2
Audio format :
L-PCM
Fiber wavelength :
1310nm; 1550nm
Transmission distance. :
20km
Power :
DV5V
Working temperature :
-20℃-70℃
Description

HD 20KM KVM HDMI Fiber Converter 4K@60HZ RS232 Loop Out

The main features of the 20km Fiber HDMI KVM Extender:

* Support HDMI 4K@60Hz/HDCP2.2;
* Support transmitter HDMI Loop out;
* Support 3.5mm stereo output;
* Support IR;
* Support KVM;
* Support RS232;
* Comply with SFP MSA and SFF-8472 standard protocol;
* Pure hardware design, plug and play, do not need to install additional software;
* Support 4K to 1080P resolution (Downscaling)

Technical Paramaters

HDMI Version …………………...…...........…….......….......................4K@60Hz / HDCP2.2

HDMI resolution ………...............………The highest input resolution is 3840*2160@60Hz
Audio format ………………..……............................................................................. L-PCM
Fiber wavelength......................................................................................1310nm; 1550nm
Fiber transmission distance.........................................................................................20km
The maximum operating current …............................. 1.5A/5V DC(TX), 1.2A/5V DC (RX)
Operating Temperature range ……………………………....……....…........ (-10℃~ +55℃)
Dimension (L x W x H) ………………………………...…....................…...106x106x17(mm)
Weight ….…..…………………………………………….......................TX:272.1g RX:273.1g

Overview

HDMI fiber extender is a device transmitting HD audio and video signal via bidirectional single fiber cable. It transmits your HD display with the high resolutions up to 20km. It supports IR, RS232 and KVM function.By using bidirectional single fiber LC interface, it has the characteristics of low cost and stable signal transmission.

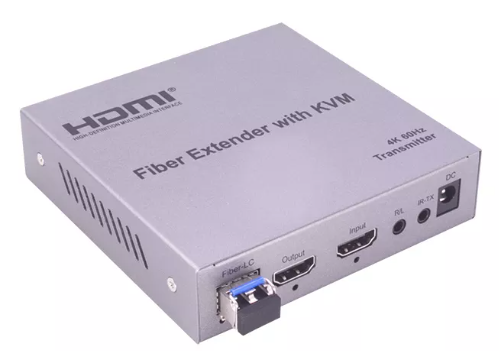

Product picture

HD 20KM Transmission KVM HDMI Fiber Extender 4K 60HZ RS232 Loop Out

HD 20KM Transmission KVM HDMI Fiber Extender 4K 60HZ RS232 Loop Out

Packaging & Shipping

● All of our package are international standard package

● We will deliver our products as soon as the order confirmed

HD 20KM Transmission KVM HDMI Fiber Extender 4K 60HZ RS232 Loop Out
