4CH 3G/HD-SDI Fiber Converter 20KM LC/SC/FC/ST
4CH 3G/HD-SDI Fiber Converter 20KM LC/SC/FC/ST
Specifications
Brand Name :
AEO
Certification :
CE, FCC
Place of Origin :
China
MOQ :
1 pair
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
10000 pairs/month
Delivery Time :
5-8 working days
Packaging Details :
package and carton
Wavelength :
1310nm&1550nm
Fiber Type :
Single mode, single fiber
Distance :
20km
Working Temperature :
-20℃～+70℃
Storage Temperature :
-40℃～+80℃
Working Humidity :
0~95%
MTBF :
≥100000 hours
Operation Mode :
Full duplex / half duplex
Description

4CH 3G/HD-SDI Fiber Converter 20KM LC/SC/FC/ST

The main advantages of the 4CH 3G/HD-SDI Fiber Converter:

1, 4 channel unidirectional hd-sdi video transmission over optic fiber

2, Compatible with SMPTE-292M HD-SDI and SMPTE-259M, SD-SDI standard signals, supporting 1485Mb / s , 270Mb / s rates

3, Support 1080I 60/50Hz, 720P 60/50/30/25Hz and many other video formats.

4, Automatic cable equalization to ensure signal integrity

5, Long transmission capability at least 20 km (6.2miles) , up to 80 km

6, ESD and surge protection circuit,which can effectively prevent static electricity and lightning damage

7, Provide light disappear alarm, remote power-down alarm, output signal status indication and input signal lock status indication

8. Ultra-broad temperature range (-20℃~+70℃), adaptable to various environments;

Technical Parameters

Physical Interface BNC
Number of Channels 4 Channel
Input/Output Impedance 75Ω (unbalance)
Video Format

1080I 60Hz/50Hz,

720P 60Hz/50Hz/30Hz/25Hz
Video Direction Unidirectional
Standard Video Input/Output Voltage 0.8Vp-p
Video Voltage Range 0.6~1.0Vp-p
Video Encoding bit width 8bit or 10bit Auto
Return Loss ≤-15dB@5MHz~1.5GHz,
Balanced Mode ≤140meters of Belden 1694A at 1.485Gbps ≤400meters of Belden 1694A at270Gbps
Embedded Audio, Auxiliary Space, EDH Data Transparent
Optic
Fiber Interface LC/SC/FC/ST
Fiber Type Singlemode(9/125μ single-mode optical fiber ,default),Multimode Selectable
Wavelength 1310nm,1550nm
Distance 20~80KM(20Km default)
Number of Fibers 1

Overview

The HD SDI to fiber converter also named as SDI fiber transceiver,which supports 4ch hd sdi over 1 single mode fiber to 20~80Km.It is a perfect and economic digital product for long distance with high resolution real-time video monitoring. It’s widely used for broadcast on television, high-definition video conferencing, high-definition video surveillance and other fields.

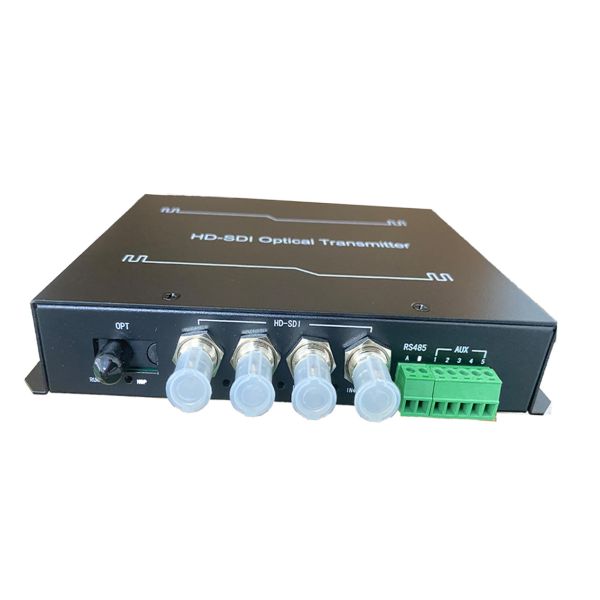

Product Picture

4CH 3G/HD-SDI Fiber Converter 20KM LC/SC/FC/ST

Packaging & Shipping

● All of our package are international standard package

● We will deliver our products as soon as the order confirmed

4CH 3G/HD-SDI Fiber Converter 20KM LC/SC/FC/ST
