Industrial RS232 / RS422 / RS485 Serial To Fiber Converter
Industrial RS232 / RS422 / RS485 Serial To Fiber Converter
Specifications
Brand Name :
AEO
Certification :
CE, FCC
Place of Origin :
China
MOQ :
1 pair
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
10000 pairs/month
Delivery Time :
5-8 working days
Packaging Details :
package and carton
Standard :
EIA /TIA RS232, RS-422, RS-485
Fiber Distance :
50/125um MMF: 2Km, 62.5/125um MMF: 5Km, 9/125 SMF:20/40/60/80Km
Rate :
0-120Kbps
Baud Rate :
300 Baud to 115,200 Baud
Power rate :
2W, 5-40V
Static protection :
15KV electric static discharge (ESD) protection
Operation Temperature :
-25°C to +70°C
Storage Temperature :
-40°C to +85°C
Storage Humidity :
5%~90% non-condescending
Description

Industrial RS232/RS422/RS485 Serial to Fiber Converter Multimode Dual Fiber 2Km

Technical Parameters

Standard EIA /TIA RS232, RS-422, RS-485
Fiber Connector SC standard, ST/FC optional
Fiber Distance 50/125um MMF: 2Km, 62.5/125um MMF: 5Km, 9/125 SMF:20/40/60/80Km
Serial Connector RS-232 ,RS-422, RS-485: phoenix terminal
Serial Distance RS-232 port 15m, RS-422, RS-485: 1500 meters
Rate 0-120Kbps
Baud Rate 300 Baud to 115,200 Baud
RS-485 D+, D-, GND
RS-422 R+, R-, T+, T-, GND
RS-232 IN, OUT, GND
Power rate 2W, 5-40V
Static protection 15KV electric static discharge (ESD) protection
Surge protection 1500W/sec surge protection
Operation Temperature -25°C to +70°C
Storage Temperature -40°C to +85°C
Storage Humidity 5%~90% non-condescending
Dimensions 110mm*104mm*28mm
Weight 0.3kg/pcs

Overview

Industrial RS232/RS422/RS485 Serial to Fiber Converter is an industrial grade RS-232 / RS-422/ RS-485 to fiber optic converter which converts a standard RS-232 / RS-422 / RS-485 transceiver to a fiber optic link as to extend the serial signal up to 2Km on multimode fiber and 80Km on single mode fiber. This unit is enclosed in an industrial wall mount compact size rugged steel case.

Product Features

Plug-and-play, hot pluggable
Extends RS232/RS-422 / RS-485 transmission up to 2Km on MMF, 80Km on SMF
Industrial Wall Mount Compact size rugged case
Protects against electrical interference and chemical corrosion Built-in surge and static protection
Diagnostic and unit indicator LEDs
Wide temperature range

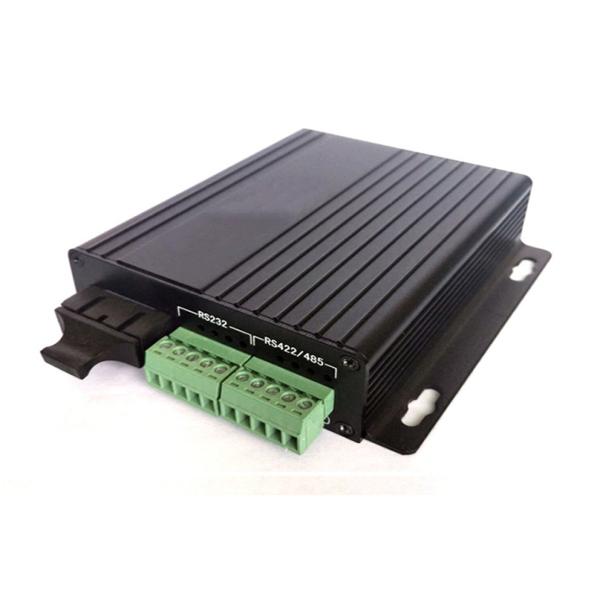

Product Picture

Industrial RS232 / RS422 / RS485 Serial To Fiber Converter

Industrial RS232 / RS422 / RS485 Serial To Fiber Converter

Packaging & Shipping

● All of our package are international standard package

● We will deliver our products as soon as the order confirmed

Industrial RS232 / RS422 / RS485 Serial To Fiber Converter
