Specifications
Model Number :
Fiber Optic PLC Splitter Tube Structure
Certification :
CE Rohs SGS ISO
Place of Origin :
China
MOQ :
MOQ : 100PCS
Price :
Price : Negotiable
Payment Terms :
Payment Terms:T/T, L/C,paypal,Western Union
Supply Ability :
Supply Ability :200000pcs/month
Delivery Time :
Delivery Time :3 to 5 days for sample orders, 7 to 15days for bulk order
Packaging Details :
Packaging Details : 1pc /box
Temperature ( :
-40～+85
Wavelength :
1260 to 1650nm
Warranty :
1 Year
Connector Type :
SC,FC,LC,ST
Application :
Test equipments /FTTX/PON/LAN
Description

Fiber Optic Plc Splitter Tube Structure Low Insertion Loss Fttx Lan Application Wavelength 1260 To 1650nm

Description:

  1. Pigtailed ABS box PLC splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
  2. we provide whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.

Features:

1.High reliability,stability
2. With low insertion loss, Low Polarization Dependent Loss, better return loss and the directivity
3.Excellent Uniformity

4.wavelength :1260nm ~1650nm

Specifications:

Port Configuration 1×2 1×4 1×8 1×16 1×32 1×64 2×2 2×4 2×8 2×16 2×32
Operating Wavelength (nm) 1260～1650
Fiber Type ITU G657.A fiber / customer require
Pigtail Length(M) customer Specified
Insertion Loss(dB) (S/P) 4.1 7.3 10.5 13.7 16.9 21 4.2 7.8 11.5 14.5 17.7
3.8 7.1 10.2 13.5 16.5 20.5 3.9 7.5 11.2 14.2 17.4
Return Loss (dB) 50 50 50 50 50 50 50 50 50 50 50
(S/P) 55 55 55 55 55 55 55 55 55 55 55
Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.5 0.8 1.5 1.5 2 2.5
PDL (dB) 0.2 0.2 0.3 0.3 0.3 0.4 0.2 0.2 0.3 0.4 0.4
Directivity (dB) 55
Operating Temperature(℃) -40～+85
Storage Temperature(℃) -40～+85


Applications:

1.(PON)

2.Local Area Networks(LANs)

3.FTTX

4.Cable Television

5.Test equipment

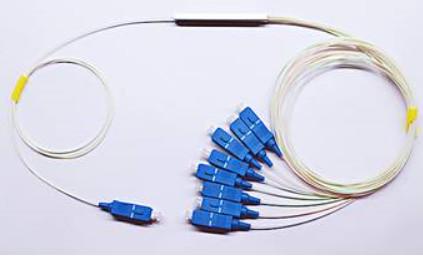

Products Pictures

1260nm 1650nm Fiber Optic Splitter Low Insertion Loss for Fttx Lan

1260nm 1650nm Fiber Optic Splitter Low Insertion Loss for Fttx Lan1260nm 1650nm Fiber Optic Splitter Low Insertion Loss for Fttx Lan
