0.9mm Optical Fiber Pigtail ST Connector Multi Mode OM5
0.9mm Optical Fiber Pigtail ST Connector Multi Mode OM5
0.9mm Optical Fiber Pigtail ST Connector Multi Mode OM5
0.9mm Optical Fiber Pigtail ST Connector Multi Mode OM5
0.9mm Optical Fiber Pigtail ST Connector Multi Mode OM5
0.9mm Optical Fiber Pigtail ST Connector Multi Mode OM5
0.9mm Optical Fiber Pigtail ST Connector Multi Mode OM5
0.9mm Optical Fiber Pigtail ST Connector Multi Mode OM5
Specifications
Model Number :
ST MULTI MODE Fiber Optical Pigtials
Certification :
CE Rohs SGS ISO
Place of Origin :
China
MOQ :
MOQ : 100PCS
Price :
Price : Negotiable
Payment Terms :
Payment Terms:T/T, L/C,paypal,Western Union
Supply Ability :
Supply Ability :300000pcs/month
Delivery Time :
Delivery Time :3 to 5 days for sample orders, 7 to 15days for bulk order
Packaging Details :
Packaging Details : 1pc pp bag
cable Type :
MULTI MODE OM5
Cable Diameter(mm) :
0.9 Ф2.0. Ф3.0
Operating Temperature(℃) :
-40 ～ +75
Connector :
ST
material :
PVC/LSZH
length :
customize
Description

Fibre Optic Pigtail ST Multi Mode OM5 0.9mm FTTH PVC/LSZH 0.9 Ф2.0 Ф3.0

Product description:

Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable.

The Fiber Optic Pigtail series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.

specification:

Technical specification: 　 　 　 　
Fiber Type SM MM
Cable Diameter(mm) Ф0.9,Ф2.0,Ф3.0
End-face Finishing PC UPC APC PC
Insertion Loss(dB) ≤0.30
Return Loss(dB) ≥50 ≥55 ≥60 ≥28
Operating Wavelength(nm) 1310；1550 850
Exchangeability(dB) ≤0.20
Repeatability(dB) ≤0.10
Operating Temperature(℃) -40 ～ +75
End Face Geometry ROC:10-25(PC/UPC) 5-12(APC)
Offset::0-50um
Fiber Height: -100 to +100nm
Angle:8±0.3(APC)

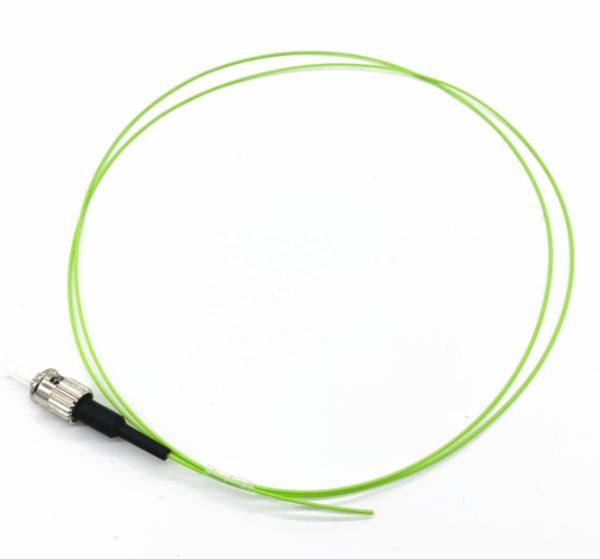

Products Pictures

0.9mm Optical Fiber Pigtail ST Connector Multi Mode OM50.9mm Optical Fiber Pigtail ST Connector Multi Mode OM5

Application:

1. Telecommunication Networks
2. CATV Networks
3. Active Device Termination
4. Local Area Networks

Shipping:

  1. Door to Door: by express (DHL, UPS, TNT)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea : shenzhen port
