Specifications
Model Number :
E2000 / APC SM Fiber Optical Pigtials
Certification :
CE Rohs SGS ISO
Place of Origin :
China
MOQ :
MOQ : 100PCS
Price :
Price : Negotiable
Payment Terms :
Payment Terms:T/T, L/C,paypal,Western Union
Supply Ability :
Supply Ability :300000pcs/month
Delivery Time :
Delivery Time :3 to 5 days for sample orders, 7 to 15days for bulk order
Packaging Details :
Packaging Details : 1pc pp bag
cable Type :
SM
Cable Diameter(mm) :
0.9 Ф2.0、Ф3.0
Wavelength(nm) :
1260-1650nm
Operating Temperature(℃) :
40~+85
Polishing :
APC
Connector :
E2000
Description

Fiber Optic Pigtail Single Mode E2000 / APC FTTX Network Application OEM

Product description:

Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.

Fiber Patch Cable Options:

1) Ferrule End-face: PC, UPC, APC
2) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
3) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores,etc
4) Cable Diameter: 3.0mm,2.0mm,0.9mm
5) Cable Length: 1, 2, 3 meter or
6) Cable type: PVC, LSZH, OFNP

specification:

Parameters
SC,LC,FC,E2000
ST,MU
MTRJ
SM
MM
SM
MM
SM
MM
UPC
APC
UPC
UPC
UPC
UPC
UPC
Work Wavelength (nm)
1310,1490,1550
850,1300
1310,1490,1550
850,1300
1310,1490,1550
850,1300
Insertion Loss(dB)
≤0.25
≤0.20
≤0.25
≤0.25
≤0.25
≤0.25
≤0.25
Return Loss(dB)
≥55
≥65
≥35
≥50
≥35
≥50
≥35
Repeatability(dB)
≤0.10
interchangeability(dB)
≤0.20
Plug Testing(time)
≥1000
Tensile Strength(N)
0.9mm(9N);2.0mm(70N);3.0mm(75N)
Durability(dB)
≤0.20
Operation Temperature(°C)
-40~+85
Storage Termperature(°C)
-40~+85

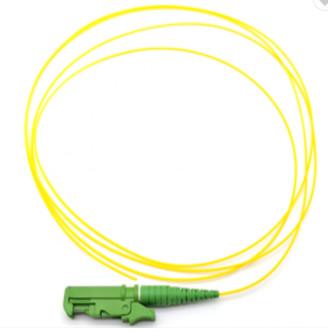

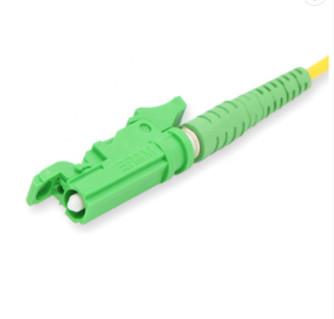

Products Pictures

FTTX Network E2000 Optical Fiber Pigtail APC PolishingFTTX Network E2000 Optical Fiber Pigtail APC Polishing

Application:

  1. CATV;
  2. Active device termination;
  3. Telecommunication networks;
  4. Metro;
  5. Local Area Networks;
  6. Data processing networks;
  7. Test equipment;
  8. Premise installation;
  9. Wide Area Networks

Shipping:

  1. Door to Door: by express (DHL, UPS, TNT)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea : shenzhen port
