Single Mode Fiber Optic MPO 24 Fiber MPO Connectors 100Gbps Protocols
Single Mode Fiber Optic MPO 24 Fiber MPO Connectors 100Gbps Protocols
Single Mode Fiber Optic MPO 24 Fiber MPO Connectors 100Gbps Protocols
Single Mode Fiber Optic MPO 24 Fiber MPO Connectors 100Gbps Protocols
Specifications
Model Number :
MPO-MPO Patch Cord
Certification :
CE Rohs SGS ISO
Place of Origin :
China
MOQ :
MOQ : 10PCS
Price :
Price : Negotiable
Payment Terms :
Payment Terms:T/T, L/C,paypal,Western Union
Supply Ability :
Supply Ability :150000pcs/month
Delivery Time :
Delivery Time :3 to 5 days for sample orders, 7 to 15days for bulk order
Packaging Details :
Packaging Details : 1pc pp bag
Connector :
MPO-MPO
fiber count :
24-144
Polishing :
PC/UPC/APC
Color :
YELLOW/Other
Jacket Material :
LSZH
Description

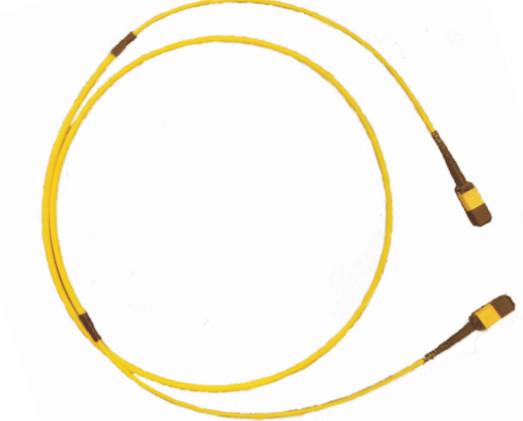

Single Mode Fiber Patch Cable Mpo - Mpo 24 Fiber MPO Connectors , 100Gbps Protocols

Description:

MPO/MTP ribbon and trunk mulitcore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost. emerging 40 and 100Gbps Protocols

MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores.

Specification:

Fiber Type SM MM
Cable Diameter(mm) Customer requirment
End-face Finishing Typical APC Typical PC
Insertion Loss(dB) ≤0.25 ≤0.75 ≤0.20 ≤0.60
Return Loss(dB) ≥60 ≥20
Operating Wavelength(nm) 1310；1550 850
Repeatability(dB) ≤0.10
Operating Temperature(℃) 　一40~+75

Single Mode Fiber Optic MPO 24 Fiber MPO Connectors 100Gbps Protocols

Application:

-Testing equipment;
-FTTX+LAN;
-Optical fiber CATV;
-Optical communication system;
-Telecommunication.
