OM3 24 Core MM Fiber Optic MPO , 0.9mm MPO To LC Fiber Cable
OM3 24 Core MM Fiber Optic MPO , 0.9mm MPO To LC Fiber Cable
OM3 24 Core MM Fiber Optic MPO , 0.9mm MPO To LC Fiber Cable
OM3 24 Core MM Fiber Optic MPO , 0.9mm MPO To LC Fiber Cable
Specifications
Model Number :
MPO-LC Patch Cord
Certification :
CE Rohs SGS ISO
Place of Origin :
China
MOQ :
MOQ : 10PCS
Price :
Price : Negotiable
Payment Terms :
Payment Terms:T/T, L/C,paypal,Western Union
Supply Ability :
Supply Ability :150000pcs/month
Delivery Time :
Delivery Time :3 to 5 days for sample orders, 7 to 15days for bulk order
Packaging Details :
Packaging Details : 1pc pp bag
Connector :
MPO-LC
fiber core :
24 core
Cable :
0.9mm
Multi-Mode Fiber :
OM3
Product name :
MPO Patch Cable
use :
FTTX / LAN
Description

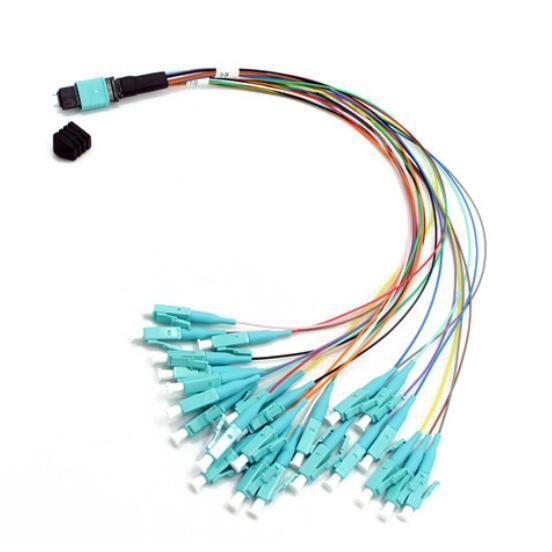

MPO Patch Cable OM3 24 Core MM MPO Male - LC Fiber 0.9mm Fanout Patch Cables FTTH

Description:

MPO trunk cables are available with 24F,48F,60F,72F ,96F,144F.Support speeds up to 10/40/100Gbps data center solutions. The compact cable optimize cableway use and improve airflow. These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion low for demanding high speed networks where power budgets are critical.

MPO Breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

Specifications:

Spec items.
Single mode (APCpolished)
Multimode (PC Flat polish)
Insertion loss (MPO)
(IEC 61300-3-34)
Standard MPO:≤0.75dB(max), ≤0.35dB(Typical)
Elite MPO:≤0.35dB(max), ≤0.20dB(Typical)
Standard MPO:≤0.6dB(max), ≤0.35(Typical)
Elite MPO:≤0.35dB(max) , ≤0.20dB(Typical)
Return loss(MPO)
≥60dB(8degree polishing)
≥25dB
Durability
<0.3dBtypical change, 200 matings
Interchangeability
≤0.2dB
Tensile strength
>70N
Operating Temperature
-40 to + 85°C

OM3 24 Core MM Fiber Optic MPO , 0.9mm MPO To LC Fiber Cable

FAQ:

1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality.

2. What about the lead time?
A:Sample needs 3 to 5 days, mass production time needs 1-2 weeks

3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.

4: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.

5: What is your quality control for your fiber optic product ?
1) Source Guarantee. We have our own long-term cooperation raw material suppliers. All the products are ROHS certificated and satisfy exporting quality level demand.
2)Quality Test. It runs through the whole process from the raw material to finished product, such as package, surface, physical test, optical test. They are 100% tested.
3)Optical Test. Our products are strictly tested in accordance with IEC and ITU standard.
