Specifications
Model Number :
GJYXCH
Certification :
CE Rohs SGS ISO
Place of Origin :
China
MOQ :
MOQ : 1000meter
Price :
Price : Negotiable
Payment Terms :
Payment Terms:T/T, L/C,paypal,Western Union
Supply Ability :
Supply Ability : 6,000,000 KM per year
Delivery Time :
Delivery Time : 15days to 30days for bulk order
Packaging Details :
Packaging Details : according to the quantity of the order
PRODUCT NAME :
Outdoor Fiber Optic Cable
Fiber :
G657A
Jacket: :
LSZH/PVC
Package :
Wooden drum and carton box
Color :
White/black
Fiber count: :
1core/2core/4core
Length :
1km/2km
Description

Outdoor Fiber Optic Cable 1/2/4 Core G657A 2km Multimode FTTH Drop Cable GJYXCH

Description :

GJYXFCH(1core/2core/4core)

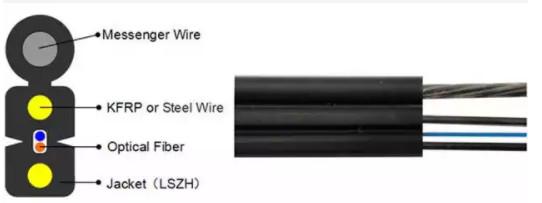

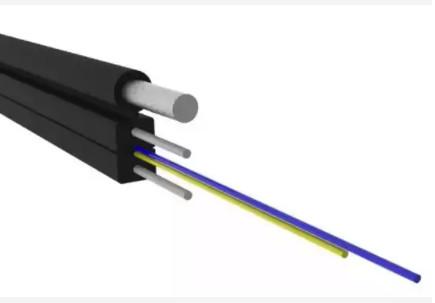

The optical fiber unit is located in the center. Two parallel FRP (or steel wire) are placed on both sides. Steel wires as additional strength members will also be used. Then the cable is finished with black or white LSZH sheath
Number of optical fibers
1/2/4 core
Fiber type
Single mode G657A
Stiffener
Material Science
Steel wire/FRP/KFRP
diameter
0.45/0.5/0.5mm
Self supporting suspension wire
Material Science
steel wire
diameter
1.0mm
Outer sheath
Material Science
Low smoke halogen-free flame retardant or PVC
Wire diameter
2.0×5.0(±0.2)mm
project
Product Description
stallation temperature range(°C)
-20+60
Operating and transport temperature(°C)
-20+70
Minimum bending radius(mm)
Long term
15D
Minimum bending radius(mm)
Short term
30D
Minimum allowable tensile strength (N)
Long term
400
Minimum allowable tensile strength (N)
Short term
660
Crushing load (N/100 mm)
Long term
1000
Crushing load (N/100 mm)
Short term
2200


Product features:

Special low bending sensitivity fiber provides high bandwidth and excellent communication transmission performance.
Two sub FRP strength members ensure good crushing resistance to protect the fibers.
With simple structure, light weight and strong practicability, it is suitable for 1 to 4 core SM indoor and outdoor FTTH wiring.
The novel flute design is easy to peel and splice, simplifying installation and maintenance.
Low smoke, zero halogen and flame retardant jacket.
As an additional strength member, a single steel wire ensures good performance of tensile strength

Outdoor Fiber Optic Cable 1/2/4 Core G657A 2km Multimode FTTH Drop Cable GJYXCHOutdoor Fiber Optic Cable 1/2/4 Core G657A 2km Multimode FTTH Drop Cable GJYXCH
