Specifications
Model Number :
GYTA53 Optical Cable
Certification :
CE Rohs SGS ISO
Place of Origin :
China
MOQ :
MOQ : 1000meter
Price :
Price : Negotiable
Payment Terms :
Payment Terms:T/T, L/C,paypal,Western Union
Supply Ability :
Supply Ability : 6,000,000 KM per year
Delivery Time :
Delivery Time :3 to 5 days for sample orders, 7 to 15days for bulk order
Packaging Details :
Packaging Details : according to the quantity of the order
Name :
Direct Burial Fiber Optic Cable GYTA
Application :
Telecom Communication
Color :
Black
Package: :
Wooden Drum
Tensile: :
3000N
Applicable laying methods: :
direct burial, underground burial and pipe laying
Description

Direct Burial Fiber Optic Cable GYTA Armoured Single Mode 144 Fiber Optic Cable Double Sheath

Description :

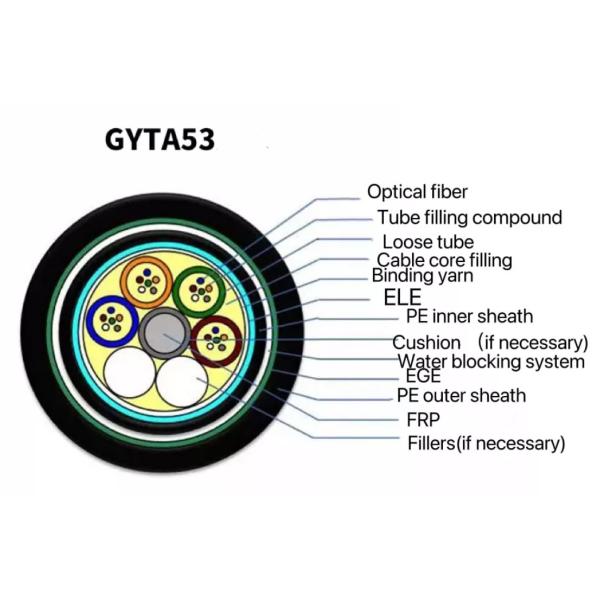

The structure of GYTA53 optical cable is 250 μ M The optical fiber is sleeved into the loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The center of the cable core is a metal reinforced core. For optical cables with certain number of cores, a layer of polyetene (PE) shall be extruded outside the metal reinforced core. The loose tube (and filler rope) is twisted around the central reinforced core to form a compact and round cable core, and the gap in the cable core is filled with water blocking filler. A layer of polyetene inner sheath shall be extruded after longitudinal wrapping of plastic coated aluminum strip (APL), and polyetene sheath shall be extruded after longitudinal wrapping of double-sided plastic coated steel strip (PSP) to form cable.

● Adopt "SZ" bidirectional stranding technology

● Fill with water blocking ointment in each process and block water in full section

● The overlap of steel (aluminum) tape is bonded reliably, with high strength and no cracking in torsion

● Fiber excess length control is stable

● After cabling, the additional attenuation of the optical fiber is close to zero, and the dispersion value does not change

● Suitable for overhead, pipeline, direct burial and other laying methods

Direct Burial Fiber Optic Cable GYTA Armoured Single Mode 144 Core Double Sheath

Model Number
GYTA53
Type
Fiber Optic Cable
Place of Origin
China Guangdong

Applicable laying methods

 direct burial, underground burial and pipe laying
Color
Black
Number of Conductors
≥10
Fiber count
4 8 12 24 48 144 Core
Application
Telecom Communication
Suitable Temperature
-40~60℃
Outer sheath diameter:
12-18mm
Certification
CE/ROHS/ISO9001

Features:

1) structure characteristics

Metal center reinforcement (phosphating steel wire) Double sided plastic coated aluminum tape - polyetene bonded inner sheath Double side plastic coated corrugated steel strip - polyetene bonded inner sheath

2)Performance characteristics

Double sided plastic coated aluminum tape polyetene bonded sheath with excellent moisture resistance

Double protective layer and double armor structure, with excellent compression resistance

Effectively prevent rodent damage

● 采用“SZ”双向层绞技术

Scope of application:

● Long distance communication and inter office communication

● It is especially suitable for occasions with high requirements for damp proof and rat proof
