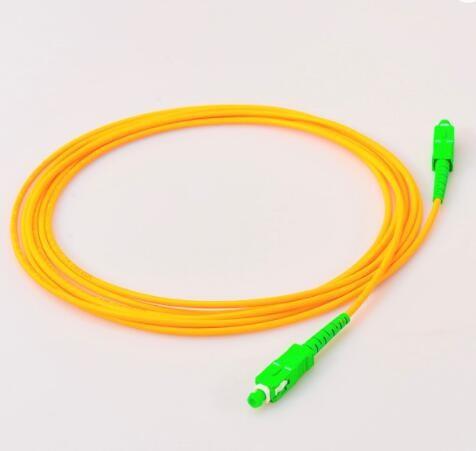

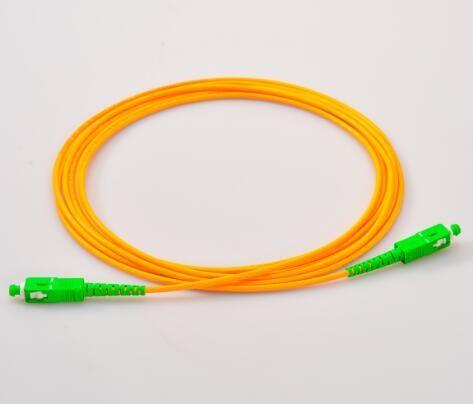

G652D G657A Fiber Optic Patch Cord SC APC To SC APC Lszh
G652D G657A Fiber Optic Patch Cord SC APC To SC APC Lszh
G652D G657A Fiber Optic Patch Cord SC APC To SC APC Lszh
G652D G657A Fiber Optic Patch Cord SC APC To SC APC Lszh
G652D G657A Fiber Optic Patch Cord SC APC To SC APC Lszh
G652D G657A Fiber Optic Patch Cord SC APC To SC APC Lszh
G652D G657A Fiber Optic Patch Cord SC APC To SC APC Lszh
G652D G657A Fiber Optic Patch Cord SC APC To SC APC Lszh
Specifications
Model Number :
SC/APC-SC/APC-SM-SX-3.0mm-3M PATCH CORD
Certification :
CE Rohs SGS ISO
Place of Origin :
China
MOQ :
MOQ : 100PCS
Price :
Price : Negotiable
Payment Terms :
Payment Terms:T/T, L/C,paypal,Western Union
Supply Ability :
Supply Ability :150000pcs/month
Delivery Time :
Delivery Time :3 to 5 days for sample orders, 7 to 15days for bulk order
Packaging Details :
Packaging Details : 1pc PE bag
Product name :
SC/APC-SC/APC-SM-SX-3.0mm-3M
Length :
1M/2M/3M or
Cable Diameter :
2.0/3.0mm
Material :
PVC/LSZH
Application :
FTTH/FTTA/FTTX
Connector: :
SC/APC or Customization
Description

Fiber Optic Patch Cord Sc Sc G652D/G657A SC APC To SC APC 2mm 3mm PVC / LSZH / PIGTAIL SC APC

Description:

Fiber Optic Patch Cord is important of optical network.They have same or different connectors which are installed on the end of fiber optic cable.The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.

Specification:

MODEL NO
Fiber Optic Patch Cord
Fiber Type
Single Mode G652D (G657A Negotiable)
Cable Assembilies
Simplex
Jacket Material
PVC(LSZH Negotiable)
Cable Diameter (mm)
2.0mm/3.0mm
Connector Type
SC
End Face
APC
Working Wavelength (nm)
1310/1550
Insertion Loss (dB) ≤0.3dB(MAX) ≤0.2dB(Typical)
Return Loss (dB)
UPC ≥50dB APC ≥60dB
Exchangeability ≤0.2dB
Operating Temperature(℃) -40～85
Storage Temperature(℃)
-40～85

Product name SC/Apc-SC/Apc-SM-SX-2.0/3.0mm
Length: 1M/2M/3M or

Features:

Low insertion loss, high return loss Good in repeatability and exchangeability High temperature stability Excellent end face geometry

All products undergo 100% strict quality inspection before shipment.
