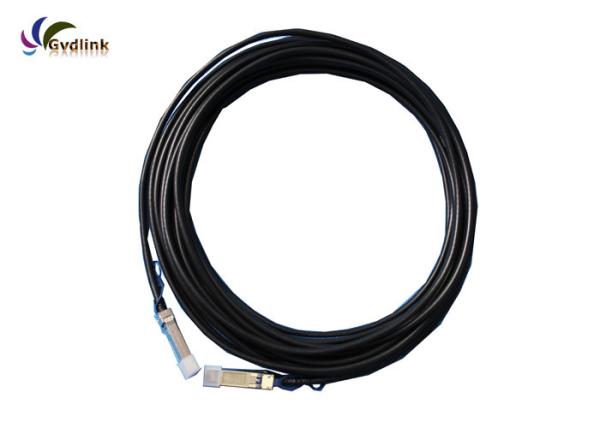

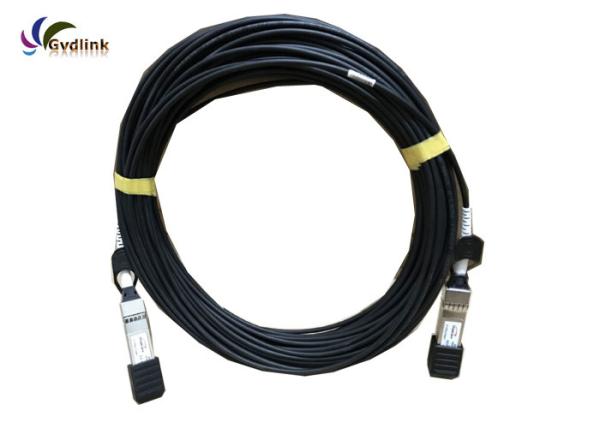

10G 7m SFP+ Active DAC Cable SFP-10G-AC7M For Huawei 02310QPS
10G 7m SFP+ Active DAC Cable SFP-10G-AC7M For Huawei 02310QPS
10G 7m SFP+ Active DAC Cable SFP-10G-AC7M For Huawei 02310QPS
10G 7m SFP+ Active DAC Cable SFP-10G-AC7M For Huawei 02310QPS
Specifications
Brand Name :
Gvdlink
Model Number :
GVD-SFP-10G-ACU7M
Certification :
CE,ROHS,FCC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C,Paypal
Supply Ability :
3500pcs per week
Delivery Time :
1-5 working days
Packaging Details :
Standard neutral or brand packing
Product name :
Direct Attach Cable
Type :
SFP
Data Rate :
10Gb/s
Length :
7m
Connector :
SFP+ to SFP+
Wire AWG :
24 AWG
Operating tempreature :
-20~70 C
Warranty :
3 years
Description

SFP-10G-AC7M Compatible 10G 7M SFP+ Active DAC Twinax Cable for Huawei 02310QPS

Description

SFP+ Copper Twinax (Figure 4) direct-attach cables are suitable for very short distances and offer a cost-effective way to connect within racks and across adjacent racks. Cisco offers passive Twinax cables in lengths of 1, 1.5, 2, 2.5, 3, 4 and 5 meters, and active Twinax cables in lengths of 7 and 10 meters.

The SFP+ DAC copper cable is programmed to be compatible with a wide range of Huawei network equipment for in-rack connections such as 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs) and Network Storage Systems. It’s proven to be a cost-effective alternative to high-cost Huawei SFP-10G-AC7M 10G SFP+ 7m direct attach the copper cable.

Features

  • Support for multi-gigabit data rates up to 10 Gb/s
  • Hot-pluggable SFP 20PIN footprint

  • Compatible to SFF-8431,SFF-8432

  • Improved Pluggable Form Factor(IPF) compliant for enhanced EMI/EMC performance
  • Compatible to SFP+ MSA
  • Power Consumption: <0.8W
  • Temperature Range: 0~ 70 °C

Detail

HW Compatible SFP-10G-AC7M Vendor Name Gvdlink
Connector Type SFP+ to SFP+ Max Data Rate 10Gbps
Minimum Bend Radius 30mm Wire AWG 24AWG
Cable Length 7m (22.97ft) Jacket Material PVC (OFNR)
Temperature 0 to 70°C (32 to 158°F) Protocols

1x InfiniBand QDR,

DDR, SDR, 10G Gigabit

Ethernet, Fibre Channel

​Our HW DAC SFP 10G cables product series

Model Specification Part number
SFP-10G-CU1M Twinax cable Passive cable assembly 1m 02310MUN
SFP-10G-CU3M Twinax cable Passive cable assembly 3m 02310MUP
SFP-10G-CU5M Twinax cable Passive cable assembly 5m 02310QPR
SFP-10G-AC7M Twinax cable Active cable assembly 7m 02310QPS
SFP-10G-AC10M Twinax cable Active cable assembly 10m 02310MUQ

Applications

● 1-8G Fiber Channel and 1-10G Gigabit Ethernet

● Hub, Switches, Routers, Servers, Network Interface Card(NICs)

● Networking, Storage, Telecommunications

Our product line show

10G 7m SFP+ Active DAC Cable SFP-10G-AC7M For Huawei 02310QPS
