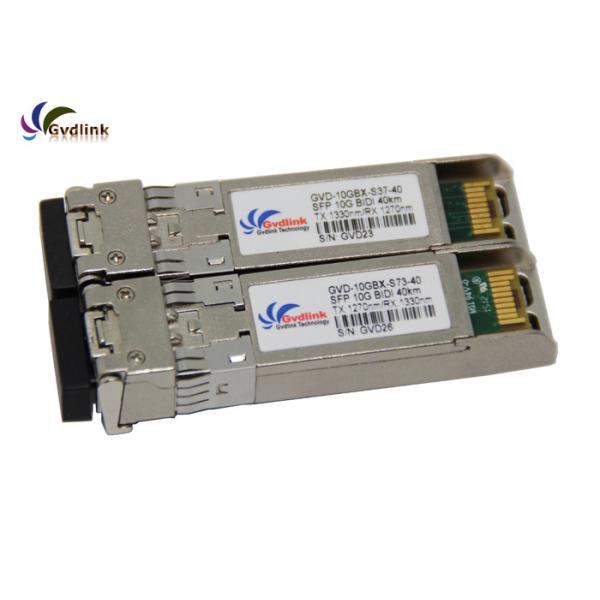

SFP-10G-BX40U-I compatible 10G SFP BIDI Single fiber 1270nm/1330nm 40KM Transceiver

The transceiver consists of two sections: The transmitter section incorporates a EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

Features

• Operating data rate up to 10.3Gbps

• type: DFB TX1330nm PIN RX1270nm , DFB TX1270nm PIN RX1330nm ,

• Distance up to 40km

• Single 3.3V Power supply and TTL Logic Interface

• Simpex LC Connector Interface

• Hot Pluggable

• Operating Case Temperature

• Industrial: -40 0 C ~ +85 0 C

• Standard: 0 0 C ~ +70 0 C

• DDM function

• Compliant With MSA SFP Specification

Advantages

• High Quality with ISO9001 , TUV, CE, FCC, UL , RoHS certificates

• Full product line

• 100%tested
• 3 year Warranty

• fast delivery

Applications

• 10G Channels

• Other 10Gbps Networking Optical links

• Hub , Switches , Routers , Servers , Network Interface Card (NICs)

• Networking , Storage , Telecommunications

Our WDM(BIDI) SFP / SFP+ / XFP product series

OEM and ODM

OEM / ODM order are all available

we can supply products according to your requirements , and design products label for your own company.

Shipment

International Express: DHL , FedEx , SF , EMS ,TNT , UPS and so on . It takes 2-7 days.

Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts all new materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.

What we focus

We focus on all kinds of compatible optical transceiver modules, including SFP , SFP+ , XENPAK , GBIC , X2 , XFP , BIDI , CWDM , DWDM and other special transceiver modules . Our products are compatible with Cisco , Ciena , H3C , HP , Extreme , Foundry , Avaya , D-link , Alcatel , Riverstone , Enterasys , Netgear , Nortel , Juniper , Ruijie , Zyxel , Huawei , etc.

Our product line show
