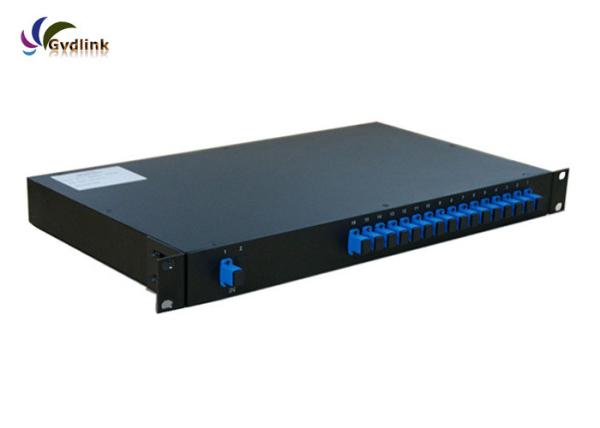

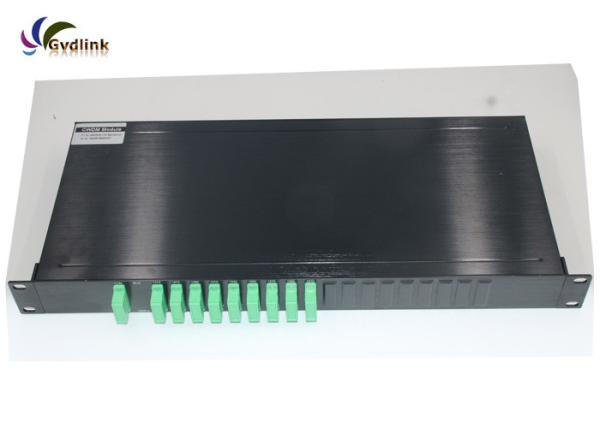

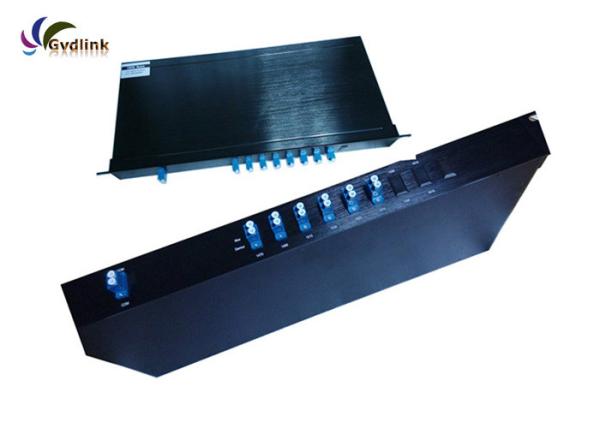

1270nm 18 Channels CWDM Mux Demux With Monitor Port
1270nm 18 Channels CWDM Mux Demux With Monitor Port
1270nm 18 Channels CWDM Mux Demux With Monitor Port
1270nm 18 Channels CWDM Mux Demux With Monitor Port
1270nm 18 Channels CWDM Mux Demux With Monitor Port
1270nm 18 Channels CWDM Mux Demux With Monitor Port
Specifications
Brand Name :
Gvdlink
Model Number :
GVD-CX18R-2761
Certification :
CE,ROHS,FCC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C,Paypal
Supply Ability :
3500pcs per week
Delivery Time :
1-5 working days
Packaging Details :
Standard neutral or brand packing
Product name :
CWDM MUX DEMUX
Wavelengt20nmh :
18 channels 1270-1610nm
Channel Spacing :
20nm
Channel Passband :
±6.5nm
Insertion Loss :
≤5.5dB (with connectors and adapters)
Adjacent channel Isolation :
≥ 30dB
Non-adjacent channel Isolation :
≥ 40dB
Return Loss :
≥ 45dB
Polarization Dependent Loss :
≤ 0.1ps
Temperature :
-40°C~+85°C
Dimensions (HxWxD) :
1.73"x19"x10.28" (44x481.8x261.2mm)
Description

18 Channels 1270-1610nm with Monitor Port Dual Fiber CWDM Mux Demux FMU 1U Rack Mount

Decription

Gvdlink's Coarse wavelength division multiplexer (CWDM Mux/Demux) utilizes thin film coating technology
and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss,
high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path.

Our CWDM Mux Demux products provide up to 16-channel or even 18-channel Multiplexing on a single fiber. Due the the low insertion loss is needed in WDM networks, we can also add “Skip Component”
in a CWDM Mux/Demux module to reduce the IL as an option.

Features

  • Low Insertion Loss
  • High Isolation

  • Low Polarization Dependent Loss

  • Compact Design
  • Wide operating wavelength range

  • High reliability and high stability

  • Telcordia GR-1209-CORE-2001 compliant
  • Telcordia GR-1221-CORE-1999 compliant
  • ITU-T G.694.1 compliant
  • RoHS compliant and lead free

​Our CWDM MUX /DEMUX product series

Model Description CH Qty
GVD-CM04M-2733 4ch CWDM Mux module 1270nm to 1330nm 2.0mm fiber 50cm length 4
GVD-CM08M-4761 8ch CWDM Mux module 1470nm to 1610nm 2.0mm fiber 50cm length 8
GVD-CD08M-4761 8ch CWDM Demux module 1470nm to 1610nm 2.0mm fiber 50cm length 8
GVD-CX08R-4761 8ch CWDM Mux-Demux 1470nm to 1610nm with 19" Chassis 8
GVD-CM08+R-4761 8+1ch CWDM Mux module 1470nm to 1610nm,with express port 1310+/-45nm isolation >15dB 2.0mm fiber 50cm length 9
GVD-CD08+M-4761 8+1ch CWDM Demux module 1470nm to 1610nm, with express port 1310+/-45nm isolation >15dB 2.0mm fiber 50cm length 9
GVD-CX08+R-4761 8+1ch CWDM Mux-Demux 1470nm to 1610nm, with express port 1310+/-40nm isolation >30dB with 19" Chassis 9
GVD-CM12M-2761 12ch CWDM Mux module 1390nm to 1610nm 2.0mm fiber 12
GVD-CD12M-2761 12ch CWDM Demux module 1390nm to 1610nm 2.0mm fiber 12
GVD-CX12R-2761 12ch CWDM Mux-Demux 1390nm to 1610nm 2.0mm fiber 50cm length, with 19" chassis 12
GVD-CM16M-2761 16ch CWDM Mux module 1310nm to 1610nm 2.0mm fiber 16
GVD-CD16M-2761 16ch CWDM Demux module 1310nm to 1610nm 2.0mm fiber 16
GVD-CX16R-2761 16ch CWDM Mux-Demux 1310nm to 1610nm 2.0mm fiber 50cm length, with 19" chassis 16
GVD-CM18M-2761 18ch CWDM Mux module 1270nm to 1610nm 2.0mm fiber 18
GVD-CD18M-2761 18ch CWDM Demux module 1270nm to 1610nm 2.0mm fiber 18
GVD-CX18R-2761 18ch CWDM Mux-Demux 1270nm to 1610nm 2.0mm fiber 50cm length, with 19" chassis 18

Applications

  • CWDM System

  • PON Networks

  • CATV Links

Shipment

International Express DHL , UPS , SF , EMS , TNT , FedEx and so on . It takes 1-7 days.

Guarantee

We will provide 3 year warranty for all the optical transceivers from the date of shipment .

What we focus

We focus on all kinds of compatible optical transceiver , including SFP , SFP+ , XFP , XENPAK , X2 , QSFP and CWDM MUX/DEMUX

DWDM AAWG MUX and other passive components . we can design the fully solution for your network syestem.

Our product line show

1270nm 18 Channels CWDM Mux Demux With Monitor Port

FAQ

Q1. Can I have a sample order for this product? What' MOQ of it?
A:Yes welcome send sample order for test. MOQ is 1 piece.

Q2. What about the lead time?
A:Sample needs 2-3 days, mass production time needs 1-2 weeks.

Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping
also optional.

Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty according to different products.

Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.
