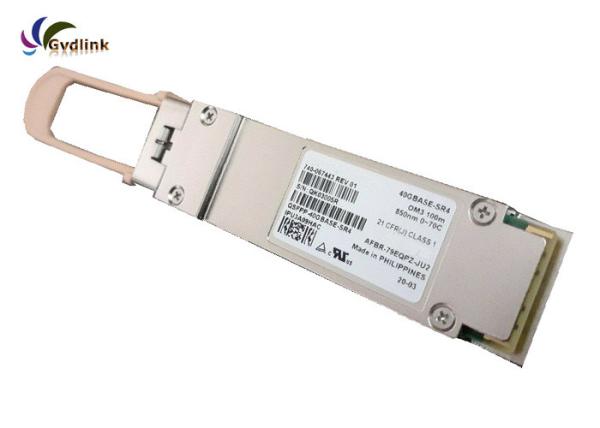

DDM QSFP SR4 40G Optical Transceiver 850nm 150m SRX-QSFP-40G-SR4
DDM QSFP SR4 40G Optical Transceiver 850nm 150m SRX-QSFP-40G-SR4
Specifications
Brand Name :
Gvdlink
Model Number :
GVD-QSFP-40G-SR4
Certification :
CE,ROHS,FCC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C,Paypal
Supply Ability :
3500pcs per week
Delivery Time :
1-5 working days
Packaging Details :
Standard neutral or brand packing
Product name :
optical transceiver
Type :
QSFP
Data Rate :
40Gb/s
Wavelength :
850nm
Distance :
OM3 for 100m and OM4 for 150m
Connector :
MTP/MPO
Operating tempreature :
-20~70 C -40~85 C
Warranty :
3 years
Description

Juniper Compatible 740-052665 SRX-QSFP-40G-SR4 QSFP 40G SR4 850nm 150m Optical Transceiver

Description

The Juniper Networks 740-052665 SRX-QSFP-40G-SR4 Compatible QSFP+ Transceiver adopts 12 Fibers MTP/MPO Male connectors, reaching a link up to 150m over OM4 MMF (100m over OM3). This transceiver is compliant with QSFP+ MSA, IEEE 802.3ba 40GBASE-SR4 and breakout to 4x10GBASE-SR standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, campus and computing networks, interconnections within and between switches, routers, NICs and transport equipment.

Features

  • Functionally identical to Juniper Networks 740-052665 SRX-QSFP-40G-SR4

  • High Channel Capacity: 40 Gbps per transceiver

  • Transmission data rate up to 10.3Gbps per channel

  • Up to 100m links on OM3 MMF or 150m on OM4 MMF

  • High-Reliability 4-channel 850nm VCSEL laser

  • Electrically hot-swappable

  • Compliant with QSFP+ MSA

  • Compliant with IEEE 802.3ba 40GBASE-SR4

  • MPO Optical Connector

  • Power dissipation < 1.5 W

  • Supports DDM function

  • RoHS6 Compliant

  • Operating temperature range:0~70ºC

Our Juniper QSFP+ 40G compatible Product series

Juniper P/N Juniper Model Specification

740-067442(new)

740-032986(old)

 QFX-QSFP-40G-SR4 40G QSFP for MMF 850nm 150m
740-045627 QFX-QSFP-40G-ESR4 40G QSFP for MMF 850nm 400m for OM4 MPO
740-056705 JNP-QSFP-40G-LX4 QSFP+ 40G 1310nm 150m DOM LC SMF/MMF

740-073095(new)

740-052009(old)

 JNP-QSFP-40G-LR4 40G QSFP for SMF 1310 10km
QFX-QSFP-40G-LR4 40G QSFP for SMF 1310 10km
740-066424 JNP-QSFP-40GE-ER4 40G QSFP for SMF 1310 40km
740-056707 JNP-QSFP-40GE-IR4 QSFP+ 40G 1310nm 2km DOM LC SMF
740-080490 JNP-QSFPP-40G-BXSR 40GBASE-SR Bi-Directional Duplex LC MMF 150m
740-056706 JNP-QSFP-4X10GE-IR QSFP+ 4X10G 1310nm 1.4 km MPO SMF
740-057315 JNP-QSFP-4X10GE-LR QSFP+ 4x10GBASE LR 10km SMF, MPO-12 APC Receptacle

740-067443(new)

740-046565(old)

 QSFPP-40GBASE-SR4 40G QSFP for MMF 850nm 150m

740-073093(new)

740-043308(old)

 QSFPP-40GBASE-LR4 40G QSFP for SMF 1310 10km
740-059185 QSFPP-40GBASE-ER4 40G QSFP for SMF 1310 40km
740-062254 QSFPP-40G-LX4 QSFP+ 40G 1310nm 150m DOM LC SMF/MMF

740-067444(new)

740-052665(old)

 SRX-QSFP-40G-SR4 40G QSFP for MMF 850nm 150m
740-073096 SRX-QSFP-40G-LR4 40G QSFP for SMF 1310 10km
740-054053 QSFPP-4X10GE-SR 40G QSFP+ breakout into 4x10GBASE SR Ethernet module
740-054050 QSFPP-4X10GE-LR 40G QSFP+ breakout into 4x10GBASE LR Ethernet module
QSFP-40G-SR-BD 40GBASE-SR-BiDi QSFP+ Transceiver Module

Applications

  • Fully compatible with almost all Juniper devices

  • OTN OTU4 Metro Area Networks

  • 100G telecom, data center, high-performance computing network, campus network
