FIBOS FA501 Micro Low Capacity Beam Load Cell For Electronic Scale
FIBOS FA501 Micro Low Capacity Beam Load Cell For Electronic Scale
Specifications
Brand Name :
Fibos
Model Number :
FA501
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD 18-28/PC
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000per month
Delivery Time :
7-14work days
Category :
Beam Load Cells
Capacity :
300g,500g,1,1.5,2,3,4,5 kg
Rated Output :
1.0±10%mV/V(300g,500g); 2.0±10%mV/V(1~5kg)
Material :
Aluminum alloy
Protection Class :
IP65
Description

Features

Micro low-capacity beam load cell FA501 is a full bridge sensor. The shear beam sensor weighs only 100 grams with rated capacities of 0.3kg/0.5kg/1kg/1.5kg/2kg/3kg/4kg/5kg. So the low-capacity load cell offers limitless possibilities for applications.

  • Small size
  • High precision
  • Easy to install

Applications

  • Electronic scale
  • Counting scales
  • Industrial weighing system

Mounting Dimension

FIBOS FA501 Micro Low Capacity Beam Load Cell For Electronic Scale

FIBOS FA501 Micro Low Capacity Beam Load Cell For Electronic Scale

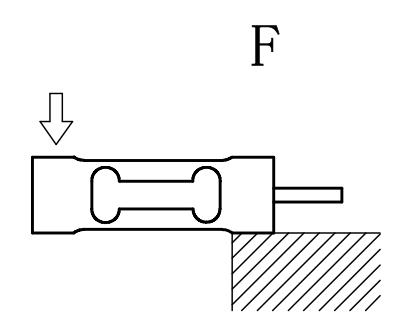

Load Direction

FIBOS FA501 Micro Low Capacity Beam Load Cell For Electronic Scale

Wiring Code

FIBOS FA501 Micro Low Capacity Beam Load Cell For Electronic Scale

Specifications

Specifications Technique
Capacity 300g,500g,1,1.5,2,3,4,5 kg
Accuracy class C3
Rated output 1.0±10%mV/V(300g,500g); 2.0±10%mV/V(1~5kg)
Zero balance ±2%F.S.
Non-linearity 0.015%F.S.
Hysteresis 0.015%F.S.
Repeatability 0.015%F.S.
Creep(30min) 0.0166%F.S.
Temp.effect on output 0.017%F.S./10℃
Temp.effect on zero 0.02%F.S./10℃
Input impedance 380±40Ω
Output impedance 380±40Ω
Insulation ≥5000MΩ/100VDC
Recommended excitation 5~15V
Maximum excitation 20V
Compensated temp range -10~40℃
Operation temp range -25~70℃
Safe overload 150%F.S.
Ultimate overload 300%F.S.
Cable size Φ4×400mm
Material aluminum alloy
IP Class IP65
Max.platform size 200mm×200mm

FIBOS is a high-tech enterprise engaged in the technology development and sales of sensors, mainly providing force sensors, transmitters, control instruments and other products. Fibos specializes in custom design and development of load cells and solutions. We can provide perfect force sensors and system solutions according to customer's situation.
