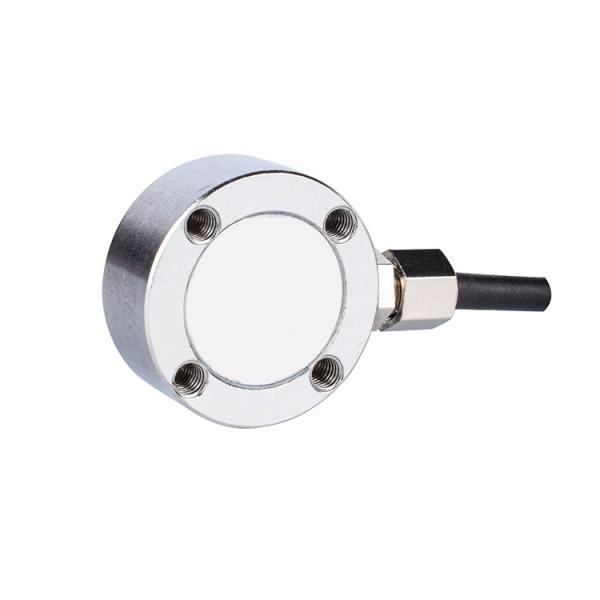

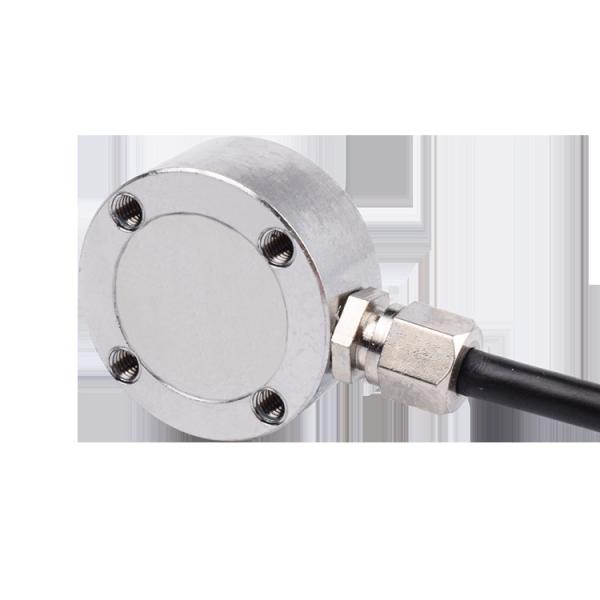

Fibos stainless steel 20kN mini force sensor for mold pressed
Fibos stainless steel 20kN mini force sensor for mold pressed
Fibos stainless steel 20kN mini force sensor for mold pressed
Fibos stainless steel 20kN mini force sensor for mold pressed
Fibos stainless steel 20kN mini force sensor for mold pressed
Fibos stainless steel 20kN mini force sensor for mold pressed
Fibos stainless steel 20kN mini force sensor for mold pressed
Fibos stainless steel 20kN mini force sensor for mold pressed
Fibos stainless steel 20kN mini force sensor for mold pressed
Fibos stainless steel 20kN mini force sensor for mold pressed
Fibos stainless steel 20kN mini force sensor for mold pressed
Fibos stainless steel 20kN mini force sensor for mold pressed
Specifications
Brand Name :
FIBOS
Model Number :
FA107
Certification :
ISO CE RoHS
Place of Origin :
Jiangsu, China
MOQ :
To Be Negotiated
Price :
To Be Negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 Pieces per Month
Delivery Time :
1-7 work days
Packaging Details :
1.Opp bag 2.Custom box 3.According to your request
Product name :
Spoke Type Load Cell
Capacity :
20kN
Creep(30min) :
≤0.1%F.S.
Material :
Stainless steel
Non-linearity :
≤0.5%F.S.
Cable size :
⌀2/3x3m
Description

Fibos stainless steel 20kN mini force sensor for mold pressed

1. Descriptions

20kg The Creep ≤0.05%F.S. Stainless Steel Spoke Type Load Cell FA122B belongs to FA122 which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, Spoke Type Load Cell FA122B can be used to measure load 20kg capacity, its Creep(30min) ≤0.05%F.S., its Non-linearity and Repeatability both ≤0.1%F.S., and its Hysteresis ≤0.2%F.S..

2. Specifications

Product name Spoke Type Load Cell
Capacity 20kn
Sensitivity 1.5±20%mVN
Zero Balance ±1%F.S
Creep(30min) ≤0.1%F.S.
Non-linearity ≤0.5%F.S.
Hysteresis ≤0.2%F.S.
Repeatability ≤0.2%F.S.
Input impedance 800~1100Ω
Output impedance 800~1100Ω
Temp.effect on output 0.05%F.S./10 ℃
Temp.effect on zero 0.05%F.S./10 ℃
Insulation resistance ≥5000MΩ/100V(DC)
Recommended excitation 5~15V
Maximum excitation 20V
Compensated Temp Range -10~60 ℃
Operating Temp Range -20~80 ℃
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size ⌀2/3x3m
Material Stainless steel

3. Dimension

Fibos stainless steel 20kN mini force sensor for mold pressed

4. Application

20kN The Creep ≤0.1%F.S. Stainless Steel Spoke Type Load Cell FA107 can be used for mold pressed.

5.FAQ

Q1: What is your terms of delivery?

A: EXW, FOB, CFR and CIF.

Q2: Can you produce according to the samples?

A: Yes, we can produce according to your samples or technical drawings.

Q3:What is your sample policy?

A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.

Q4: What's your quality guarantee policy?

A: Quality guarantee: 12 months.

If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.

And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
