IP68 1.94mv/V Stainless Steel Load Cell 0.22t-4.4t Strain Gauge Weight Sensor
IP68 1.94mv/V Stainless Steel Load Cell 0.22t-4.4t Strain Gauge Weight Sensor
IP68 1.94mv/V Stainless Steel Load Cell 0.22t-4.4t Strain Gauge Weight Sensor
IP68 1.94mv/V Stainless Steel Load Cell 0.22t-4.4t Strain Gauge Weight Sensor
IP68 1.94mv/V Stainless Steel Load Cell 0.22t-4.4t Strain Gauge Weight Sensor
IP68 1.94mv/V Stainless Steel Load Cell 0.22t-4.4t Strain Gauge Weight Sensor
IP68 1.94mv/V Stainless Steel Load Cell 0.22t-4.4t Strain Gauge Weight Sensor
IP68 1.94mv/V Stainless Steel Load Cell 0.22t-4.4t Strain Gauge Weight Sensor
IP68 1.94mv/V Stainless Steel Load Cell 0.22t-4.4t Strain Gauge Weight Sensor
IP68 1.94mv/V Stainless Steel Load Cell 0.22t-4.4t Strain Gauge Weight Sensor
IP68 1.94mv/V Stainless Steel Load Cell 0.22t-4.4t Strain Gauge Weight Sensor
IP68 1.94mv/V Stainless Steel Load Cell 0.22t-4.4t Strain Gauge Weight Sensor
Specifications
Brand Name :
FIBOS
Model Number :
FA509B
Certification :
ISO CE RoHS
Place of Origin :
Jiangsu, China
MOQ :
To Be Negotiated
Price :
To Be Negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 Pieces per Month
Delivery Time :
1-7 work days
Packaging Details :
1.Opp bag 2.Custom box 3.According to your request
Product name :
Tension Force Sensor
Capacity :
0.22t, 0.55t, 1.1t, 1.76t, 2.2t, 4.4t or customized
Zero Balance :
±2%F.S.
Sensitivity :
1.94±0.1%mV/V
Material :
Stainless steel
IP Class :
IP68
Non-linearity :
≤0.17%F.S. or customized
Maximum excitation :
20V
Recommended excitation :
5-15V
Safe overload :
150%F.S.
Ultimate overload :
200%F.S.
Cable size :
⌀5.4x1500mm or customized
Description

IP68 1.94mv/V Stainless Steel Load Cell 0.22t-4.4t Strain Gauge Weight Sensor

1. Descriptions

1.94mv/V IP68 Stainless Steel Strain Gauge Weight Sensor Tension Force Sensor FA509B is a model of our brand FIBOS FA5-Series, Strain Gauge Weight Sensor Tension Force Sensor FA509B can be used to measure tension force 0.22t-4.4t, It adopts 6-wire connection mode, which can be used for platform scale, belt scale and hopper scale, etc., and it can be customized specifications. its IP Class is IP68.

High precision, suitable for almost any tank, batching, platform scale and level monitoring applications.

Made of stainless steel, it is strong and can be used in harsh environments.

Standard size, multiple range optional.

2. Specifications

IP68 1.94mv/V Stainless Steel Load Cell 0.22t-4.4t Strain Gauge Weight Sensor

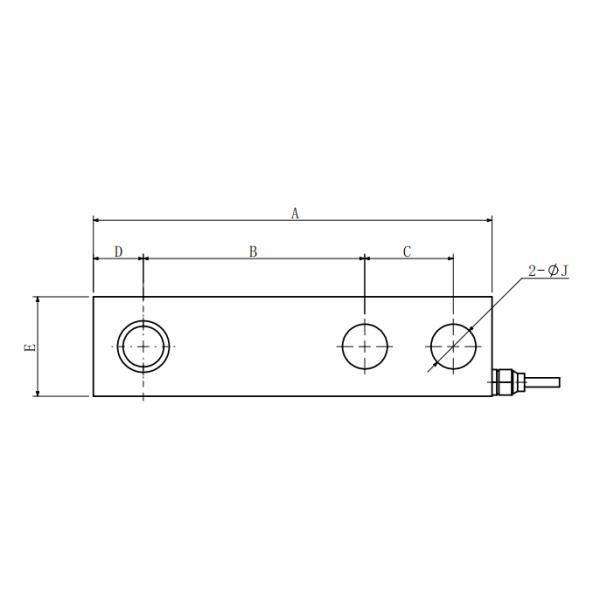

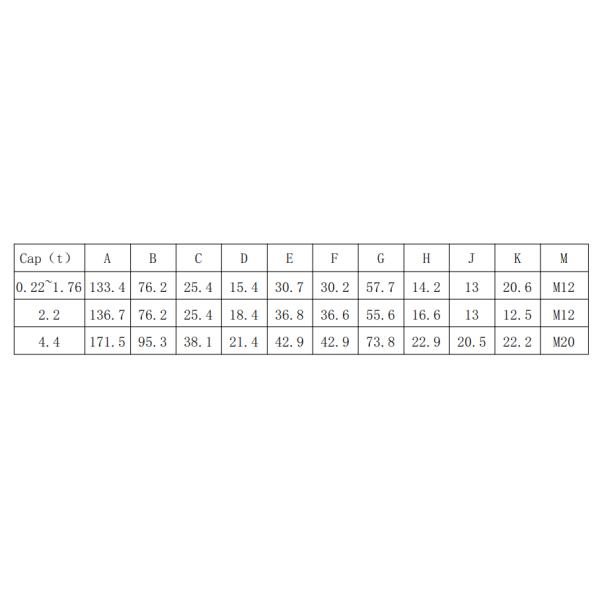

3. Dimension

IP68 1.94mv/V Stainless Steel Load Cell 0.22t-4.4t Strain Gauge Weight Sensor

IP68 1.94mv/V Stainless Steel Load Cell 0.22t-4.4t Strain Gauge Weight Sensor

IP68 1.94mv/V Stainless Steel Load Cell 0.22t-4.4t Strain Gauge Weight Sensor

IP68 1.94mv/V Stainless Steel Load Cell 0.22t-4.4t Strain Gauge Weight Sensor

4. Application

1.94mv/V IP68 Stainless Steel Strain Gauge Weight Sensor Tension Force Sensor FA509B, can be used for platform scale, belt scale and hopper scale, etc., and it can be customized specifications. its IP Class is IP68.

5.FAQ

Q1: What is your terms of delivery?

A: EXW, FOB, CFR and CIF.

Q2: Can you produce according to the samples?

A: Yes, we can produce according to your samples or technical drawings.

Q3:What is your sample policy?

A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.

Q4: What's your quality guarantee policy?

A: Quality guarantee: 12 months.

If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.

And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
