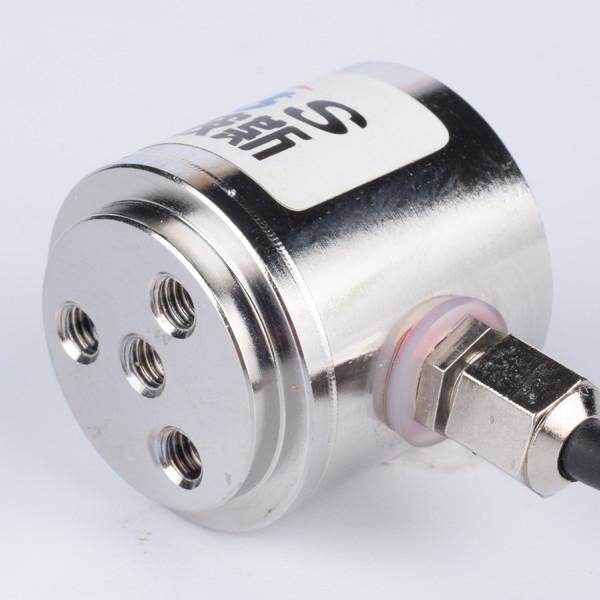

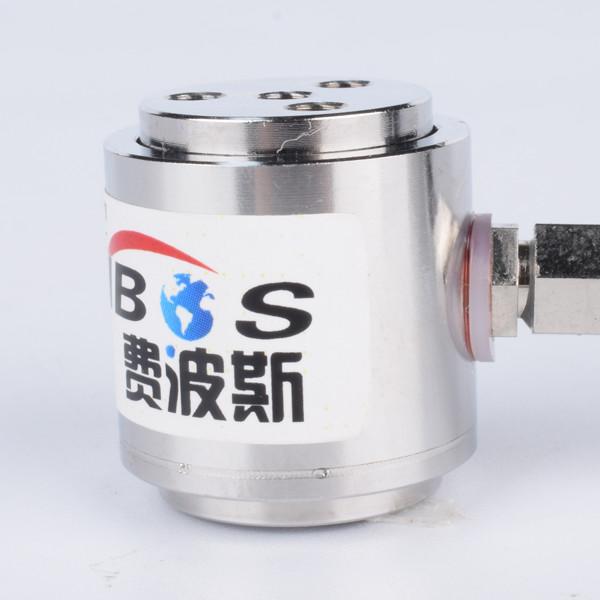

20-2000n Tension Compression Force Sensor Stainless Steel Compressive Load Cell
20-2000n Tension Compression Force Sensor Stainless Steel Compressive Load Cell
20-2000n Tension Compression Force Sensor Stainless Steel Compressive Load Cell
20-2000n Tension Compression Force Sensor Stainless Steel Compressive Load Cell
20-2000n Tension Compression Force Sensor Stainless Steel Compressive Load Cell
20-2000n Tension Compression Force Sensor Stainless Steel Compressive Load Cell
Specifications
Brand Name :
FIBOS
Model Number :
FA404
Certification :
ISO CE RoHS
Place of Origin :
Jiangsu, China
MOQ :
To Be Negotiated
Price :
To Be Negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 Pieces per Month
Delivery Time :
1-7 work days
Packaging Details :
1.Opp bag 2.Custom box 3.According to your request
Product name :
Tension Compression Force Sensor
Capacity :
20,50,100,200,500,1000,2000N
Rated output :
2.0±1%mV/V
Non-linearity :
≤0.05%F.S.
Repeatability :
≤0.05%F.S.
Material :
Stainless steel
Description

20-2000N Stainless Steel Tension Compression Force Sensor

1. Descriptions

20-2000N Stainless Steel Tension Compression Force Sensor FA404 is a model of our brand FIBOS FA4-Series, Tension Compression Force Sensor FA404 can be used to measure compression and tension force 20N,50N,100N,200N,500N,1000N and 2000N capacity, its Rated output range is 2.0±1%mV/V, and its Zero Balance range is ±2%F.S..

2. Specifications

Product name Tension Compression Force Sensor
Capacity 20,50,100,200,500,1000,2000N
Rated output 2.0±1%mV/V
Zero Balance ±2%F.S.
Creep(30min) ≤0.05%F.S.
Non-linearity ≤0.05%F.S.
Hysteresis ≤0.05%F.S.
Repeatability ≤0.05%F.S.
Input impedance 650/350±5Ω
Output impedance 650/350±5Ω
Temp.effect on output 0.05%F.S./10 ℃
Temp.effect on zero 0.05%F.S./10 ℃
Insulation resistance ≥5000MΩ/100V(DC)
Recommended excitation 5~12V
Maximum excitation 15V
Compensated Temp Range -10~60 ℃
Operating Temp Range -20~80 ℃
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size ⌀3x3000mm
Weight 0.2kg
Material Stainless steel

3. Dimension

20-2000n Tension Compression Force Sensor Stainless Steel Compressive Load Cell20-2000n Tension Compression Force Sensor Stainless Steel Compressive Load Cell

4. Application

20-2000N Stainless Steel Tension Compression Force Sensor FA404 can be used for platform scales.

5.FAQ

Q1: What is your terms of delivery?

A: EXW, FOB, CFR and CIF.

Q2: Can you produce according to the samples?

A: Yes, we can produce according to your samples or technical drawings.

Q3:What is your sample policy?

A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.

Q4: What's your quality guarantee policy?

A: Quality guarantee: 12 months.

If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.

And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
