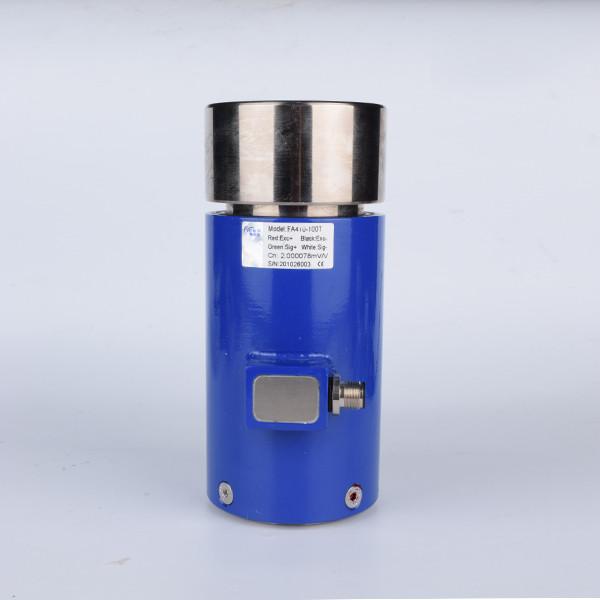

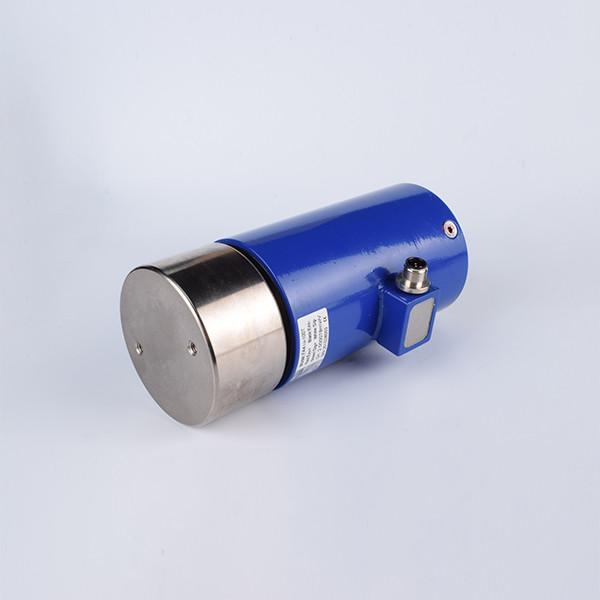

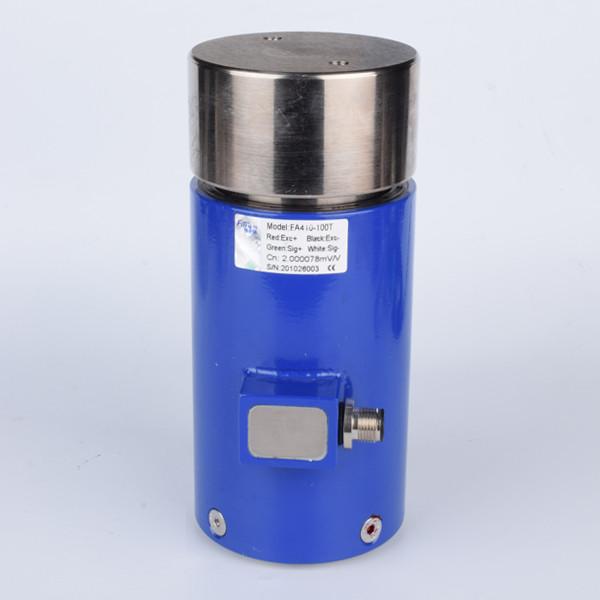

50~500000kN Stainless Alloy Steel Column Type Load Cell IP67 Tensile Compressive Force Sensor
50~500000kN Stainless Alloy Steel Column Type Load Cell IP67 Tensile Compressive Force Sensor
50~500000kN Stainless Alloy Steel Column Type Load Cell IP67 Tensile Compressive Force Sensor
50~500000kN Stainless Alloy Steel Column Type Load Cell IP67 Tensile Compressive Force Sensor
50~500000kN Stainless Alloy Steel Column Type Load Cell IP67 Tensile Compressive Force Sensor
50~500000kN Stainless Alloy Steel Column Type Load Cell IP67 Tensile Compressive Force Sensor
50~500000kN Stainless Alloy Steel Column Type Load Cell IP67 Tensile Compressive Force Sensor
50~500000kN Stainless Alloy Steel Column Type Load Cell IP67 Tensile Compressive Force Sensor
Specifications
Brand Name :
FIBOS
Model Number :
FA410
Certification :
ISO CE RoHS
Place of Origin :
Jiangsu, China
MOQ :
To Be Negotiated
Price :
To Be Negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 Pieces per Month
Delivery Time :
1-7 work days
Packaging Details :
1.Opp bag 2.Custom box 3.According to your request
Product name :
Column Type Load Cell
Capacity :
50~5000,10000,20000,50000kN
Non-linearity :
0.02%,0.05%,0.1%,0.3%F.S.
Material :
Alloy Steel or Stainless Steel
Rated output :
2.0±10%mV/V
Zero Balance :
±1%mV/V
IP Class :
IP67
Operating Temp Range :
-30~70℃
Safe overload :
150%F.S.
Maximum excitation :
15V
Description

Capacity 50~500000kN stainless /alloy steel Column Type Load Cell IP67 Tensile-compressive Force Sensor

1. Descriptions

50,100,200,500,1000,2000,3000,5000,10000, 20000, 50000kN 0.02%,0.05%,0.1%,0.3%F.S. Column Type Load Cell FA410 is a model of Column Type Load Cell, it can measure load from 50kN to 50000kN, we usually use Alloy Steel or Stainless Steel as its material. Its Non-linearity and Repeatability both are 0.02%, 0.05%, 0.1%, 0.3%F.S..

2. Specifications

Product name Column Type Load Cell
Capacity 5000,10000,20000,50000kN
Rated output 2.0±10%mV/V
Zero Balance ±1%mV/V
Non-linearity 0.02%,0.05%,0.1%,0.3%F.S.
Repeatability 0.02%,0.05%,0.1%,0.3%F.S.
Recommended excitation 5~12V
Maximum excitation 15V
Compensated Temp Range -10~60 ℃
Operating Temp Range -30~70 ℃
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size ⌀5.4x6000mm
Material Alloy Steel/Stainless Steel
IP Class IP67

3. Dimension

50~500000kN Stainless Alloy Steel Column Type Load Cell IP67 Tensile Compressive Force Sensor

4. Application

50,100,200,500,1000,2000,3000,5000,10000, 20000, 50000kN 0.02%,0.05%,0.1%,0.3%F.S. Column Type Load Cell could mainly be used in tank weighing.

5.FAQ

Q1: What is your terms of delivery?

A: EXW, FOB, CFR and CIF.

Q2: Can you produce according to the samples?

A: Yes, we can produce according to your samples or technical drawings.

Q3:What is your sample policy?

A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.

Q4: What's your quality guarantee policy?

A: Quality guarantee: 12 months.

If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.

And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
