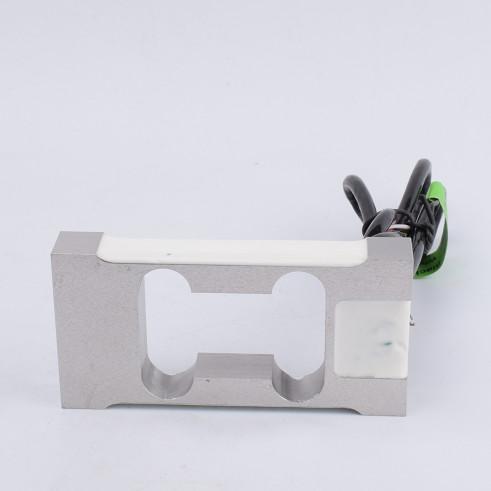

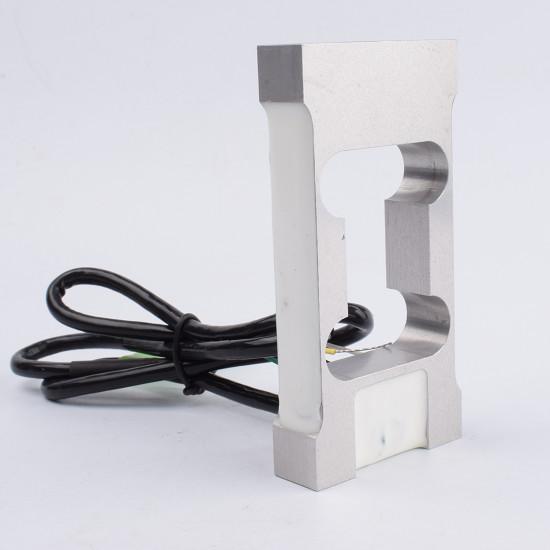

Single Point Load Cell 3-200kg Range Electronic Scale Sensor Aluminum Alloy

1. Descriptions

3, 5, 7.5, 15, 20, 30, 50, 75, 100, 150, 200kg Or Customized Single Point Load Cell FA505 is a model of our brand FIBOS
FA5-Series, Single Point Load Cell FA505 can be used to measure weight 3kg, 5kg, 7.5kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg, 200kg or customized capacity, its material we use Alloy steel, we can also customized material.

Single Point Load Cell FA505 Sensitivity is 2.0±10%mV/V, the Zero Balance is ±0.02mV/V.
Single Point Load Cell FA505 creep(30min) ≤0.017%F.S.. The non-linearity ≤0.0166%F.S.. Hysteresis ≤0.0166%F.S.. Repeatablity ≤0.015%F.S..
Single Point Load Cell FA505 Input impedance is 420±20Ω, the output impedance is 350±10Ω.
Single Point Load Cell FA505 Temp.effect on output is 0.017%F.S./10ºC, Temp.effect on zero is 0.02%F.S./10ºC.
Single Point Load Cell FA505 Insulation Resistance ≥5000MΩ/100V(DV).
Single Point Load Cell FA505 Recommended Excitation is 5-15V, the Maximum Excitation is 20V.
Single Point Load Cell FA505 Compensated Temp Range is -10~40ºC, the Operating Temp Range is -10~50ºC.
Single Point Load Cell FA505 safe overload is 150%F.S.. The ultimate overload is 200%F.S..
The cable size is ∅5.2*1600mm.
The weight is 0.2kg or customized.

2. Specifications

3. Dimension

4. Application

300,600,1000,3000,6000kg;10,30,60,100,300t Or Customized Single Point Weight Sensor FA518 can be used for weighing in industrial automation measurement control systems.
Used for electronic belt scales, silo scales, batching scales, electromechanical combination scales, hook scales, and other force measurement and control, and computer-controlled batching.

5. Packaging & delivery

Packaging Details
1.Opp bag
2.Custom box
3.According to your request

Port: Shanghai

6. Company

Fibos Measurement Technology (Changzhou) Co., Ltd. is a technical service enterprise specializing in force measurement technology research, product R & D, production, sales and service. It is mainly engaged in micro force sensors, high-precision load cells, S-type sensors, cantilever sensors, multi-dimensional force sensors, tension sensors, transmitters R & D and production of control instruments and provide system engineering control solutions. The company has modern and spacious workshops, high-quality production and testing equipment, professional R & D team and perfect management system to provide reasonable and practical solutions for our customers.

With years of understanding and understanding in the field of automation, the company has always adhered to the enterprise operation concept of "user first", built a professional team in the field of automation, and provided customers with stable quality products and pre-sales and after-sales technical services. We always adhere to the tenet of independent innovation, only good products and scientific management, and always adhere to providing perfect products and system solutions, which is highly respected in our field; Constantly change and provide customers with excellent value-added services.

7. Production


8. Exhibition

9. Certification

10.FAQ

Q1: What is your terms of delivery?

A: EXW, FOB, CFR and CIF.

Q2: Can you produce according to the samples?

A: Yes, we can produce according to your samples or technical drawings.

Q3:What is your sample policy?

A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.

Q4: What's your quality guarantee policy?

A: Quality guarantee: 12 months.

If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.

And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
