Silicone Rubber Coated Fiberglass Cloth For Thermal Insulation Valve Cover
Silicone Rubber Coated Fiberglass Cloth For Thermal Insulation Valve Cover
Silicone Rubber Coated Fiberglass Cloth For Thermal Insulation Valve Cover
Silicone Rubber Coated Fiberglass Cloth For Thermal Insulation Valve Cover
Silicone Rubber Coated Fiberglass Cloth For Thermal Insulation Valve Cover
Silicone Rubber Coated Fiberglass Cloth For Thermal Insulation Valve Cover
Silicone Rubber Coated Fiberglass Cloth For Thermal Insulation Valve Cover
Silicone Rubber Coated Fiberglass Cloth For Thermal Insulation Valve Cover
Specifications
Brand Name :
Unionfull
Model Number :
UPSE-8732D80
Certification :
ISO9001:2008, SGS;TUV
Place of Origin :
China
MOQ :
500 Meters
Price :
$2.85-3.40/ Square Meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50000 square meters per day
Delivery Time :
15 Working Days After Receiving Payment
Packaging Details :
50 meters per roll with poly bag
Base Cloth :
3732 Fiberglass Fabric
Coating :
Silicone, 80gsm per side
Total Thickness :
0.55mm
Weight :
430g/m2+80g/m2+80g/m2(coating)
Width :
155cm
Feature :
Thermal Insulation, High Strength, Electric Insulation
Weave :
Satin Weave
Keyword :
silicone coated fiber glass fabric
Description

Silicone Rubber Coated Fiberglass Cloth For Thermal Insulation Valve Cover

This UPSE-8732D80 is 3732 fiberglass base cloth which is coated with 80g/m2 grey silicone coating on two sides. The base fiber glass cloth can withstand 550℃ continuously. While silicone coating can withstand temperature below 260℃.

Silicone coated fiberglass fabric is the most flexible, trackable, and wear resistant fabric. It is made from e-glass woven fiber glass fabric, with properties such as dimensional stability, durability and great tensile strength. Base on silicone coating's properties, this coated fiber glass cloth are always used for fire/welding blanket/curtain, fabric expansion joints/fabric ductwork connector, jacketed vessel insulation covers/exchanger insulation covers and other engineer thermal insulation application.

Yarn type of 3732 fabric is e-glass G37 1/0 0.7Z fiberglass yarn.
Total weight is 590g/m2. 430g/m2+80g/m2 coating per side.
100cm is most common and convenient width we produce. (more economical price and less lead time)

Technical Data Of 3732 Fabric
StyleWeaveThread CountThicknessWeightWidth
3732Plain or Satin

20 Ends/CM

11 Ends/CM

0.4mm430g/m21m


Specification Of UPSE-8732D80:
ItemSilicone Coated Fiberglass Fabric
MaterialE-glass Fiberglass Yarn
WeaveSatin Weave
Warp Density20 Ends/CM
Weft Density11 Ends/CM
Mass Per Unit590g/m2(430+80+80)
Thickness0.55mm
Width100cm
Working Temperature

Silicone Coating below 260℃


Properties:

  • Chemical corrosion resistant
  • Excellent release features
  • High strength but light weight
  • Excellent ear resistance
  • Electric Insulation for silicone coating
  • Working temperature range from -50 degree Celsius to 260 degree Celsius


Application:

  1. Jacketed vessel thermal insulation covers
  2. Cold protection Covers
  3. Fire doors & fire curtains
  4. Cable cover, pump insulation covers
  5. Safety cloth and apron
  6. Fire fighting equipments

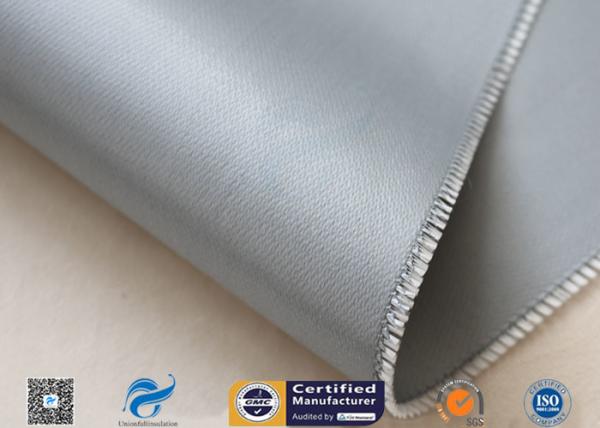

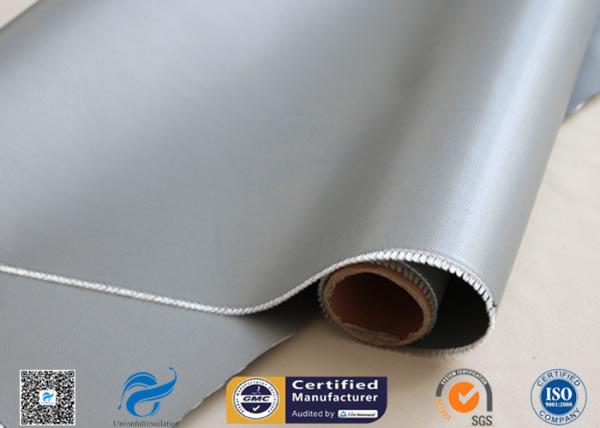

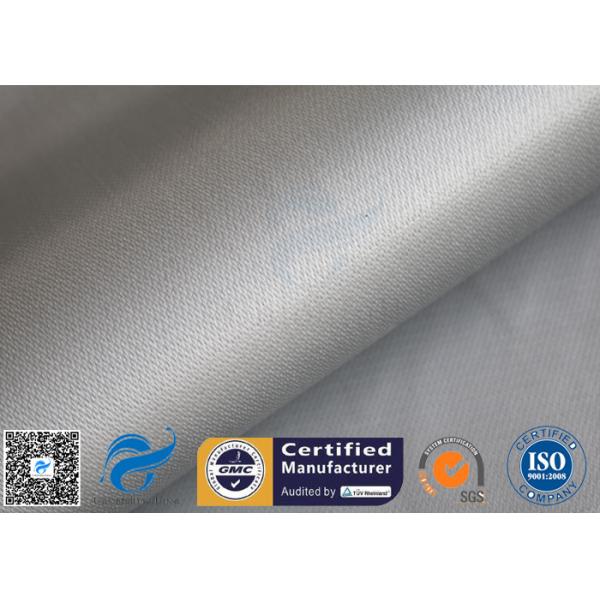

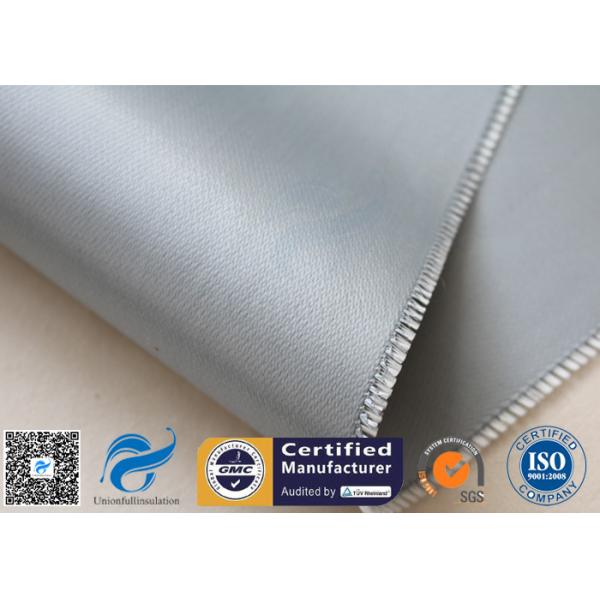

Picture:

Silicone Rubber Coated Fiberglass Cloth For Thermal Insulation Valve CoverSilicone Rubber Coated Fiberglass Cloth For Thermal Insulation Valve Cover


In order to provide the good quality coated fabric in the market, Unionfull manufactures silicone coated fiberglass cloth using high quality raw materials. The timely delivery and unmatched quality we provide is highly praised in the market. Our silicone coated fabric is extraordinary capacity to bare load and high voltage, which is highly suitable for several insulation application.

If you need other specification silicone coated fabric, please contact us for more requirement. Customized order is acceptable. Look forward to your inquiries!

Features:

  • Excellent chemical resistance
  • Excellent mechanical strength
  • Resistance to ozone
