Chemical Resistant Alkali Free Satin Weave 590g Silicone Coated Fiberglass Fabric

Silicone Coated Fiberglass Fabric is an alkali-free thermal insulation material made of glass fiber. Glass fiber cloth is an indispensable insulating banding material for motors and electrical because of its excellent insulation performance and high temperature resistance. It allows the motor to achieve superior insulation performance, extend the life of the motor, reduce the size and weight.

The weave pattern of this type is Four Harness Satin ---- there is a three by one interlacing, where a fill yarn floats over three warp yarns and under one. In this weave pattern, it is more pliable than the plain weave and easier to conform to curved surface typical in reinforced plastics.

UPSE-8732D160 is 80/80 two sides coating, with the 430g basic weight, total weight is 590g/m2.

DATA:

Properties:

1.High temp. from -50~260℃

Glass fiber fabric has flame retardant properties not found in other fabrics, can be flame retardant material for fire blanket,fire curtains

2.Anti-corrosion

Silicone coated fiberglass fabric is good to be used as inner and outer anti-corrosion layer featuring excellent corrosion resistance, temperature resistance and high strength.It proves to be an ideal anti-corrosion material.

3.High strength

It does not require reinforcement for natural tear resistance, has significant wind resistance and is subject to frequent mechanical properties.

4.Excellent insulation

It allows the motor to achieve superior insulation performance, extend the life of the motor, reduce the size and weight

5.Chemical resistant

Resistant to strong acids, alkalis, aqua regia and various organic solvents

6.Low thermal conductivity:0.035W/M·K—0.045 W/M·K±0.005

Applications:

1.Construction

Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc. It is an ideal engineering material for the construction industry.

2.Electrical insulation: Silicone cloth has a high electrical insulation grade, can withstand high voltage load, and can be made into insulation cloth, casing and other products.

3.Welding blanket/ fireproof blanket

The fiberglass cloth is suitable for use in places such as welding and sparking, which may cause fire alarms. It can resist spark splash, slag, welding spatter, etc., and can isolate the task, separate the task layer, and eliminate the fire risk that can be caused by the welding task.

4.Industry
Silicone coated fiberglass fabric is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flame and prevents the flame from passing through and isolating the air.

5.Anti-corrosion: Silicone rubber coated glass fiber cloth can be used as a pipeline, saving internal and external anti-corrosion layer, excellent anti-corrosion performance and high strength, it is an ideal anti-corrosion material.

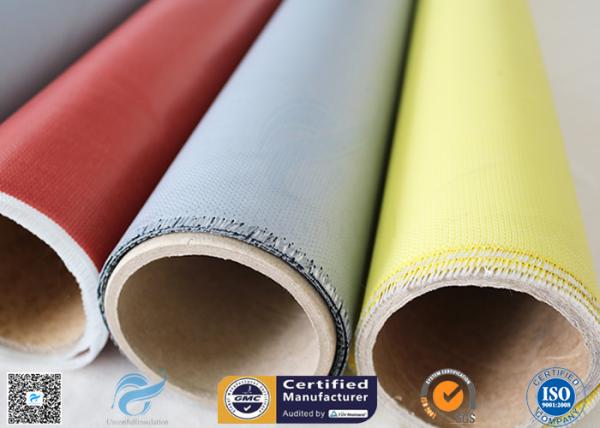

Pictures:
