High Silica Fabric 36OZ White 1.3MM 1200℃ High Temperature Furnace Door Lining
High Silica Fabric 36OZ White 1.3MM 1200℃ High Temperature Furnace Door Lining
High Silica Fabric 36OZ White 1.3MM 1200℃ High Temperature Furnace Door Lining
High Silica Fabric 36OZ White 1.3MM 1200℃ High Temperature Furnace Door Lining
High Silica Fabric 36OZ White 1.3MM 1200℃ High Temperature Furnace Door Lining
High Silica Fabric 36OZ White 1.3MM 1200℃ High Temperature Furnace Door Lining
High Silica Fabric 36OZ White 1.3MM 1200℃ High Temperature Furnace Door Lining
High Silica Fabric 36OZ White 1.3MM 1200℃ High Temperature Furnace Door Lining
Specifications
Brand Name :
Unionfull
Model Number :
UPH-8120
Certification :
ISO9001:2008, SGS;TUV
Place of Origin :
China
MOQ :
100 meters
Price :
$9.99--$12/ meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
53,000 Square Meters Per Day
Delivery Time :
2 weeks after receiving payment
Packaging Details :
50m one roll in carton
Material :
High Silica Cloth
SiO2 :
＞96%
Area Weight :
1200g/m2, 36oz/sq.yd
Width :
91.44cm (36inches)
Length :
50m one roll
Work Temperature :
1200℃ (2192℉)
Description

High Silica Fabric 36OZ White 1.3MM 1200℃ High Temperature Furnace Door Lining

High silica cloth with more than 96% SiO2 content is a high temperature resistant material which is able to withstand continuous heat below 1200℃. This fireproof silica cloth is woven in satin weave. Its weight per unit area is 36oz/sq.yd (1200g/m2) and thickness is 1.3mm. Standard width of high silica fabric is 36 inches or 39 inches. Roll length is 50 meters.

Softening point of 1200GSM high silica cloth is close to 1700℃. And its continuous work temperature is 1200℃. Except for heat insulation, high silica fabric is durable, chemical resistant, oil&chemical resistant. It can be used for industrial furnace kiln, reformer and boiler lining, Investment casting mold wrap, laboratory ovens.

Specification

Items High Silica Cloth
SiO2 ＞96%
Area Weight 1200g/m2, 36oz
Thickness 1.3mm
Color White
Weave Type Satin (3x1 Twill)
Width 36 inches
Work Temperature 1200°C

Features

  1. SiO2 content 96%
  2. Flame, heat resistant
  3. Heavy duty, abrasion resistant
  4. Chemical resistant
  5. Non-asbestos, 100%
  6. Non toxic, eco-friendly

Applications

  • Electrical insulation cover

  • Sparks welding protection

  • Removable insulation pads

  • Furnace repair

  • Hot works operations

  • Other fire control systems

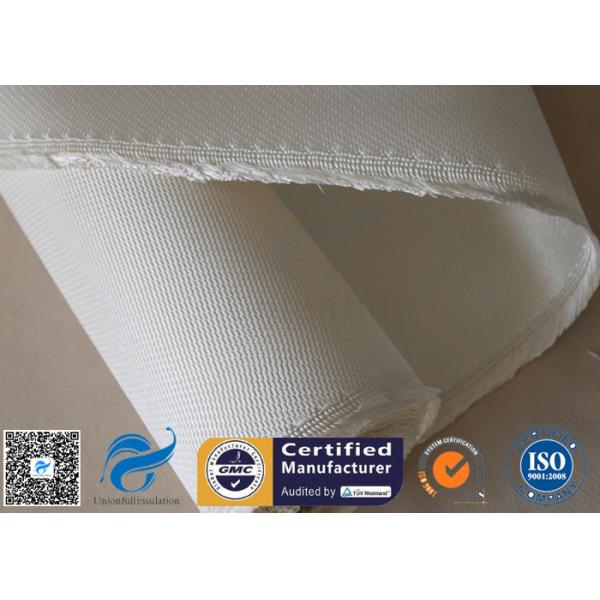

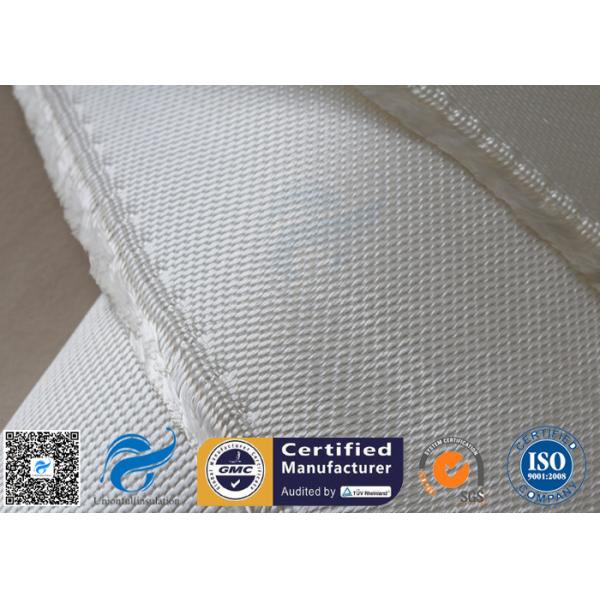

Pictures

High Silica Fabric 36OZ White 1.3MM 1200℃ High Temperature Furnace Door LiningHigh Silica Fabric 36OZ White 1.3MM 1200℃ High Temperature Furnace Door Lining
