25MM Thermal Insulation Jacket Grey Electrical Actuator Removable Blanket
25MM Thermal Insulation Jacket Grey Electrical Actuator Removable Blanket
25MM Thermal Insulation Jacket Grey Electrical Actuator Removable Blanket
25MM Thermal Insulation Jacket Grey Electrical Actuator Removable Blanket
25MM Thermal Insulation Jacket Grey Electrical Actuator Removable Blanket
25MM Thermal Insulation Jacket Grey Electrical Actuator Removable Blanket
25MM Thermal Insulation Jacket Grey Electrical Actuator Removable Blanket
25MM Thermal Insulation Jacket Grey Electrical Actuator Removable Blanket
Specifications
Brand Name :
Unionfull
Model Number :
UNP8IJG-A-25
Certification :
ISO9001:2008, SGS;TUV
Place of Origin :
China
MOQ :
50PCS
Price :
$20--$45 one piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
3,000 PCS Per Day
Delivery Time :
3 weeks after receiving payment
Packaging Details :
10-12 pcs in woven bag
Materials :
Fiber glass cloth + needle mat
Thickness :
25mm
Color :
Grey
Inside Size :
Customized
Open :
Fire Retardant Velcro
Temperature :
-50 to 260℃
Description

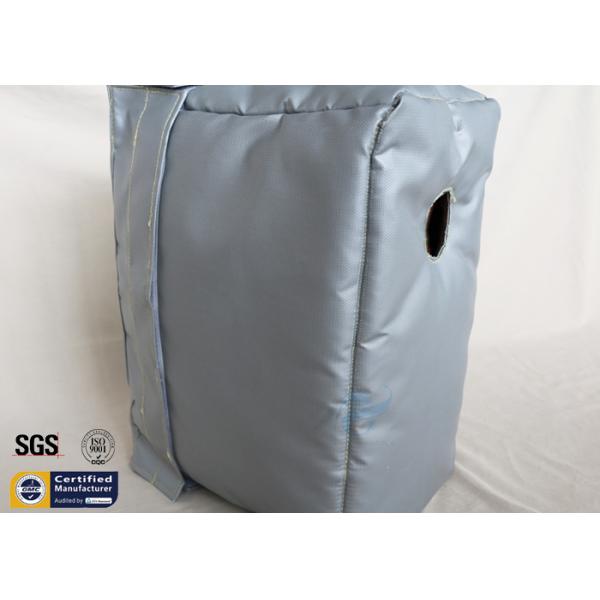

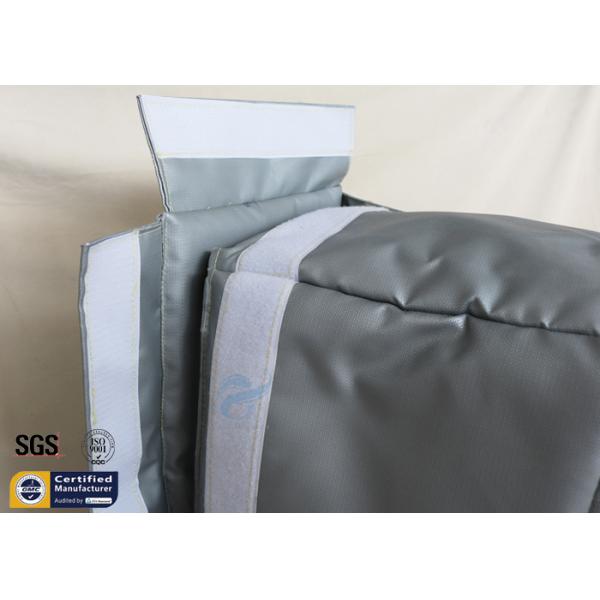

25MM Thermal Insulation Jacket Grey Electrical Actuator Removable Blanket


Removable thermal insulation jacket is designed to warp pumps, filters, valves, pipe, turbine and actuators. It is made of heat resistant silicone coated fiberglass fabric and needle mat.

Silicone fiberglass cloth is weighed at 510g/m2 and it is 0.43mm. This coated fabric is heat resistant, oil&moisture resistant, electrical insulation. With coating on two sides, glass fiber cloth is still flexible and easy to fabricate without fraying. This coated fabric is able to withstand heat below 260℃. Inside wadding material e-glass needle mat is great material for thermal insulation. This thick material can resist continuous heat below 800℃. E-glass needle mat is anti corrosion, chemical agents.


Fiberglass insulation blanket can keep the inside equipment at stable work temperature and eliminate heat loss effectively. It is available for quick removal and re-application, the engine exhaust covers, insulation blanket can be used in heat-exchanger rooms, boiler rooms, etc. Standard closure is fire retardant velcro and metal buckle. With this removable insulation mattress, workers won't feel itchy or be injured.

Data Sheet

Item Name Removable Thermal Insulation Mattress
Fit Actuator
Weight 3KG
Thickness 25mm
Size Customized
Outside Materials Name Silicone Coated Fiberglass Cloth
Work Temperature Fiberglass Cloth: 550℃
Silicone Coating:260℃
Inside Materials Name Fiberglass Needle Mat
Work Temperature 800℃ Continuously


IR Test


IR Test result of removable jacket showed that when the temperature inside of the equipment goes up to 300℃ continuously, the surface of jacket is below 32℃.


Features

  • Removable, easy to install
  • Continuous high temperature resistant
  • Low heat loss
  • Low surface temperature, ＜ 40℃ continuously
  • No irritating
  • Chemical, oil resistant
  • Anti moisture


Images

25MM Thermal Insulation Jacket Grey Electrical Actuator Removable Blanket

25MM Thermal Insulation Jacket Grey Electrical Actuator Removable Blanket
