120GSM Surfboard Fiberglass Cloth 4OZ 27 100M E Glass Fabric Transparent
120GSM Surfboard Fiberglass Cloth 4OZ 27 100M E Glass Fabric Transparent
120GSM Surfboard Fiberglass Cloth 4OZ 27 100M E Glass Fabric Transparent
120GSM Surfboard Fiberglass Cloth 4OZ 27 100M E Glass Fabric Transparent
120GSM Surfboard Fiberglass Cloth 4OZ 27 100M E Glass Fabric Transparent
120GSM Surfboard Fiberglass Cloth 4OZ 27 100M E Glass Fabric Transparent
120GSM Surfboard Fiberglass Cloth 4OZ 27 100M E Glass Fabric Transparent
120GSM Surfboard Fiberglass Cloth 4OZ 27 100M E Glass Fabric Transparent
Specifications
Brand Name :
Unionfull
Model Number :
UNP8120W-12-70
Certification :
ISO9001:2008, SGS;TUV
Place of Origin :
China
MOQ :
109.36 yards (100m)
Price :
$0.69-0.99/ Meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
52,000 square meter per day
Delivery Time :
One week after receiving payment
Packaging Details :
One roll 100m in carton
Type :
Fiberglass Cloth
Yarn :
E-glass
Weight :
120gsm
Length :
100m one roll
Resin :
Epoxy and polyester
Weave :
Plain
Description

120GSM Surfboard Fiberglass Cloth 4OZ 27" 100M E Glass Fabric Transparent


4oz e-glass fiberglass fabric is a light weight, high temperature resistant plain weave cloth. It owns high tensile strength and flexibility and it is able to provides great strength and fabrication. 4oz, 6oz and 8oz are standard specification for surfboard glassing/laminating. These economical material with tear resistance and durability can keep the surfboard in high strength but low weight.

When do the fiber glassing, sevaral layers of 4oz or 6oz e-glass fabrics are used to the surfboard deck. Typically it is 3 layers totally: two on the top and one on the bottom. 4oz e-glass fiber cloth is mainly used for shortboard so standard width of 4oz is 27.5 inches. Unionfull roll length of 4oz 120GSM fiberglass fabric is 100 meters.

Density or yarn count of fiberglass cloth will be a little different between two countries. However, Unionfull can promise the high strength and quality. Our customers from Australia, Brazil, Mexico and Spain all confirm its quality.

Data Sheet

Unionfull is able to produce the fabric as the customer required.

Item Surfboard Fiberglass Cloth
Yarn Type E-glass
Weave Plain
Yarn G150 1/2, G150 1/2
Count Per CM 9.6 / 8.7
Area Weight 4oz / sq.yd
Thickness 0.12mm
Width 27.5 Inches (70CM)
Length 100m / roll
Continuous Work Temperature -50 to 550℃



Properties

  1. High tensile strength, low weight
  2. Abrasion resistance, tear resistance
  3. Chemical agents resistance
  4. Corrosion resistance
  5. Easily to be wet out
  6. Easy to fabricate


Application

  • Surfboard boat building
  • Printed circuit board insulation cloth
  • Pipe anti-corrosion
  • Septic tank, pool building
  • Wire cable electronic insulation​ cover fabric


Pictures

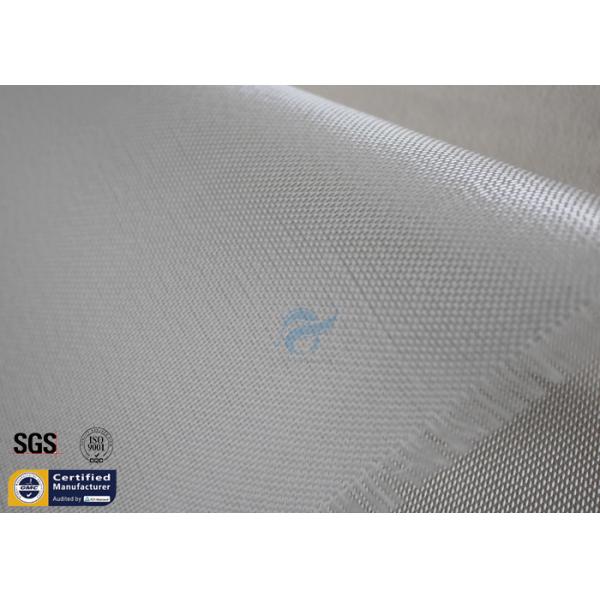

120GSM Surfboard Fiberglass Cloth 4OZ 27

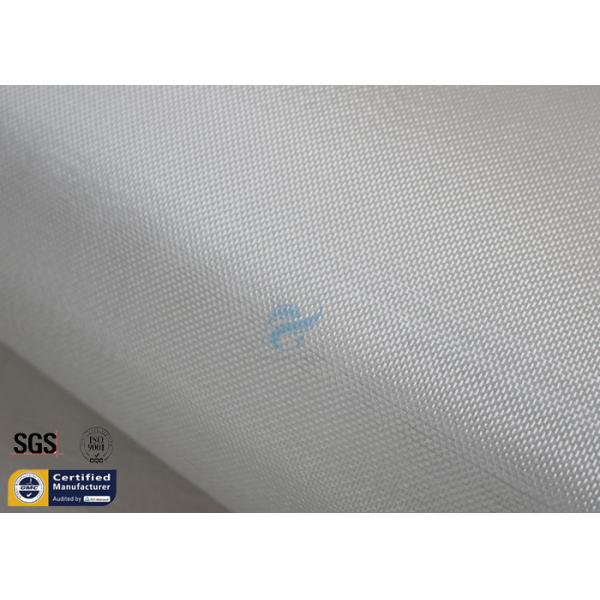

120GSM Surfboard Fiberglass Cloth 4OZ 27
