Silver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe Insulation
Silver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe Insulation
Silver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe Insulation
Silver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe Insulation
Silver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe Insulation
Silver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe Insulation
Silver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe Insulation
Silver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe Insulation
Specifications
Brand Name :
Unionfull
Model Number :
UPEAL-8732
Certification :
ISO9001:2008, SGS;TUV
Place of Origin :
China
MOQ :
100m
Price :
$2.3--$3.85/ meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
47,000 Square Meters Per Day
Delivery Time :
2 weeks
Packaging Details :
One roll in fiberglass fabric packing
Base :
3732 fiberglass cloth
Laminate :
Aluminium Foil
Area Weight :
430g/m2
Thickness :
0.43MM
Roll Length :
50 meters
Temperature :
300℃
Description

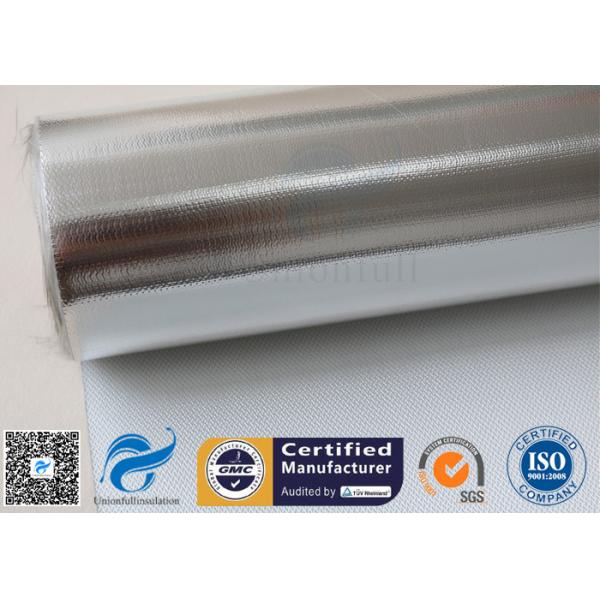

Silver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe Insulation



Aluminium foil fiberglass fabric is made of 430gsm satin weave fiber glass fabric laminated with a layer of aluminium foil by high temperature adhesive. Yarn count of silver coated fabric is 18/13 per cm. Fiber glass cloth is able to withstand continuous heat below 550℃. The high temperature adhesive can resist heat below 300℃.

Aluminized fiberglass cloth provides superior properties in a wide range of temperatures. What's more, it is oil resistant, waterproof, anti chemical agents, corrosion resistant and heat reflective. This cloth is widely used for insulation materials like pipe insulation and heat protective layer of glass wool.

Data Sheet

  • Thickness of alu. foil: 7um, 18um, 25um, 50um(max)
  • Width: 101.6cm/121.9cm/152.4cm
  • Roll Length: 50-100m

Material Aluminium Foil Fiberglass Fabric
Weave Satin
Yarn Tex Warp EC9 33 2X2
Weft EC9 33 2X2
Total Weight 430 gsm
Thickness 0.43 mm
Aluminium Foil Thick 7micron/18micron/25micron

Tensile

Strength

 Warp 6000 N/5cm
Weft 4500 N/5cm
Standard Width 1000mm
Work Temperature

Fibreglass Cloth: 550℃

Adhersive: 300℃



Features

  1. Heat Reflective
  2. Waterproof
  3. Anti Corrosion
  4. Chemical&Oil Resistant
  5. Low Moisture Absorption
  6. Electrical Insulation
  7. High Strength

Application

  • Spark foil faced insulation
  • Oven insulation material
  • Kiln heat insulation
  • Petroleum Refineries
  • Eco friendly insulation
  • Expansion joint, removable insulation jacket

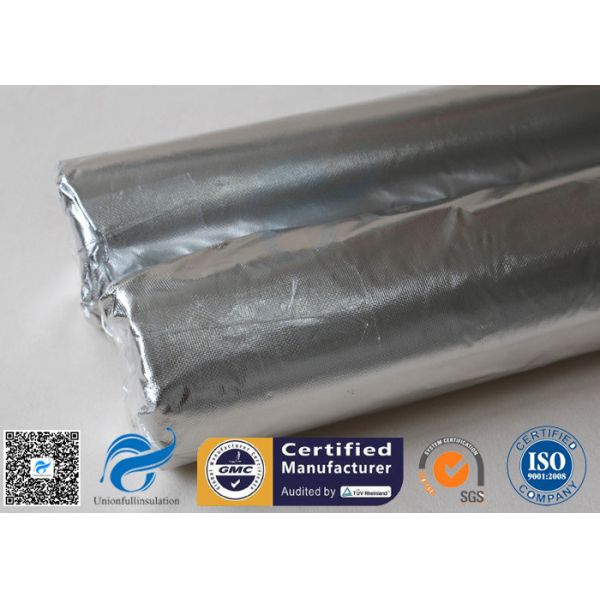

Packing Images

Silver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe InsulationSilver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe Insulation
