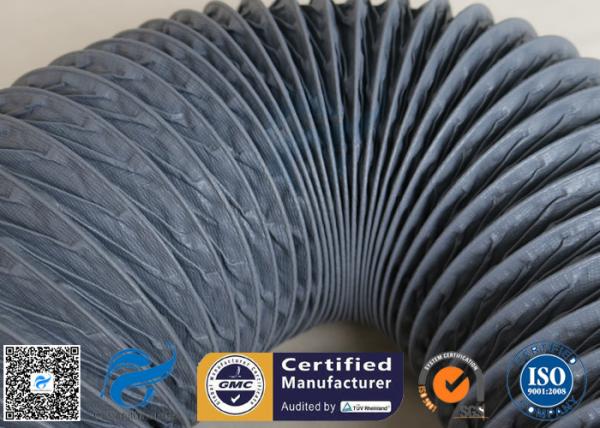

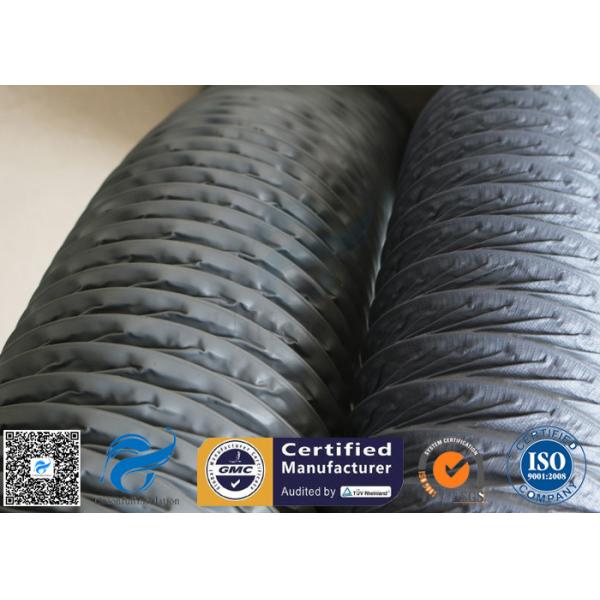

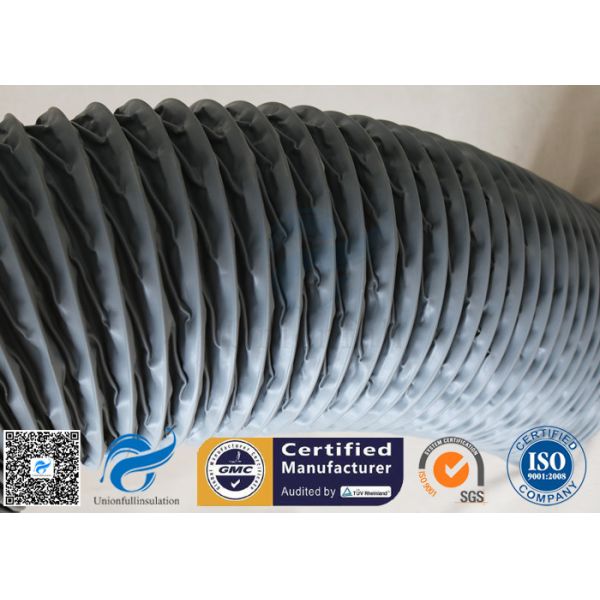

PVC Coated Fiberglass Fabric 150MM HVAC Flexible Air Ducts 10M Grey 260℃
PVC Coated Fiberglass Fabric 150MM HVAC Flexible Air Ducts 10M Grey 260℃
PVC Coated Fiberglass Fabric 150MM HVAC Flexible Air Ducts 10M Grey 260℃
PVC Coated Fiberglass Fabric 150MM HVAC Flexible Air Ducts 10M Grey 260℃
PVC Coated Fiberglass Fabric 150MM HVAC Flexible Air Ducts 10M Grey 260℃
PVC Coated Fiberglass Fabric 150MM HVAC Flexible Air Ducts 10M Grey 260℃
PVC Coated Fiberglass Fabric 150MM HVAC Flexible Air Ducts 10M Grey 260℃
PVC Coated Fiberglass Fabric 150MM HVAC Flexible Air Ducts 10M Grey 260℃
Specifications
Brand Name :
Unionfull
Model Number :
UNP8ACG-150-10
Certification :
ISO9001:2008, SGS;TUV
Place of Origin :
China
MOQ :
10PCS
Price :
US $2 - 10 / meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10,000 meters per day
Delivery Time :
2 weeks after receiving payment
Packaging Details :
Poly bag, woven bag
Material :
Fiberglass Fabric, Steel Spiral Wire
Coating :
Grey PVC
Diameter :
150mm
Length :
10 meters
Color :
Grey or others
Work Temperature :
-50 to 260℃
Description

PVC Coated Fiberglass Fabric 150MM HVAC Flexible Air Ducts 10M Grey 260℃

Flexible air duct is extremely high strength and durable with PVC coated fiber glass cloth bonded to a spring steel wire helix. ​PVC coated fibreglass cloth is a fire heat resistant and tear resistant woven fabric. This flame resistant glass cloth is anti chemical agents, corrosion resistant, waterproof, oil resistant and abrasion resistant. Besides, it has electrical insulation and stable dimension. This ready made fabric air hose pipe duct is usually used for flexible ducting installation.

Fiberglass fabric air duct is designed as superior alternative in pressure heating and cooling systems. It is a economical solution to air handling application. Its material is so flexible that it is very easy to fabricate and install. It satisfies various industry’s increasing demand. Its continuous work temperature is -50 to 260℃, its basic fiberglass fabric can withstand heat below 550 degree centigrade.

Specification

  1. Diameter of fabric air ducy is from 50mm to 600 mm.
  2. Max. working pressure of this duct is 3,000Pa.
  3. Max. air velocity: 30 m/s.
  4. Length can be 5m or 10m (10m -short lead time).

Items PVC Fiberglass Flexible Air Duct
Material

Fibre Glass Cloth

Spring Steel Wire Helix
Material Thickness 0.25mm
Diameter 150mm
Color Grey
Duct Length 10m
Temperature

PVC Coating: below 260 ℃

Fiberglass ≤550℃

Features

  • -50 to 260℃ heat insulation
  • Flame protection, waterproof
  • Light weight, Flexible
  • Tear resistant, durable
  • Anti chemical agents
  • Save installation cost
  • Long length, less waste
  • All parts are non combustible

Application

  1. Energy insulation
  2. Dust control
  3. Air handling
  4. Fume control
  5. Ventilation of hot work place
  6. Hot air distribution
  7. HAVC air pipe hose


PVC Coated Fiberglass Fabric 150MM HVAC Flexible Air Ducts 10M Grey 260℃PVC Coated Fiberglass Fabric 150MM HVAC Flexible Air Ducts 10M Grey 260℃
