PTFE Coated Fiberglass Mesh Fabric 580GSM 4X4MM Industrial Dryer Conveyor Belt
PTFE Coated Fiberglass Mesh Fabric 580GSM 4X4MM Industrial Dryer Conveyor Belt
PTFE Coated Fiberglass Mesh Fabric 580GSM 4X4MM Industrial Dryer Conveyor Belt
PTFE Coated Fiberglass Mesh Fabric 580GSM 4X4MM Industrial Dryer Conveyor Belt
PTFE Coated Fiberglass Mesh Fabric 580GSM 4X4MM Industrial Dryer Conveyor Belt
PTFE Coated Fiberglass Mesh Fabric 580GSM 4X4MM Industrial Dryer Conveyor Belt
PTFE Coated Fiberglass Mesh Fabric 580GSM 4X4MM Industrial Dryer Conveyor Belt
PTFE Coated Fiberglass Mesh Fabric 580GSM 4X4MM Industrial Dryer Conveyor Belt
Specifications
Brand Name :
Unionfull
Model Number :
UNP8580TB-44-190
Certification :
ISO9001:2008,SGS;FDA
Place of Origin :
China
MOQ :
50 Meters
Price :
$4.6--10 / M2
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
40,000 Square Meters Per Day
Delivery Time :
2 weeks after receiving payment
Packaging Details :
One roll in poly bag, carton.
Type :
Fiberglass Open Mesh
Mesh :
4x4mm
Coated Mesh Weight :
580g/m2
Coating :
Polytetrafluoroethylene
Width :
4m max
Temperature :
-50 to 260℃ continuously
Description

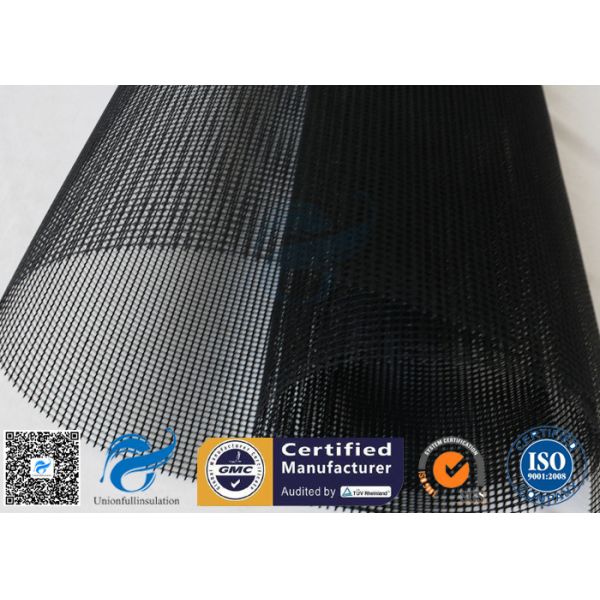

PTFE Coated Fiberglass Mesh Fabric 580GSM 4X4MM Industrial Dryer Conveyor Belt

Industrial dryer conveyor belt is made of 580gsm 1mm thick PTFE coated fiberglass open mesh in 4x4mm mesh size. THe coating is black color PTFE. Fiber glass open mesh is a high strength and abrasion resistant material. It is fireproof and heat resistant. Its work temperature is -50 to 260℃ continuously (PTFE coating). Besides, this belt is non stick, chemical resistant, anti corrosion and non toxic.

Fiberglass conveyor belt open mesh is single weft or double weft. Double weft one has higher strength and longer using life. Also it is used more wide than single weft in most industrial conveyor application.

For final use, edge reinforcement and joint is common. PTFE film or PTFE coated fiberglass fabric reinforcement are common used. Spiral joint or bull nose joint are two main joint way.

Features

  • heat resistant, - 50°C to 260°C
  • abrasion resistant
  • light weight
  • high tensile strength
  • non stick, can be food grade
  • anti chemical corrosion
  • microwave, UV resistant

Specification

Open mesh can be 1mmx1mm, 2mmx2.5mm, 4mmx4mm and 10mmx10mm

Mesh Size Materials Thickness Weight Temperature Width(max)
1x 0.5mm Fiberglass 0.65mm 560g /m 2 -70 -260 ℃ 3.25m
1x 1mm Fiberglass 0.65mm 520g /m 2 -70 -260 ℃ 3.55m
2x 2.5mm Fiberglass 0.7mm 640g /m 2 -70 -260 ℃ 3.65m
4x 4mm Fiberglass 1.0mm 580g /m 2 -70 -260 ℃ 4.2m
4x 4mm Fiberglass 1.3mm 740g /m 2 -70 -260 ℃ 3.85m
10x 10mm Fiberglass 0.9mm 415g /m 2 -70 -260 ℃ 3.55m
4x 4mm Kevlar+Fiberglass 1.5mm 934g /m 2 -70 -260 ℃ 2.75m
4x 4mm Kevlar 1.2mm 600g /m 2 -70 -260 ℃ 4m

Applications

  • Screen printing dryers
  • Tortilla presses belt
  • Packaging machinery, sealing machines
  • Shrink tunnels
  • Rubber profile extrusion

Pictures

PTFE Coated Fiberglass Mesh Fabric 580GSM 4X4MM Industrial Dryer Conveyor Belt

PTFE Coated Fiberglass Mesh Fabric 580GSM 4X4MM Industrial Dryer Conveyor Belt
