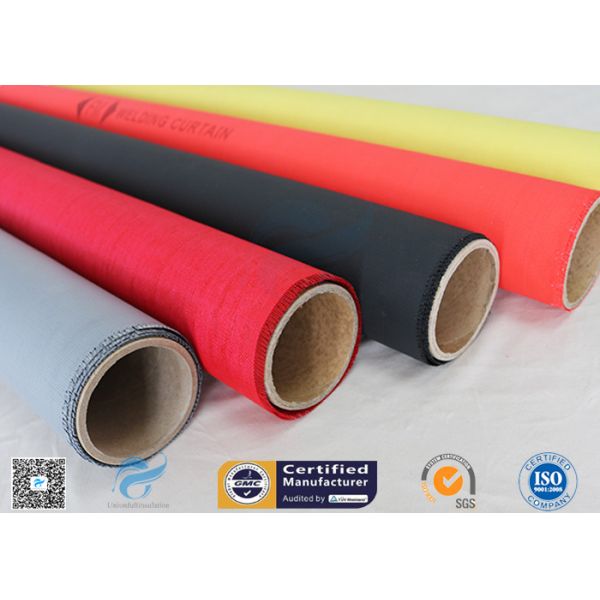

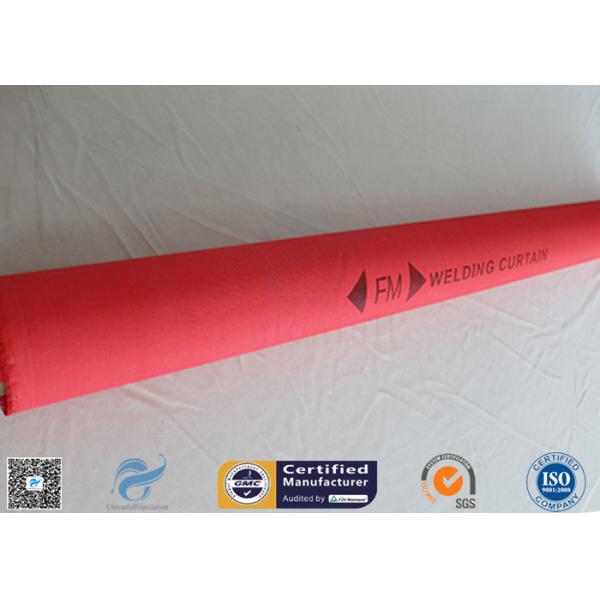

Heat Resistant Thermal Insulation 590g C-glass Silicone Coated Fiberglass Fabric

E-glass fiber has a small dielectric loss and a small dielectric loss under the action of AC voltage. It is an insulating material suitable for high frequency and high voltage operation.In addition, E-glass fiber is suitable for the manufacture of thermal insulation materials with different heat resistance grades, and also a good reinforcing material.

The alkali-free glass fiber and its fabric have good heat resistance, and maintain high electrical insulation properties and tensile strength at a temperature of 200 ° C. At the same time, it is also an insulating material with excellent properties and no volatile substances at high temperatures.

Data:

Properties:

1.Low thermal conductivity: 0.035W/M·K—0.045 W/M·K±0.005 (at normal temperature)

2.Good heat resistance Glass fiber has good heat resistance. With the increase of the content of high melting point components such as SiO 2 , ZrO 2 , Al 2 O 3 , CrO 3 , the heat resistance of the fiber is correspondingly increased, for example, the high silica fiber having a SiO 2 content of 96% (mass fraction), and the use temperature is 1000 ° C.

3.Elongation The elongation of glass fibers is generally 3% to 4%, which is much smaller than other natural and synthetic fibers.

4.Temperature resistance 280 ° C, resistant to aging. Used for low temperature -70 ° C to high temperature 280 ° C, good insulation performance.

5.High tensile strength, especially high temperature retention strength, is an important characteristic of E glass fiber

6.Electrical properties Alkali-free glass fiber has high insulation resistance, good dielectric properties, low hygroscopicity and high temperature resistance. It is an electrical insulating material in the electromechanical industry with remarkable effects.

Application:

1. Glass fiber cloth is generally used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.

2. glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc. It is an ideal engineering material for the construction industry.

3. Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.

4.In the mechanical industry, artificial teeth and artificial bones, aircraft structures, mechanical parts, and the like are applied.

5. Tennis rackets, fishing rods, bows and arrows, swimming pools, bowling places, etc. in daily life will also be used.

Pictures:
