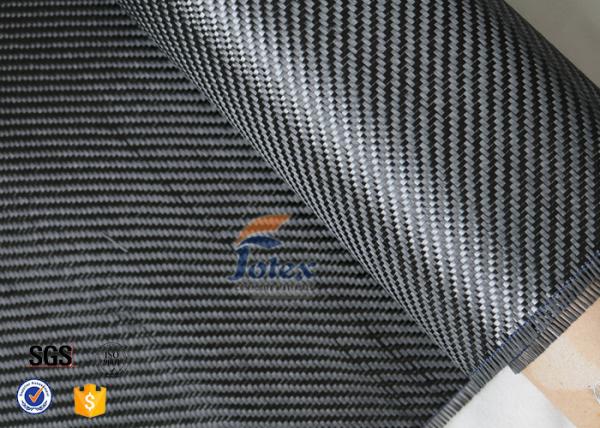

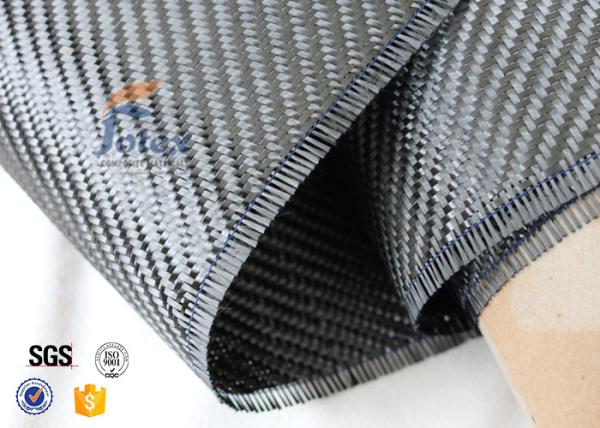

3K 200g Twill And Plain Weave Carbon Fiber Fabric For Surface Decoration
3K 200g Twill And Plain Weave Carbon Fiber Fabric For Surface Decoration
3K 200g Twill And Plain Weave Carbon Fiber Fabric For Surface Decoration
3K 200g Twill And Plain Weave Carbon Fiber Fabric For Surface Decoration
3K 200g Twill And Plain Weave Carbon Fiber Fabric For Surface Decoration
3K 200g Twill And Plain Weave Carbon Fiber Fabric For Surface Decoration
3K 200g Twill And Plain Weave Carbon Fiber Fabric For Surface Decoration
3K 200g Twill And Plain Weave Carbon Fiber Fabric For Surface Decoration
Specifications
Brand Name :
Unionfull
Model Number :
JT8200T-3K-100
Certification :
ISO9001:2008, SGS
Place of Origin :
China
MOQ :
500 Meters
Price :
$12.5-13.17/ Square Meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50000 square meters per day
Delivery Time :
15 Working Days After Receiving Payment
Packaging Details :
50 meters per roll with poly bag
Fabric :
3K Carbon Fiber Fabric
Weight :
200g/m2
Thickness :
0.3mm
Weave :
Twill Weave
Width :
100cm
Yarn Count :
5/5
Feature :
Thermal Insulation, Electric Insulation
Keyword :
3k 200g carbon fiber fabric
Description

3K 200g Twill And Plain Weave Carbon Fiber Fabric For Surface Decoration


Carbon fiber fabric is made from carbon fibers by woven unidirectional, plain or twill style. Carbon fabrics are thermal and electrical insulation and perform great resistance. When correct engineered, carbon fabric composites can reach the strength and stiffness of metals at significant weight savings. Carbon fiber fabrics are easy to combine with various resin including epoxy, polyester and vinyl ester resins.

Carbon fiber fabric is the most commonly used composite fabric in industrial area, usually for surface decoration and reinforcement. It has great features of light weight, durable, high modulus, high temperature resistance and abrasion corrosion resistance. Better than those of steel and aluminum materials. The products made of carbon fiber have great physical and chemical properties, making this fabric widely applied in different fields.


Yarn type of this 3K 200g carbon fiber fabric is 3K carbon fibers. The woven fabric is weighed at 200g/m2. Weave type of this 3K fabric is twill weave. Thread count is 5/5. Thickness of this fabric can be 0.3mm. Width can be customized, 100cm is very common and convenient width which are available. (more economical price and less lead time)

Technical Data
Style Weave Thread Count Thickness Weight Width
3K Twill

5/5

 0.3mm 200g/m2 1m


Specification Of JT8200T-3K-100:
Item 3K Carbon Fiber Fabric
Material 100% Carbon Fibers
Weave Twill Weave
Warp Density 20 Ends/CM
Weft Density 11 Ends/CM
Mass Per Unit 200g/m2
Thickness 0.3mm
Width 100cm
Working Temperature

Silicone Coating below 260℃


Features:

1. High stiffness;


2. High tensile strength;


3. Low weight;


4. High chemical resistance;


5. High temperature tolerance;


6. Low thermal expansion;


7. High Young’s modulus (i.e., high stiffness or resistance to extension under load);


8. High thermal conductivity


Application:

  • Aerospace
  • Wind power
  • Marine
  • Automobile decoration
  • Sports equipment
  • Medical machine

Specification Data Sheet:

Type Yarn Construction Fiber Count Weight (g/m2) Thickness (mm) Width (cm)
Warp Weft Warp Weft
JT8180P 3K 3K Plain 4.5 4.5 180 0.28 50-150
JT8200P 3K 3K Plain 5 5 200 0.3 50-150
JT8200T 3K 3K Twill 5 5 200 0.3 50-150
JT8240P 3K 3K Plain 6 6 240 0.32 50-150
JT8240T 3K 3K Twill 6 6 240 0.32 50-150
JT8280P 3K 3K Plain 7 7 280 0.34 50-150
JT8280T 3K 3K Twill 7 7 280 0.34 50-150
JT8320P 3K 3K Plain 8 8 320 0.36 50-150
