Silicone Coated Fiberglass Fabric Thermal Insulation Materials 1010GSM 51
Silicone Coated Fiberglass Fabric Thermal Insulation Materials 1010GSM 51
Silicone Coated Fiberglass Fabric Thermal Insulation Materials 1010GSM 51
Silicone Coated Fiberglass Fabric Thermal Insulation Materials 1010GSM 51
Silicone Coated Fiberglass Fabric Thermal Insulation Materials 1010GSM 51
Silicone Coated Fiberglass Fabric Thermal Insulation Materials 1010GSM 51
Silicone Coated Fiberglass Fabric Thermal Insulation Materials 1010GSM 51
Silicone Coated Fiberglass Fabric Thermal Insulation Materials 1010GSM 51
Specifications
Brand Name :
Unionfull
Model Number :
UPSE-8784D160
Certification :
ISO9001:2008, SGS
Place of Origin :
China
MOQ :
500 Meters
Price :
$4.6--5/ Square Meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50,000 square meters per day
Delivery Time :
20 Working Days
Packaging Details :
50 meters one roll
Material :
850gsm Fiberglass Cloth
Coating :
Red Silicone, 80/80
Weight :
1010g/m2
Width :
1.27m
Weave :
8H Satin
Thickness :
1mm
Description

Silicone Coated Fiberglass Fabric Thermal Insulation Materials 1010GSM 51"

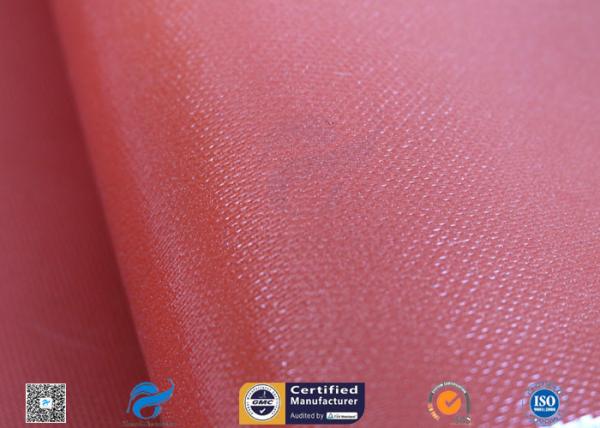

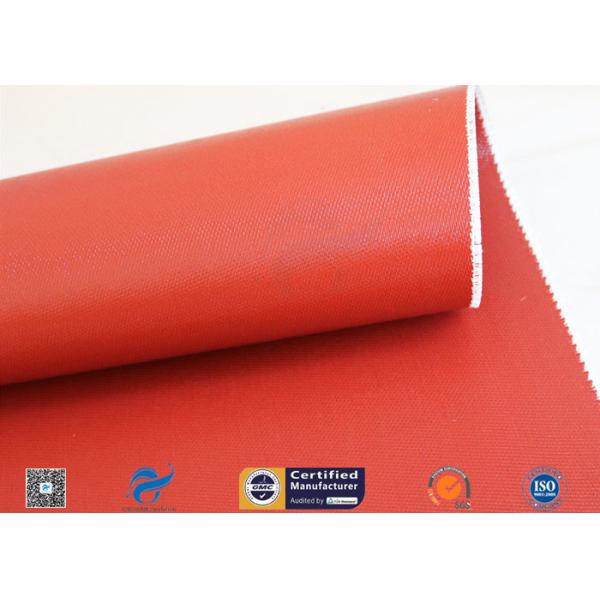

1010g/m2 silicone coated fiberglass fabric is made of 850g/m2 0.8mm fiberglass cloth which is woven in satin weaving type. The coating is red Silicone on two sides, 80/80g. In order to great surface application, we will add glitter in the silicone coating so the final surface will be more bright and glossy. E-glass fiberglass cloth has fire resistance, chemical resistance and high tensile strength. So the total weight of silicone coated fabric is 1010g/m2, thickness is 1mm.

Fiberglass fabric is able to withstand heat below 550℃ continuously. The silicone coating can be used below 260 degree Celsius. It is fire resistant, abrasion resistant and electrical insulation. Silicone coated fiberglass fabric is widely used for fire blanket, fabric expansion joints, engine insulation part, insulation jacket for generator and engines.

Specification :
Item Silicone Coated Fiberglass Cloth
Basic Cloth 850G Fiberglass Fabric
Weaving 8H Satin
Thread Count 20/11
Weight 1010g/m2
Thickness 1mm
Width 1.27m
Temperature

Silicone Coating below 260℃


Features:

  • Heat insulation
  • Fire resistant
  • Shiny surface
  • Tear resistant
  • Abrasion resistant
  • Electrical insulation

Application:

  • Fire blanket
  • Welding curtain
  • Hot tunnel fabric
  • Fabric expansion joints
  • Removable thermal insulation jacket

Pictures:

Silicone Coated Fiberglass Fabric Thermal Insulation Materials 1010GSM 51Silicone Coated Fiberglass Fabric Thermal Insulation Materials 1010GSM 51
