Specifications
Brand Name :
Unionfull
Model Number :
UPEAL-8784
Certification :
ISO9001:2008, SGS;TUV
Place of Origin :
Zhejiang, China
MOQ :
500 meters
Price :
$2.3--$3.85/m2
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
40,000 Square Meters Per Day
Delivery Time :
20 working days after receiving payment
Packaging Details :
50m one roll in woven fabric
Basic :
850g Fiberglass
Weight :
880g/m2
Thickness :
0.9mm
Width :
100cm
Density :
18 / 13
Foil Thickness :
7u, 18u, 25u, 50u max
Description

Silver Heat Reflective 0.9mm Aluminium Foil Fiberglass Fabric Pipe Insulation


Basic cloth of this 0.9mm silver coated fabric is 850g/m2 fiberglass fabric woven in satin weave. The silver aluminium foil is laminated on the fiberglass by high temperature adhesive. The total weight is 880g/m2 and total thickness is 0.9mm. Thickness of aluminium foil can be 7u, 18u, 25u and 50u max. Basic fiberglass fabric is able to withstand 550℃ (1022℉). With properties like heat insulation, fire resistance, chemical resistance and anti UV, corrosion. The silver foil makes the fabric with a heat reflective surface which can protect it from 95% heat.

The adhesive for foil can be ued below 300℃ continuously. This silver fabric is widely used in industrial fields for fire blanket, pipe protection, safe wear, sparks splasher shield cover.

Data Sheet

Material Aluminium Foil Fiberglass Fabric
Weave Satin
Thread Count 18/13 per cm
Total Weight 880g/m2
Thickness 0.9 mm
Aluminium Foil 7micron/ 18micron/ 25micron

Tensile Strength

(N/5cm)

 8000/6000
Width 100cm, 125cm, 155cm
Temperature

Fiberglass cloth: ≤550℃

Adhersive: ≤300℃



Features

  1. Heat reflective
  2. Waterproof
  3. Durable
  4. Chemical resistant
  5. Electrical Insulation
  6. Anti corrosion


Application

  • Welding protection
  • Gas, oil pipe warp material
  • Safety workwear
  • Construction heat insulation
  • Automotive application
  • Removable thermal insulation jacket

Pictures

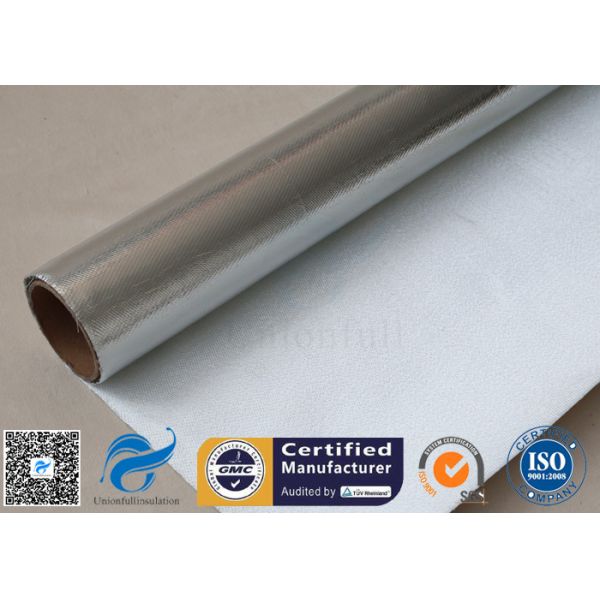

Heat Reflective 0.9mm Aluminium Foil Fiberglass Silver Coated Fabric Pipe Insulation
