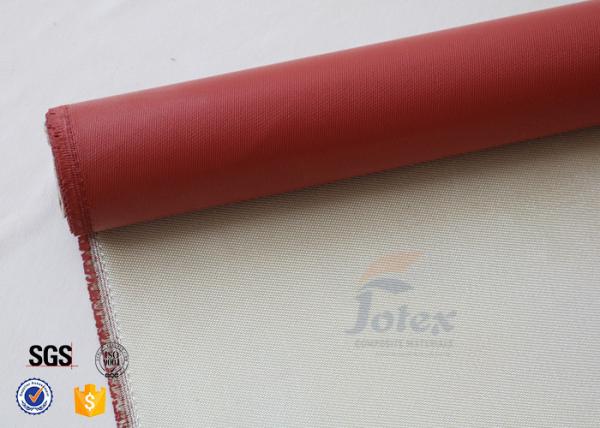

0.8mm Red Silicone Coated High Silica Fabric Thermal Insulation Material
0.8mm Red Silicone Coated High Silica Fabric Thermal Insulation Material
0.8mm Red Silicone Coated High Silica Fabric Thermal Insulation Material
0.8mm Red Silicone Coated High Silica Fabric Thermal Insulation Material
0.8mm Red Silicone Coated High Silica Fabric Thermal Insulation Material
0.8mm Red Silicone Coated High Silica Fabric Thermal Insulation Material
0.8mm Red Silicone Coated High Silica Fabric Thermal Insulation Material
0.8mm Red Silicone Coated High Silica Fabric Thermal Insulation Material
Specifications
Brand Name :
Unionfull
Model Number :
JT8600SR-S100-100
Certification :
ISO9001:2008,SGS
Place of Origin :
China
MOQ :
500 Meters
Price :
$6.75---$6.99/m2
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
100000 Square Meters Per Day
Delivery Time :
20 Working Days After Payment
Packaging Details :
Woven bag, then carton
Base Cloth :
96% Silica cloth
Weight :
700gsm
Thickness :
0.8mm
Color :
Red
Weave :
Satin Weave
Width :
1000mm
Description

0.8mm Red Silicone Coated High Silica Fabric Thermal Insulation Materials



High silica cloth is a fiberglass fabric which has treated with silica calcination. Silica cloth is inorganic fabric which with above 96% content of SiO2, so it was called high silica cloth. After coating with red silicone/rubber on its single side or both two sides. Silicone coated silica cloth combines the great properties of silicone coating and high temperature resistant silica cloth. It makes the silicone coated high silica cloth a fire resistant, high strength, chemical resistant and corrosion resistant thermal insulation material. Silica cloth can withstand 1200℃ heat for the time being. For continuous insulation, it can be used below 800℃. The silicone coating side can resist heat from 260 to 300℃. What's more, silicone coating provides electrical insulation.

Based on its insulation and durablity properties, silicone coated high silica cloth can be used for removable thermal insulation jacket, welding sparks protection, fire blanket and other fireproof cover.

Data Sheet Of JT8600SR-S100-100:

Item Silicone Coated High Silica Cloth
Material Glass Fibers
Weave Satin(8HS)
Warp Density 18 Ends/CM
Weft Density 13 Ends/CM
Total Weight 700g/m2
Thickness 0.8mm
Width 100cm
Working Temperature

Coating ≤260℃
Base Cloth ≤800°C


Features:

  • chemical corrosion resistant
  • waterproof, oil resistant
  • flexible, durable, abrasion resistant
  • electrical insulation
  • high temperature resistant, can be used below 800°C


Application:

  1. High temperature cover
  2. Welding protective blanket - sparks, splash shield
  3. Protective working wear
  4. Aerospace equipment thermal insulation

  5. Oil, gas, pipeline fire protection

  6. removable thermal insulation blanket for generator
