0.5mm 530gsm Grey Silicone Coated Fiberglass Fabric Plain Weave Heat Insulation
0.5mm 530gsm Grey Silicone Coated Fiberglass Fabric Plain Weave Heat Insulation
0.5mm 530gsm Grey Silicone Coated Fiberglass Fabric Plain Weave Heat Insulation
0.5mm 530gsm Grey Silicone Coated Fiberglass Fabric Plain Weave Heat Insulation
0.5mm 530gsm Grey Silicone Coated Fiberglass Fabric Plain Weave Heat Insulation
0.5mm 530gsm Grey Silicone Coated Fiberglass Fabric Plain Weave Heat Insulation
0.5mm 530gsm Grey Silicone Coated Fiberglass Fabric Plain Weave Heat Insulation
0.5mm 530gsm Grey Silicone Coated Fiberglass Fabric Plain Weave Heat Insulation
Specifications
Brand Name :
Unionfull
Model Number :
UPSE-8732S100
Certification :
ISO9001:2008, SGS;TUV
Place of Origin :
China
MOQ :
500 Meters
Price :
$2.5-3.5/ Square Meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
100,000 square meters per day
Delivery Time :
15 days after payment
Packaging Details :
50 meters one roll, one roll in poly bag
Base Cloth :
430gsm
Weight :
530g/m
Yarn :
E-glass
Weave :
Satin
Silicone Coating :
100g
Standard Width :
1 meter
Description

0.5mm 530gsm Plain Weave Heat Insulation Silicone Coated Fiberglass Fabric


Basic fabric is 430g/m2 0.43mm e-glass woven fiberglss cloth in satin weave. Its single side is coated with 100gsm grey silicone. Fiberglass fabric is tear resistant and fire resistant materials. The silicone coating improved its abrasion resistance and electrical insulation properties.

The basic fiberglass cloth is able to withstand 550℃. Silicone coating can be used from -50℃ to 260℃. This fabric is used to produce removable thermal insulation blanket, fire blanket, curtains and fabric expansion joints.

Fiberglass Fabric:

Thickness: 0.2~3 mm

Width: 1000~1550 mm

Length: 50m/roll

Coating: 40g,60g,80g,100g,120g,150g,200g etc

Strength: 1600~3700 N/50mm

Flammability: ≤25%

Color: Gray, Red, Blue, Yellow, Orange, Black

Coating Side: 1 or 2


Specification
Item Silicone Coated Fiberglass Fabric
Material E-glass Fiberglass
Weave Type Satin
End(per cm) 20/11
Mass Per Unit 530g/m2 (430+100)
Thickness 0.5mm
Width 100cm
Temperature

Silicone Coating below 260℃

Cloth below 550℃

Feature:

  • Firproof, thermal insulation
  • Chemical resistant
  • Electrical insulation
  • Durable, tear resistant


Application

  • Thermal insulation blanket
  • Fabric expansion joint
  • Fire blanket
  • Auto heat insulation
  • Fireproof cover

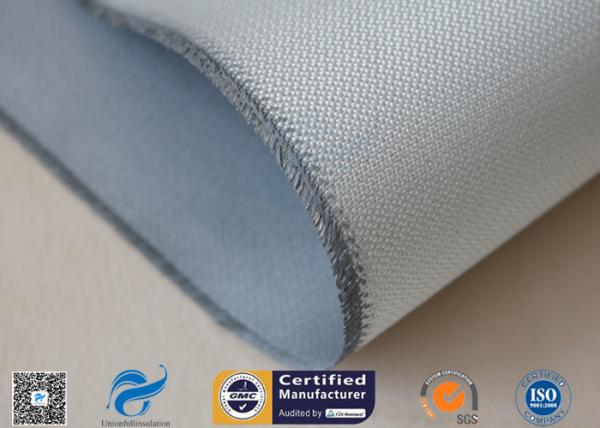

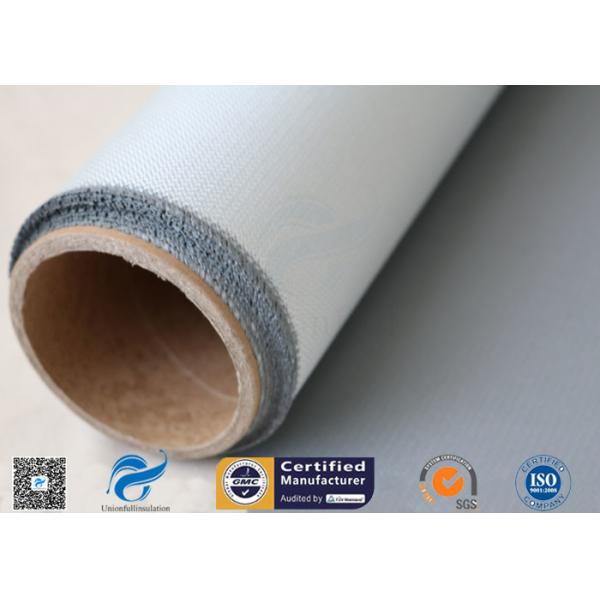

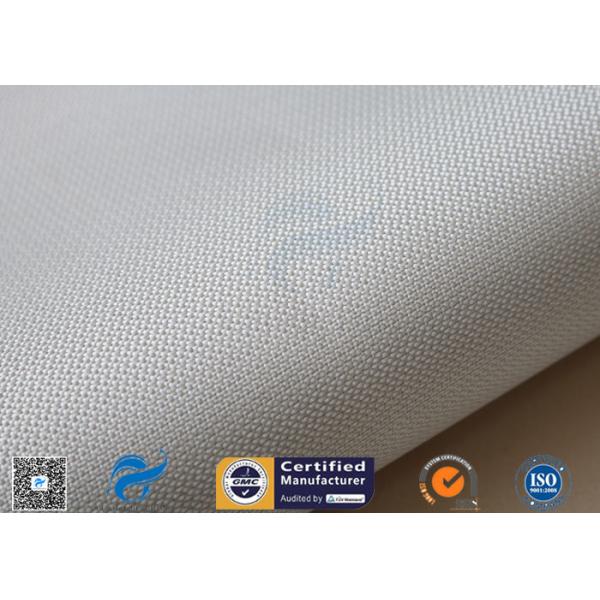

Detail Pictures

0.5mm 530gsm Grey Silicone Coated Fiberglass Fabric Plain Weave Heat Insulation0.5mm 530gsm Grey Silicone Coated Fiberglass Fabric Plain Weave Heat Insulation
