Specifications
Brand Name :
Unionfull
Model Number :
UNP8580TMB-44-220
Certification :
ISO9001:2008, SGS;TUV
Place of Origin :
China
MOQ :
100 meters
Price :
$4.6--10 / sqaure meter
Payment Terms :
L/C, D/A, D/P, Western Union, T/T
Supply Ability :
40,000 Square Meters Per Day
Delivery Time :
2 weeks after receiving payment
Packaging Details :
1 roll in carton
Material :
Fiberglass Open Mesh
Coating :
PTFE
Level :
Food Grade
Weight :
480g/m2
Mesh Size :
4x4mm
Width :
2200mm
Description

4X4MM PTFE Coated Fiberglass Mesh Fabric Conveyor Belt 450GSM 2.2M

4X4MM PTFE Coated Fiberglass Mesh Fabric Conveyor Belt 450GSM 2.2M

Conveyor belt mesh fabric is made of fiber glass open mesh impregnated with black color food grade PTFE. Open mesh size are 1mmx1mm, 2mmx2.5mm, 4mmx4mm and 10mmx10mm. Common used open mesh size is 4x4mm. This black color 4x4mm mesh fabric is weighed at 480g/m2 (14.16oz). Fiberglass open mesh is high strength, durable, abrasion resistant, oil&chemical resistant. Due to its heat&flame resistant, non stick and non toxic properties, PTFE coated fiberglass mesh fabric is widely used in food industry.

Continuous heat resistant temperature of PTFE fiberglass open mesh conveyor belt is -50 to 260℃. With non stick PTFE coating, chemical agents like silicone rubber won't stick on the mesh belt. After using, it is easy to be cleaned by soapy water.

Features

  • heat resistant, - 50°C to 260°C
  • high tensile strength, durable
  • light weight, tear resistant
  • non stick, washable
  • chemical agents&oil resistant
  • anti UV, weather

Specification

Edge Reinforcement: PTFE film or PTFE coated fiberglass fabric

Common Joint: bull nose joint

Mesh Size Material Thickness Weight Temperature Max Width
1x 0.5mm Fiberglass 0.65mm 560g /m 2 -70 -260 ℃ 3.25m
1x 1mm Fiberglass 0.65mm 520g /m 2 -70 -260 ℃ 3.55m
2x 2.5mm Fiberglass 0.7mm 640g /m 2 -70 -260 ℃ 3.65m
4x 4mm Fiberglass 1.0mm 580g /m 2 -70 -260 ℃ 4.2m
4x 4mm Fiberglass 1.3mm 740g /m 2 -70 -260 ℃ 3.85m
10x 10mm Fiberglass 0.9mm 415g /m 2 -70 -260 ℃ 3.55m
4x 4mm Kevlar+Fiberglass 1.5mm 934g /m 2 -70 -260 ℃ 2.75m
4x 4mm Kevlar 1.2mm 600g /m 2 -70 -260 ℃ 4m

Applications

  • Tortilla presses
  • Heat resistant conveyor belt
  • Dryer belt replacement
  • Side and base sealing auto pack machines
  • Screen printing conveyor dryer
  • Conveyor belt heat resistant

Pictures

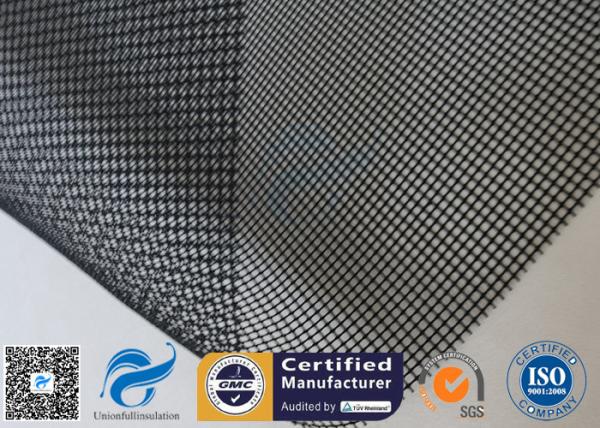

4X4MM PTFE Coated Fiberglass Mesh Fabric Conveyor Belt 450GSM 2.2M
