25oz Sliver Aluminium Foil Laminated Fiberglass Fabric Non Combustible
25oz Sliver Aluminium Foil Laminated Fiberglass Fabric Non Combustible
25oz Sliver Aluminium Foil Laminated Fiberglass Fabric Non Combustible
25oz Sliver Aluminium Foil Laminated Fiberglass Fabric Non Combustible
25oz Sliver Aluminium Foil Laminated Fiberglass Fabric Non Combustible
25oz Sliver Aluminium Foil Laminated Fiberglass Fabric Non Combustible
25oz Sliver Aluminium Foil Laminated Fiberglass Fabric Non Combustible
25oz Sliver Aluminium Foil Laminated Fiberglass Fabric Non Combustible
25oz Sliver Aluminium Foil Laminated Fiberglass Fabric Non Combustible
25oz Sliver Aluminium Foil Laminated Fiberglass Fabric Non Combustible
Specifications
Brand Name :
Unionfull
Model Number :
UPCAL-8784
Certification :
ISO9001:2008; SGS;TUV
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000m2 Per Day
Delivery Time :
2 weeks after receiving payment
Packaging Details :
One roll in woven bag
Basic fabric :
Fiberglass fabric
Surface treatment :
aluminium foil
Weight :
880g/m2
Construction :
AL + fiberglass + PE
Thickness :
0.85mm
Reflectivity :
95 - 97%
Temperature :
≤300℃
Loading :
Shanghai
Description

Non Combustiable 25oz Sliver Aluminium Foil Laminated Fiberglass Fabric

Description:

Fiberglass fabric coated with aluminium foil has excellent properties such as smooth surface on the aluminum foil, strong light reflection, good stretching resistance in length and breadth, non-breath ability, non-water permeability, good hermetic and weather resistance.

Temperature resistant:

Fiberglass fabric: ≤550℃

Adhesive: ≤300℃

Aluminium foil: ≤300℃

Data sheet Of Basic Fabric:

Type

 C-glass/E-glass

Item No.

 UPSE-8784

Thickness

 0.8mm 0.032inch

Weight

 850g/m2 25oz/yd2

Yarn weft/warp

 ECG37 1/4,ECG37 1/5 ECG37 1/4,ECG37 1/5

Construction weft/warp

 8/6 ends/cm 8/6 ends/cm

Temperature resistant

 ≤500℃ ≤932℉

Tensile strength

 2600/2400(N/50mm)

Data sheet Of UPCAL-8784:

Item

Aluminum Foil Fiberglass Fabric

Thickness

 0.85mm

Width

 1 m, 1.2 m, 1.5 m

Weight

 880g/m2

Weave

 Satin

Glass Yarn Type

 E-Glass/ C-Glass
Advantages

95% radiant thermal reflective,

Non-breath ability,Non-water permeability

Advantage

1.Smooth surface on the aluminum foil
2.good stretching resistance in length and breadth
3.Low thermal conductivity and superior heat insulation;

4.Keeps warmth in during winter and cools in summer

5.Good fire resistance can be rated IMO part 5

6.95% heat reflection

7.Moisture barrier,water-proof, fire-retarding and anti-corrosion

8.Light weight and easy to handle

Main Application:

1.Used as the protective layer of super glass wool with excellent functions of fire-resistance, anti-corrosion, heat isolation and heat protection and sound absorption, sound-proof materials in construction.
2.Heat insulation, sound absorption and noise reduction for car, train, refrigerator car and laboratory; moisture proof cushion for traveling

3.Packing for special products and cold storage

4.Making protective wear- gloves, covers

5.Wrapping materials of oil transportation pipelines and the steam pipelines in the petrochemical industry, ducting with the same effects as mentioned above

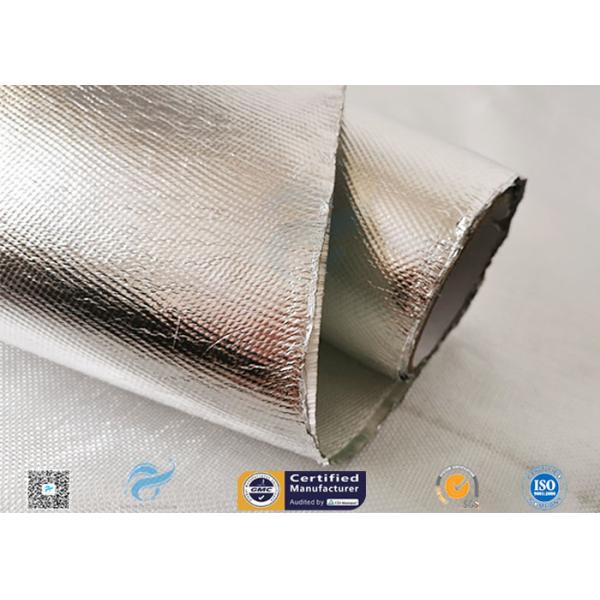

Pictures:

25oz Sliver Aluminium Foil Laminated Fiberglass Fabric Non Combustible25oz Sliver Aluminium Foil Laminated Fiberglass Fabric Non Combustible
