Specifications
Brand Name :
Unionfull
Model Number :
UPS-8120-92
Certification :
ISO9001-2008; SGS;TUV
Place of Origin :
China
MOQ :
100mters
Price :
6.98~8/m
Payment Terms :
L/C, T/T, Western Union,
Supply Ability :
8000m2 Per Day
Delivery Time :
10~15days after got payment
Packaging Details :
Woven bag, carton
Weave :
12HS
Weight :
1050g/m2
Thickness :
1.3mm
SiO2 content :
80~90%
Width :
92cm,100cm and 105cm
Color :
Brown
Description

Brown 31oz Silica Fabric 800℃ Working Temperature 0.05" Thick Fireproof Curtain

With 80-90% silicone contents, 1200gsm silica fabric is able to withstand heat at a high temperature of 1480℉ (800°C) continuously. This fireproof cloth peroforms better than 1050℉ (550℃) e-glass fiberglass fabric. Compared with same strength materials, silica fabric is easier to fabricate and more sofeness.
It is an ideal replacement for asbestos and applied for thermal and electrical insulation in harsh environments.
Silica fabric has two kinds of weave. It can be treated in different ways in order to meet specific purposes. Main products: fireproofing blanket, fireproof curtain, fireproof garments and heat-proof mat.

Standard width of this woven silica fabric is 91.44cm (36 inches), thickness of UPS-8120-92 is 1.3mm(0.05"), area weight at 1050g/m2(31oz/yd2). Its main application includes eat and flame shielding, heat resistant equipment, foundries and power generation, protective material for welding, dust collecting and filtration.

Main Specifications

Code

Weight

(g/m2)

Thickness

(mm)

Width(mm)ColorType

UPS-860-92

5000.6920Brown,whiteSatin 8HS

UPH-860-92

6000.7920Brown,whiteSatin 8HS

UPS-8120-92

10501.3920Brown,whiteSatin 12HS

UPH-8120-92

11501.3920Brown,whiteSatin 12HS

UPH-860-100

6500.71000Brown,whiteSatin 8HS

UPH-8120-100

12501.51000Brown,whiteSatin 12HS


Product specification:

Items Silica Cloth
SiO280~90%
Area Weight1050g/m2, 31oz/yd2
Thickness1.3mm/0.05inch
ColorBrown
Weave Type12HS
Width92cm/36 inches
Long time working temperature service1480℉(800°C)


Properties:
1.Low thermal conductivity
2.Non-asbestos, without pollution
3.Good electrical insulation
4.Shiny, soft but tough
5.Highly heat resistant
6.96% silicone dioxide
7.Soft point up to 1000℃, long period service at 800℃
8.Good process performance
Applications:
1.Dust collecting and filtration equipment
2.Molten metal splash protection
3.Heat and flame shielding,stress relief,insulation
4.Hose and cable protection and emergency fire blankets
5.Protective material for welding
6.Aircraft firewall insulation
7.Removable insulation jacket

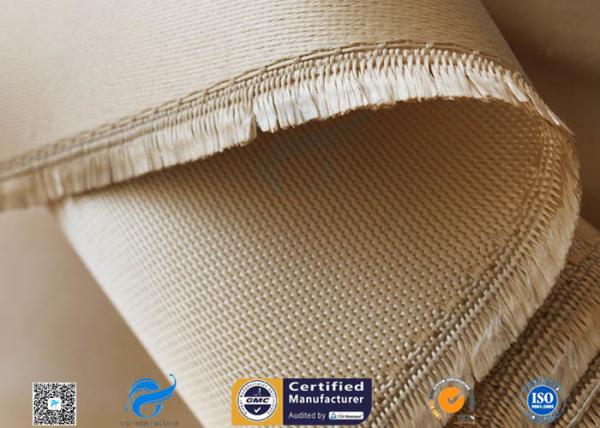

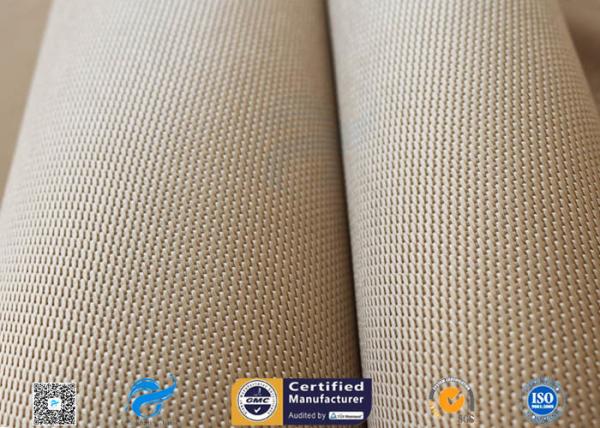

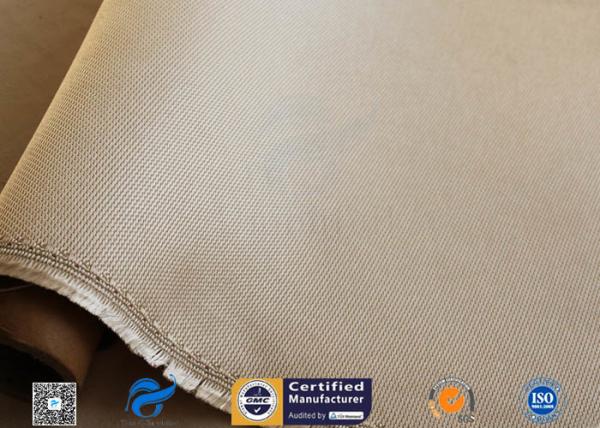

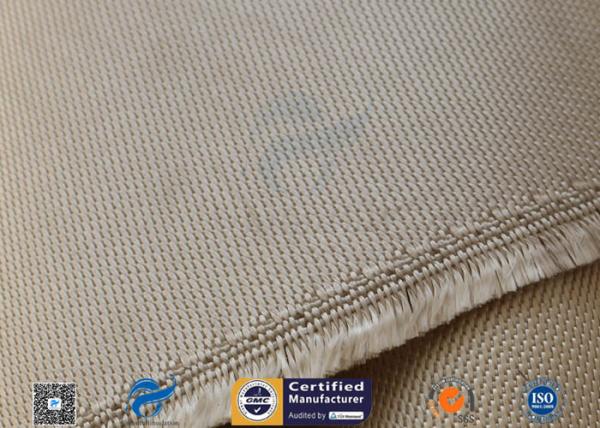

Product picture:
Brown 31oz Silica Fabric 800℃ Working Temperature 0.05Brown 31oz Silica Fabric 800℃ Working Temperature 0.05
