Heat Resistant Red Silicone Coated Fiberglass Cloth Double Sides 1.3mm
Heat Resistant Red Silicone Coated Fiberglass Cloth Double Sides 1.3mm
Heat Resistant Red Silicone Coated Fiberglass Cloth Double Sides 1.3mm
Heat Resistant Red Silicone Coated Fiberglass Cloth Double Sides 1.3mm
Heat Resistant Red Silicone Coated Fiberglass Cloth Double Sides 1.3mm
Heat Resistant Red Silicone Coated Fiberglass Cloth Double Sides 1.3mm
Heat Resistant Red Silicone Coated Fiberglass Cloth Double Sides 1.3mm
Heat Resistant Red Silicone Coated Fiberglass Cloth Double Sides 1.3mm
Specifications
Brand Name :
Unionfull
Model Number :
UPSH-8120D200
Certification :
ISO9001:2008,SGS,UV
Place of Origin :
China
MOQ :
500 Meters
Price :
$3.25--5.8/M2
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 square meters per day
Delivery Time :
26 Working Days
Packaging Details :
1 Roll with 1 Woven Bag
Item :
high silica fabric
Yarn type :
E-Glass
Coating :
Silicon Coated
Width :
920mm
Weight :
1450g/m2
Thickness :
1.3mm
Description
Heat Resistant Double Sides Red Silicone Coated High Silica Fabric
Product Introduction
High silica Silicone coated fiberglass fabric/cloth is glass fiber as reinforcement of silicone elastomeric material and high molecular polymer, also known as thermal silicone cloth, anti tearing silicone. the silica gel cloth can effectively reduce the thermal resistance between the electronic component and the radiator. It has good characteristic of electrical insulation, high dielectric strength, good thermal conductivity, high resistance chemical properties, in addition, It can withstand problem of short circuit of high voltage and metal piercing , and is an excellent thermal conductive insulation material to instead of the traditional mica and silicone grease.
Data
Thread count wrap 16.5end/cm
Thread count weft 13.8end/cm
Width 920mm
Roll length 50m
Weight 1450g/m2
Weave Satin
Impregnated Silicone
Color red
Thickness 1.3mm
Advantages
1. Dielectric strength high
2. Good thermal conductivity
3. Good toughness, tear resistance
4. Surface soft, no viscosity on surface
5. High voltage insulation performance
Applications
1. Military, aviation
2. Large power source
3. Heating power device
4. Automobile electronic heating module
5. Motor control, communication equipment

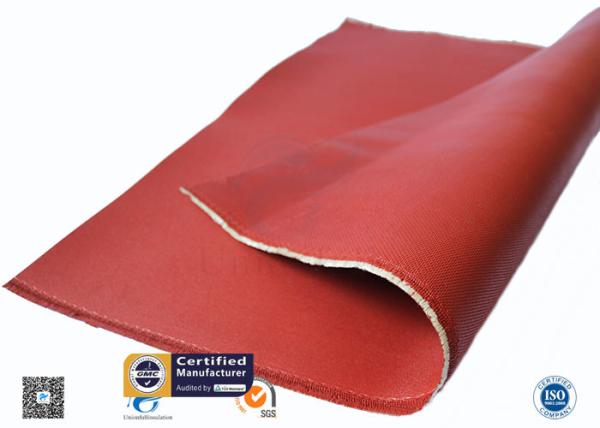

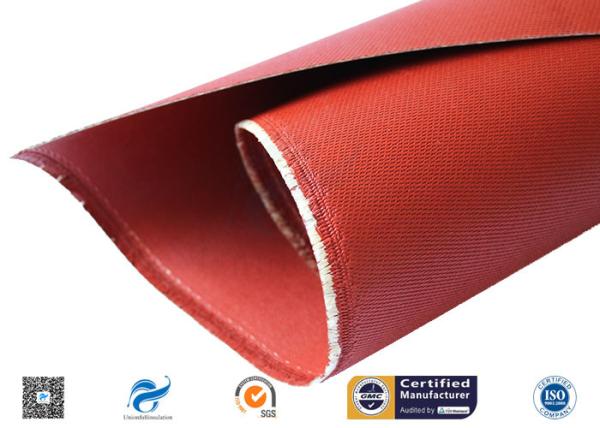

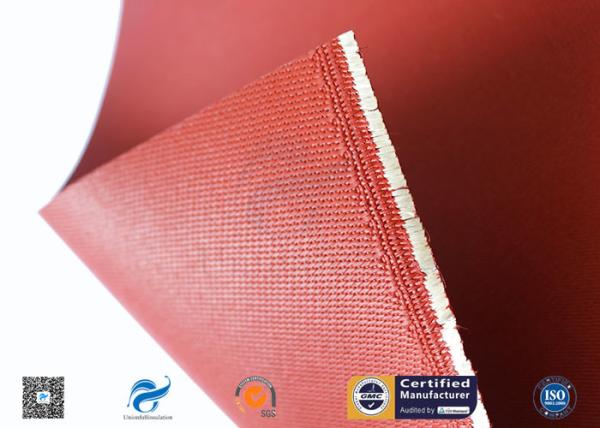

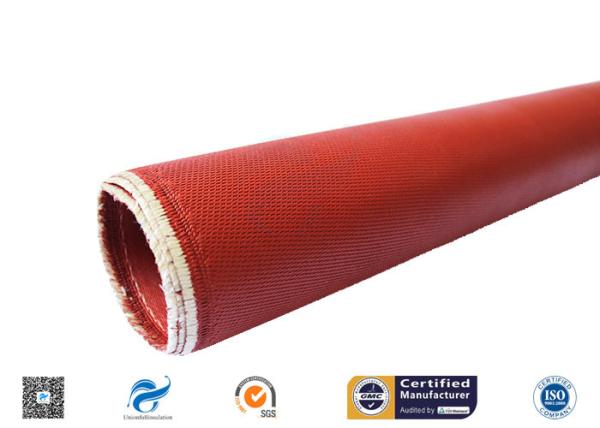

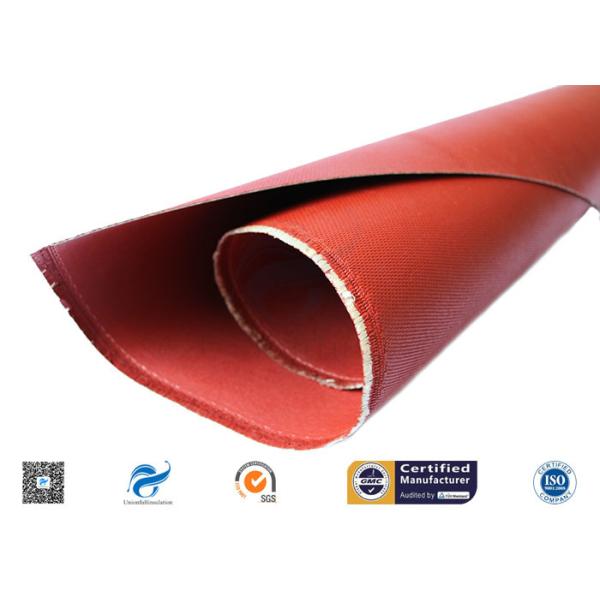

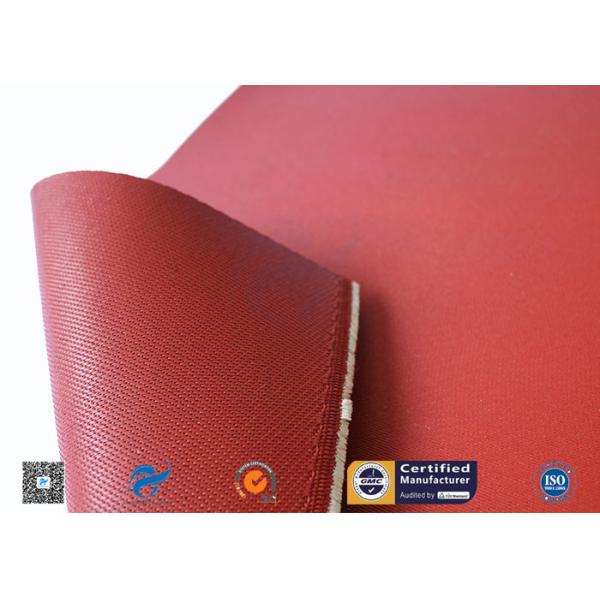

Pictures
Heat Resistant Red Silicone Coated Fiberglass Cloth Double Sides 1.3mmHeat Resistant Red Silicone Coated Fiberglass Cloth Double Sides 1.3mm
