0.46 mm Red Fire Resistance Insulation Silicone Coated Glass Fiber Fabric
0.46 mm Red Fire Resistance Insulation Silicone Coated Glass Fiber Fabric
0.46 mm Red Fire Resistance Insulation Silicone Coated Glass Fiber Fabric
0.46 mm Red Fire Resistance Insulation Silicone Coated Glass Fiber Fabric
0.46 mm Red Fire Resistance Insulation Silicone Coated Glass Fiber Fabric
0.46 mm Red Fire Resistance Insulation Silicone Coated Glass Fiber Fabric
0.46 mm Red Fire Resistance Insulation Silicone Coated Glass Fiber Fabric
0.46 mm Red Fire Resistance Insulation Silicone Coated Glass Fiber Fabric
Specifications
Brand Name :
Unionfull
Model Number :
UPSE-8732D160
Certification :
ISO, RoHS
Place of Origin :
China
MOQ :
500m2
Price :
usd3~4/m2
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000m2/Month
Delivery Time :
15days after receive the payment
Packaging Details :
50 meters per roll, 20 rolls one pallet
Material :
Fiberglass Fabric
Alkali content :
Alkali Free
Width :
1.5 Meter Coated Fiberglass Fabric
Area Weight :
590g/sqm
Usage :
Fire Resistant, Flame Resistant
Standing temperature :
From -50℃ To 500℃
Description

0.46 mm Red Fire Resistance Insulation Silicone Coated Glass Fiber Fabric

Introduce

Silicone coated fiberglass fabric is a kind of high performance and multifunction composite materials, it's widely used in Aerospace, Chemical, Petroleum, Large Power Generation Equipment, Machinery, Metallurgy, Electrical Insulation, Building, Transportation and other fields.

Data

Weight 590 g/m2
Thickness

0.46mm
Width 1000mm 1200mm 1500mm
Coated Silicone 2 sides
Color Red
Fire resistance Good
Working temperature Basic fabric 550 ºC, Silicone coating 260 ºC.
Pattern Satin
Yarn warp EC9 68 1*2
Yarn weft EC9 68 1*2
Construction warp 18±1 ends/cm
Construction weft 12.6±1 ends/cm
Fiberglass E -Glass

Features

1. Excellent heat and cold resistance (long-term working temperature from -70 to 260℃

2. Good aging resistance

3. High strength

4. Chemical acid and alkali resistant

Main Applications

* Heat/electrical insulation jacket

* Laminated mat

* Flexible duct connector

* Hot air blower

* Flexible duct

* Non-metal compensator or Fabric expansion joints

* Fireproof curtain & blanket

* Welding blanket

* Construction electrical protection cover

* Other fire-control systems

Pictures

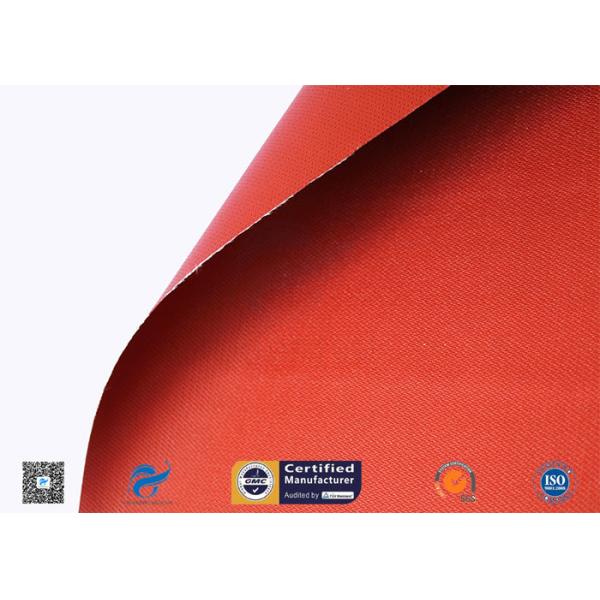

0.46 mm Red Fire Resistance Insulation Silicone Coated Glass Fiber Fabric

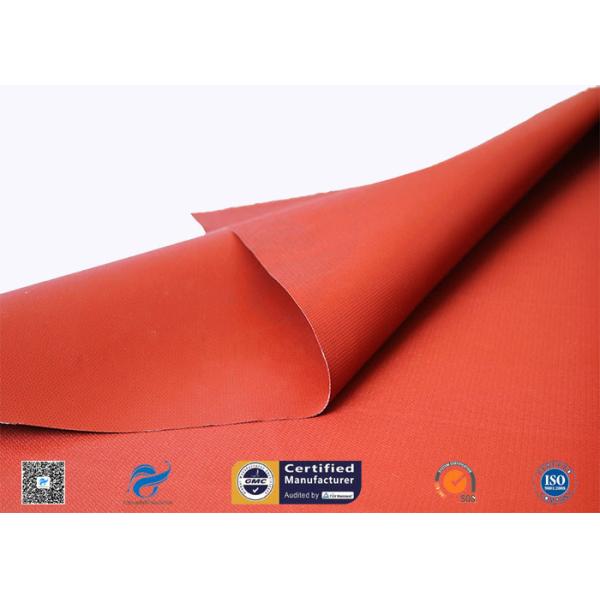

0.46 mm Red Fire Resistance Insulation Silicone Coated Glass Fiber Fabric

Contact us directly, we'll be happy to serve you ---- Unionfull Group Ltd.
