Wall Mount FTTH Fiber Optic Termination Box , Indoor Plastic ABS PC 2 Ports Fiber Optic Box
Wall Mount FTTH Fiber Optic Termination Box , Indoor Plastic ABS PC 2 Ports Fiber Optic Box
Wall Mount FTTH Fiber Optic Termination Box , Indoor Plastic ABS PC 2 Ports Fiber Optic Box
Wall Mount FTTH Fiber Optic Termination Box , Indoor Plastic ABS PC 2 Ports Fiber Optic Box
Wall Mount FTTH Fiber Optic Termination Box , Indoor Plastic ABS PC 2 Ports Fiber Optic Box
Wall Mount FTTH Fiber Optic Termination Box , Indoor Plastic ABS PC 2 Ports Fiber Optic Box
Wall Mount FTTH Fiber Optic Termination Box , Indoor Plastic ABS PC 2 Ports Fiber Optic Box
Wall Mount FTTH Fiber Optic Termination Box , Indoor Plastic ABS PC 2 Ports Fiber Optic Box
Specifications
Brand Name :
YINGDA
Model Number :
FTB104F
Certification :
ISO
Place of Origin :
china
MOQ :
500PCS
Price :
0.18USD-4.29USD
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Delivery Time :
5-7days
Packaging Details :
1pc/box，100pcs/carton box
color :
gray
type :
mini fiber access terminal
cable port :
2in,4out
material :
ABS
max. fusion :
12fibers
max adapter :
4pcs SC LC ST FC
application :
FTTH wall mounted
dimension :
152*107*31mm
customer logo :
ok
sample :
ok
Description

Indoor Plastic 12Cores FTTH Fiber Optic Termination Box, ABS PC 2 Ports Wall Mount Fiber Optic Box

Model:FTB104F

FTB104F Fiber optic terminal box is designed specially for FTTx application, which suits for jointing fibers pigtail and it protects fiber optic splices and helps to distribute, it can use variety of adapters maximum 4pcs.

Application

  • FTTX
  • Telecommunications
  • CATV network
  • LAN,WAN network

Features

  • Made of high strength plastic, good quality and outer appearance
  • Light weight, compact size
  • Clip lock and open without screws, make it easy installation or repair
  • Indoor wall mounted with screws
  • Max. 12fibers fusion
  • Max. 4pcs SC/FC/LC/ST adapters
  • Pre-terminated pigtails or adapters is available.
  • OEM or sample is ok
  • 100% test at factory before shipment

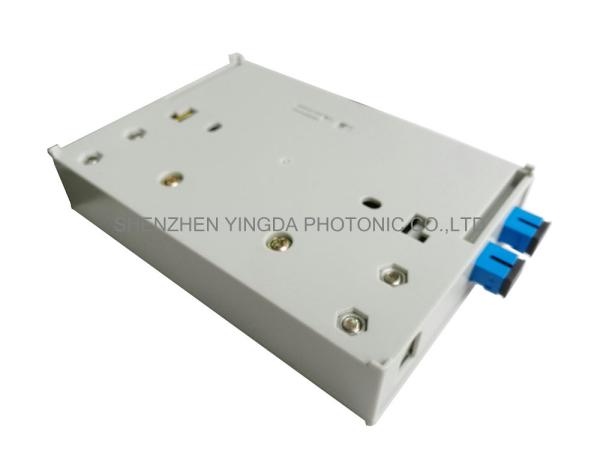

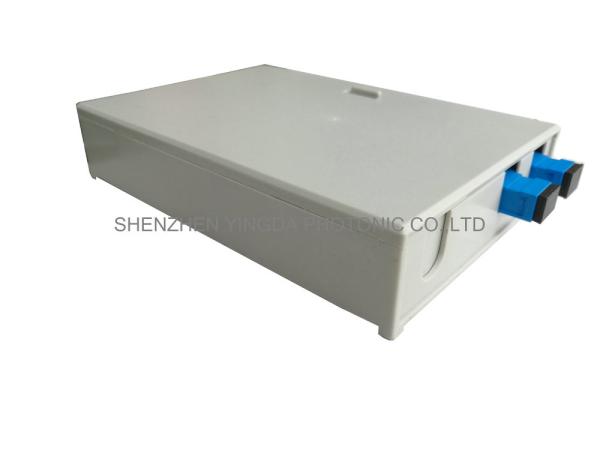

More pictures

Wall Mount FTTH Fiber Optic Termination Box , Indoor Plastic ABS PC 2 Ports Fiber Optic BoxWall Mount FTTH Fiber Optic Termination Box , Indoor Plastic ABS PC 2 Ports Fiber Optic Box

  • wall mount holes with 2x expansion screws equipped
  • each box can use 2pcs SC adapter at front and back.
  • cable port:2in, 4out
  • box with clip lock design

Wall Mount FTTH Fiber Optic Termination Box , Indoor Plastic ABS PC 2 Ports Fiber Optic BoxWall Mount FTTH Fiber Optic Termination Box , Indoor Plastic ABS PC 2 Ports Fiber Optic Box

  • all metal parts are stainless steel
  • max. fusion 12fibers with splice holder,cable fixtures,etc

Specification

Model FTB104F
Dimension(mm) (LXWXH) 152x107x31
Cable port 2
Fiber count 12
Max.Pigtail 12
Max.Adapters 4
Material ABS
Color gray

Standard accessories

Wall Mount FTTH Fiber Optic Termination Box , Indoor Plastic ABS PC 2 Ports Fiber Optic BoxWall Mount FTTH Fiber Optic Termination Box , Indoor Plastic ABS PC 2 Ports Fiber Optic Box

Sand paper 1pcs
Nylon tie 4pcs
Heat shrinkable tube 6pcss
Wall mount expansion screws 2pcs
Drop cable clip 6pcs
Number mark 1set
